TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: TL740D-485-MODBUS

Document: TL740D ANGULAR GYRO SENSOR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces >=1 Pieces

Packaging Details: 1pcs angular sensor in each inner box , 100pcs /ctb

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month angular sensor to be sold

Get Best Price
Contact Now
Specifications
Highlight:

AGV MEMS Gyroscope Sensor

,

Anti vibration MEMS Gyroscope Sensor

,

DC AGV Gyro Sensor

Angular Sensor Resolution:
0.01°
Measuring Range:
Azimuth Angle (±180 °)
Acquisition Bandwidth:
>100 Hz
Nonlinear:
0.1% Of FS
Max Angle Rate:
150°/s
Working Temp.:
-40 ~ +85 ℃
Storage Temp.:
-40 ~ +85 ℃
Working Life:
10 Years
Angular Sensor Resolution:
0.01°
Measuring Range:
Azimuth Angle (±180 °)
Acquisition Bandwidth:
>100 Hz
Nonlinear:
0.1% Of FS
Max Angle Rate:
150°/s
Working Temp.:
-40 ~ +85 ℃
Storage Temp.:
-40 ~ +85 ℃
Working Life:
10 Years
Description

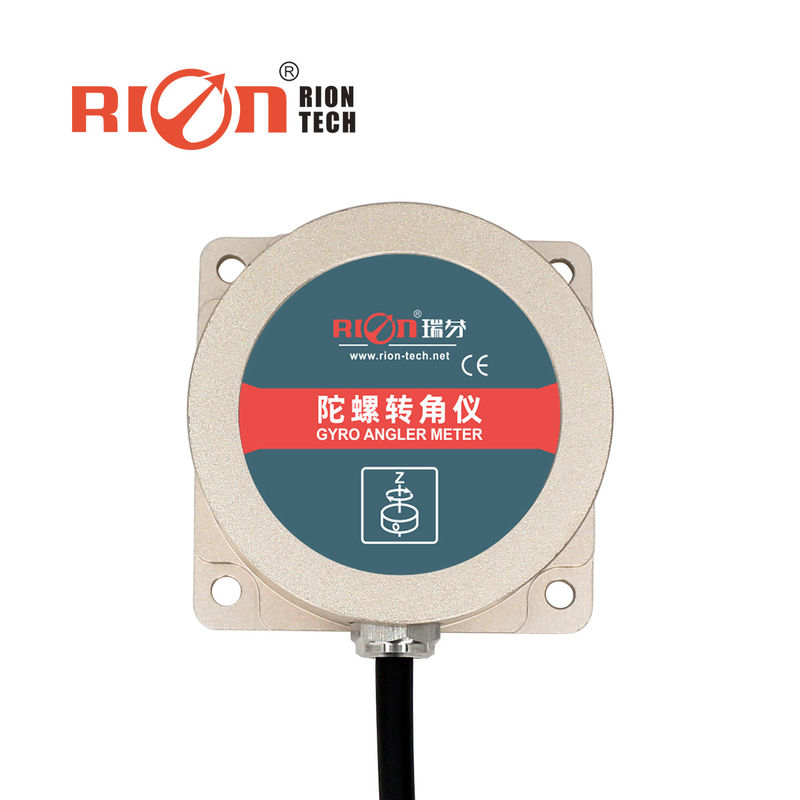

TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS

TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS​





This product is specially used for robot car, AGV vehicle relative heading orientation, attitude control and other related applications, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.



Key Features

  •  Azimuth angle output
  • Strong vibration resistance
  • Light weight
  • Long life,strong stability
  • Cost-effective
  • All solid state
  • Compact & light design
  • RS232/RS485 output optional
  • DC9~36V power supply



Application

  • AGV truck
  • Car Navigation
  • 3D virtual reality
  • Platform stability
  • Auto safety system
  • Turck-mounted satellite antenna equipment
  • Industrial control
  • Robot


Specification
TL740D Parameters
Measuring range relative heading Angle (±180°)
Acquisition bandwidth >100Hz
Resolution 0.01°
positional accuracy <2mm/m (converted from angle accuracy)
Nonlinear 0.1% of FS
Gyroscope zero bias stability (10s smooth) 10°/h
Max angle rate 150°/s
Acceleration range ±4g
Acceleration resolution 0.001g
Acceleration accuracy 5mg
Starting time 5s(Static)
Input Voltage DC9V~36V
Current 60mA(12V)
Working Temp. -40 ~ +85℃
Storage Temp. -40 ~ +85℃
Vibration 5g~10g
Impact 200g pk,2ms,½sine
Working life 10 years
Output rate 5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set
Output signal RS232 / RS485 / TTL (Optional)
MTBF ≥98000 hours /times
Insulation resistance ≥100 Megohm
Impact resistance 100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms / 10~1000Hz
Protecting IP67
Weight ≤170g (including 1 meter cable)








Size

TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS 2



TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS 3

TL740D AGV MEMS Gyroscope Sensor Anti Vibration MODBUS 4
