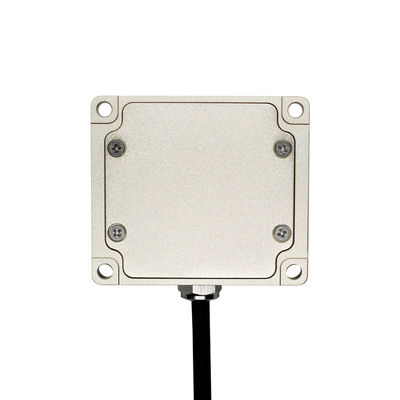

12V MEMS Three Axis Gyroscope RS232 Angular Speed Measure For Farm Vehicle

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: TL725D-485

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $60.00/Pieces 1-99 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

12V three axis gyroscope

,

RS232 three axis gyroscope

,

3 axes MEMS Gyros Sensor

Theory:
Other
Item:
Gyro Heading Sensor
Dimension:
62*54*20mm
Weight:
140g
Connector:
RS232/RS485
Power Supply:
9~36v
MTBF:
>50000 Hours/times
Zero Bias Instability Of Gyro:
4.0deg/h
Resolution:
0.01deg
Water Proof:
IP67
Usage:
Position Sensor
Port:
Shenzhen
Theory:
Other
Item:
Gyro Heading Sensor
Dimension:
62*54*20mm
Weight:
140g
Connector:
RS232/RS485
Power Supply:
9~36v
MTBF:
>50000 Hours/times
Zero Bias Instability Of Gyro:
4.0deg/h
Resolution:
0.01deg
Water Proof:
IP67
Usage:
Position Sensor
Port:
Shenzhen
Description
12V MEMS Three Axis Gyroscope RS232 Angular Speed Measure For Farm Vehicle

 Gyro Sensors for Agriculture Machinery Angular Speed Measure Compass Gyro For Farm Vehicle Heading Angular Sensor for Ve

Product Overview



Gyro Sensors for Agriculture Machinery Angular Speed Measure Compass Gyro For Farm Vehicle Heading Angular Sensor for Vehicle
▶ PRODUCT DESCRIPTION
TL725D is a gyroscope IMU specialized in navigation applications for agricultural machinery automatic driving, with built-in industrial grade three-axis gyroscope and three-axis accelerometer. The product can still output smooth posture data under the high vibration characteristics of agricultural machinery. Developed based on the company's latest MEMS inertial measurement platform, through the dynamic attitude algorithm of the angular rate of the gyroscope, the real-time output of the object's dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration and forward axial body acceleration data . This product is specially used for automated agricultural machinery, precise operation and efficiency, and is an essential component of a new generation of automated precision agricultural control.
FEATURES AT A GLANCE
★ Horizontal azimuth and attitude angle output
★ Real-time angular rate output
★ Long life and strong stability
★ Forward axis acceleration
★ Compact and lightweight design
★ RS232/RS485 output optional
★ All solid state
★ Light weight
★ DC9~36V power supply

12V MEMS Three Axis Gyroscope RS232 Angular Speed Measure For Farm Vehicle 0

PRODUCT SPECIFICATIONS
No
Item
Data
1
Three-axis attitude
Azimuth ±180°,Roll angle±180°,Pitch angle±90
2
Bandwidth
>100Hz
3
Resolution
300°/s
4
Nonlinear
300°/s
5
Gyro Range
300°/s
6
Zero bias instability of gyro (allan)
4.0°/h
7
Angle random walk coefficient (allan)
0.25 °/sqrt(h)
8
Accelerometer range
±4g
9
Acceleration resolution
0.001g
10
Acceleration accuracy
1mg
11
Startup time
250ms
12
Input voltage
+9~36V
13
Current
35mA(12V)
14
Working temp
-40 ~ +80℃
15
Vibration
5g~10g
16
Shock
200g pk,2ms,½sine
17
Weight
140g(without cable)
Application
★ Automated agricultural machinery ★ Precision agriculture
★ Combination Harvesters ★ Farming machine
