2000g Single Axis Tilt Sensor Industrial Mems Inclinometer Horizontal Mounting

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO

Model Number: SCA110-80

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 94 USD/pcs

Packaging Details: carton

Delivery Time: 7 days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

single axis tilt sensor

,

2000g single axis tilt sensor

,

industrial mems inclinometer

Wide Voltage Inpu:
9~36V
Output Interface:
0~5V
Small Size:
90*40*26mm
Highly Anti-vibration Performance:
>2000g
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Wide Voltage Inpu:
9~36V
Output Interface:
0~5V
Small Size:
90*40*26mm
Highly Anti-vibration Performance:
>2000g
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Description

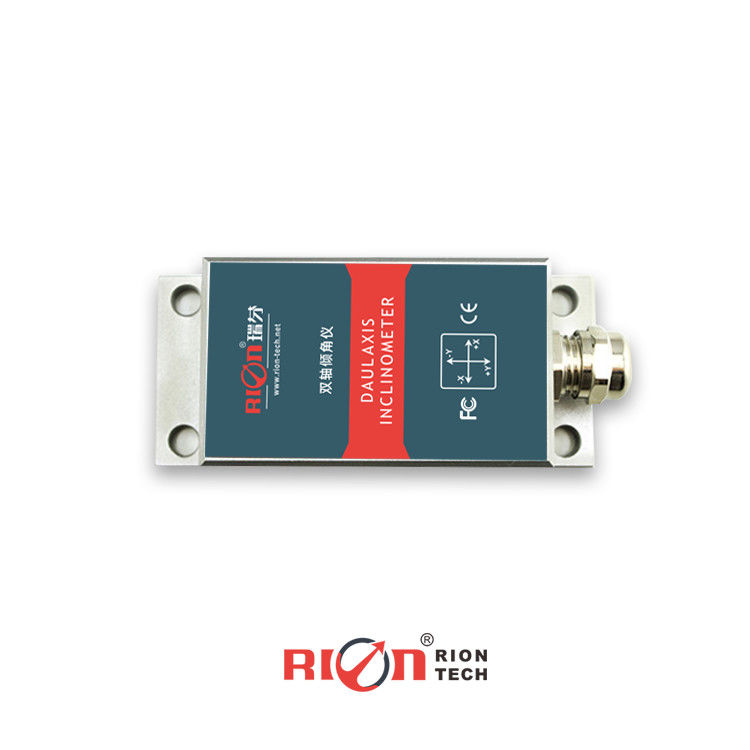

2000g Single Axis Tilt Sensor Industrial Mems Inclinometer Horizontal Mounting

SCA120 Single Axis Tilt Sensor Industrial Mems Inclinometer Horizontal Mounting



▶ MAIN FEATURE

★ Single/dual Axis Inclinometer ★ Measuring Range :±1~±180° optional

★ Wide voltage input: 9~36V ★ Output interface :0~5V

★ Wide temperature working: -40~+85℃ ★ Resolution: 0.01°

★ IP67 protection class ★ Highly anti-vibration performance >2000g

★ Small Volume : 90×40×26mm(customized)



 APPLICATION

★ Leveling of construction vehicles ★ Monitoring of bridges and Dadian

★ Safety protection of high-altitude platforms ★ Medical equipment angle control

★ Underground drilling rig attitude navigation ★ Shield pipe jacking application

★ Direction measurement based on inclination ★ Inclination monitoring of geological equipment

★ Mining machinery and oil drilling equipment ★ Equipment level control

★ Alignment control, bending control



▶ INTRODUCTION

SCA110T/SCA120T is one tilt sensor with analog voltage output. Users only need to collect the voltage value of the sensor to calculate the current inclination of the object. The built-in (MEMS) micro-solid pendulum is used to measure the change of the static gravity field and convert it into the change of the inclination angle. The change is output through the voltage (0-5V); it is mainly used to measure the inclination of the object and the horizontal plane.

This product adopts the principle of non-contact measurement, can output the current attitude inclination in real time, and is easy to install. MEMS sensor production technology, high precision, small size, strong resistance to external electromagnetic interference, strong ability to withstand shock and vibration, is an ideal choice for industrial equipment and platform measurement attitude!



PARAMETERS



SCA110&SCA120T CONDITION PARAMETER UNIT
Measure range   ±10 ±30 ±60 ±90 ±180 °
Measure axis   X/XY X/XY X/XY X/XY X/XY Axis
Zero output 0° output 2.5 2.5 2.5 2.5 2.5 V
Resolution   0.01 0.01 0.02 0.03 0.05 °
Measure accuracy @25℃ 0.03 0.05 0.06 0.08 0.1 °
Long term.stability   0.05 0.05 0.05 0.05 0.05 °
Zero Temp.coefficient -40~85℃ ±0.006 ±0.006 ±0.006 ±0.006 ±0.006 °/℃
Sensitivity temp-coeffi -40~85℃ ≤100 ≤100 ≤100 ≤100 ≤100 ppm/℃
Power-on start time   0.5 0.5 0.5 0.5 0.5 S
Response time   0.02 0.02 0.02 0.02 0.02 s
Response frequency   1~20 1~20 1~20 1~20 1~20 Hz
EMC According to EN61000和GBT17626c
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Impact resistance 100g@11ms,3 Axis Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2
Weight 165g(exclude cable)
