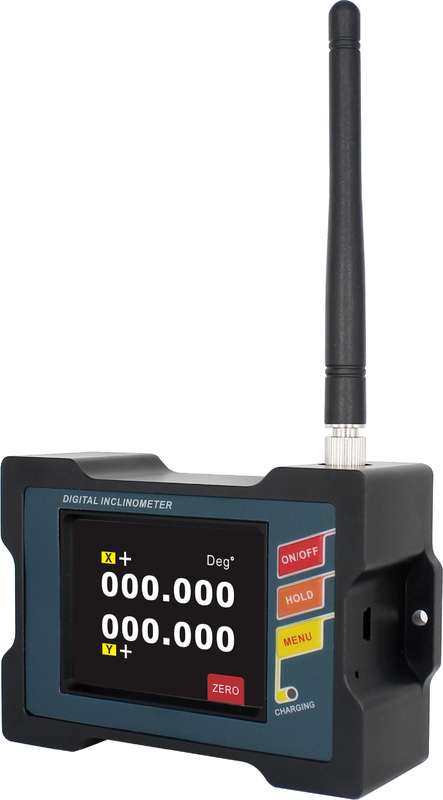

DAM825 Industrial Wireless LoRa Display for Remote Inclinometer Angle Measurement

• Remote display of all inclination product data of RION
• Resolution: 0.01°/0.001°
• Powered by lithium battery
• IP54 protection grade
• Wide temperature operation -20～+70℃
• For installation with screw holes
• Shell size: L115×W38×H77mm
• Transmission distance up to: 200m

• Engineering vehicle leveling
• Bridge and dam monitoring
• Laser equipment positioning
• Angle control of medical equipment
• Attitude navigation of underground drilling rigs
• Railway gauge and gauge leveling
• Precision machine tool level control
• Geological equipment tilt monitoring

RION company independently develops and produces wireless LoRa displays, which can be matched with some of our inclination sensor products, it can display the real-time angle of the sensor from a long distance, adopts the latest LoRa technology, and has a long transmission distance. This product also uses frequency hopping technology, which can pass pseudo random codes. The sequence is subjected to frequency shift keying, which makes the carrier frequency hop continuously and spreads the spectrum. It has the characteristics of strong anti-interference ability, low working power consumption and low cost, and can adapt to most complex environments.

The display adopts an industrial wide temperature digital screen, and the screen is clearly visible, it is equipped with PVC film buttons to enhance the customer's operating experience, and it is equipped with a large rechargeable battery to achieve long battery life, the metal shell design is portable and easy to install, especially suitable for real time monitor jobs in harsh industrial sites. Accept the customization of customer function keys, panel colors, and third-party sensors for access acquisition solutions.
