High Resolution Magnetic Digital Angle Gauge RION Industrial

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, RHOS

Model Number: DMI850

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $2,345.00/Units

Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn

Delivery Time: 10 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 100 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

High Resolution digital angle gauge

,

magnetic digital angle gauge

,

RION industrial digital inclinometer

Brand:
Inclinometer Tilt Sensor
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
Tilt Sensor Best Accuracy:
<0.001°
Angular Resolution:
0.0005°
Protection Class:
IP54
Maximum Measurement Range:
±30°
Both Side And Bottom Can Be Measured:
Yes
Data Storage Function:
Yes
Working Temperature:
-10°~ +70℃
Brand:
Inclinometer Tilt Sensor
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
Tilt Sensor Best Accuracy:
<0.001°
Angular Resolution:
0.0005°
Protection Class:
IP54
Maximum Measurement Range:
±30°
Both Side And Bottom Can Be Measured:
Yes
Data Storage Function:
Yes
Working Temperature:
-10°~ +70℃
Description

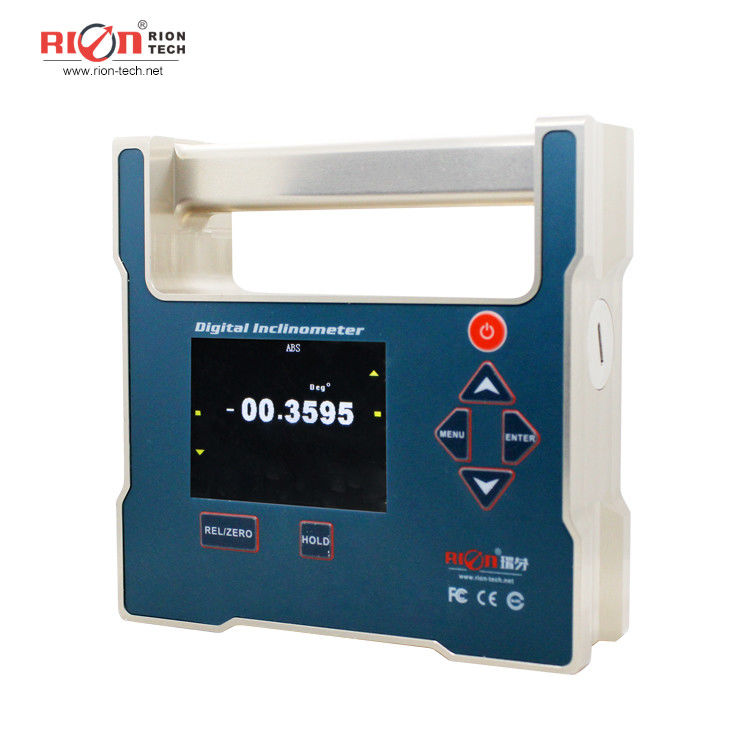

High Resolution Magnetic Digital Angle Gauge RION Industrial
DMI850 built in 32 bit microprocessor high precision industrial digital inclinometer


PRODUCT DESCRIPTION


Ultra High Resolution mm MEMS Magnetic Based Digital Tilt Sensor

PRODUCT DESCRIPTION
DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. Battery continuous working time up to 6 hours;It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

KEY FEATURES
* Best accuracy:<0.001°
* Angular resolution:0.0005°
* IP54 protection class
* Maximum measurement range:±30°
* Absolute / relative measurement switchable
* data storage function
* Both side and bottom can be measured
* working temperature -10°~ +70℃
* Double benchmarkstrong magnet installation
* Alarm angle can be set
* Automatic angle interpolation compensation function
* Night vision four color screen
* Customers can calibrate the zero point by themselves
* Angle or length double unit switch
* 2 kinds of measurement mode selectable (radian, angle, mm)


APPLICATION RANGE
* Building construction
* Automotive four-wheel inspection
* Road slope
* Mechanical installation
* Pipe installation
* Industrial platform
* Pan-tilt angle detection
*Turntable detection
*Production fixture
* Medical instruments
Measuring range
±30
°


Measuring axis
Single-axis



Best accuracy
<0.001 (<5°),<0.003 (5°-30°)
°(RMS)


Resolution
0.0005
°


2 Type modes
Two modes can be set: degree, mm / m



LCD
64 color true color luminous display



LCD visiable size
L60*W45
mm


Operating temperature
-10°~ +70℃
°/℃


Working humidity
85
%RH


Power supply
2A No.5 battery



Battery continuous working time
6(2000mAh battery)
h


Anti-viration
10g @ 11ms, triaxial and same (half sine wave)
g


Impact resistance
10grms,10~100Hz



Weight
1200g



Protection glass
IP54



Material
Anodizing of aluminum alloy



Size
L140*W140*H45mm
