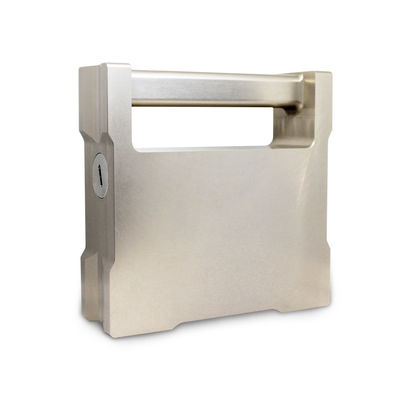

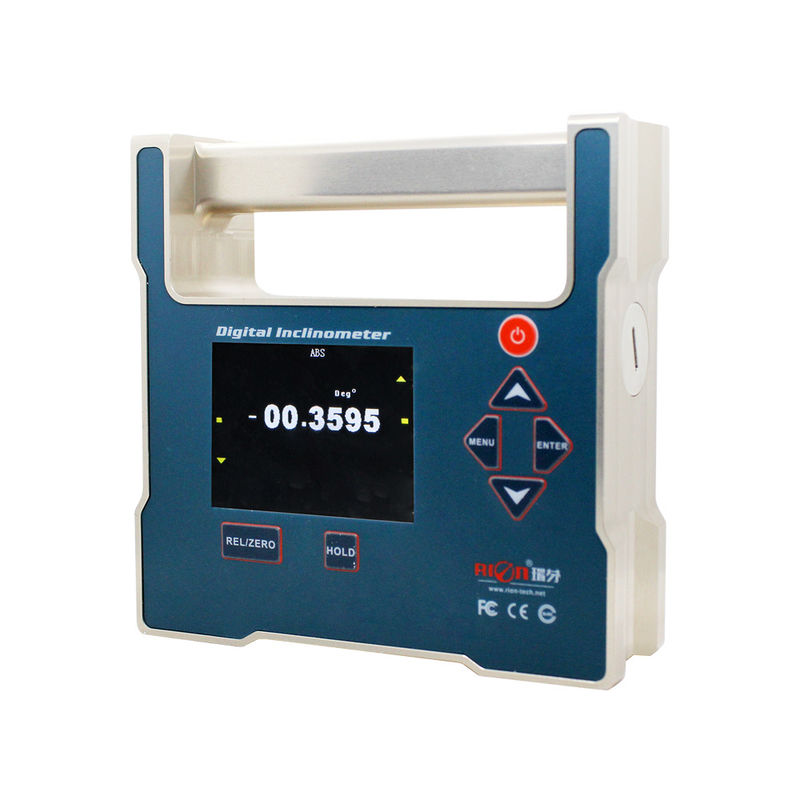

CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI850

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $2345/Pieces

Packaging Details: 1pcs/box,10pcs/ctn

Delivery Time: 10 days

Payment Terms: T/T, Paypal

Supply Ability: 300 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

High Accuracy Digital Inclinometer 0.001 Deg

,

alarm High Accuracy Digital Inclinometer

,

IP54 angle meter digital

Usage:
Magnetic Sensor
Theory:
Fluxgate
Output:
Digital Sensor
Material:
Metal
Size:
L150*W150*H47mm
Weight:
1200g
Waterproof:
IP54
Working Temp.:
-10~70 Celsius Degree
Power Supply:
3.7v Rechargeable Lithium Battery
Data Output:
USB1.1
Shock Impact:
10grms,10-100Hz
Port:
Shenzhen
Usage:
Magnetic Sensor
Theory:
Fluxgate
Output:
Digital Sensor
Material:
Metal
Size:
L150*W150*H47mm
Weight:
1200g
Waterproof:
IP54
Working Temp.:
-10~70 Celsius Degree
Power Supply:
3.7v Rechargeable Lithium Battery
Data Output:
USB1.1
Shock Impact:
10grms,10-100Hz
Port:
Shenzhen
Description
CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter

Super Precise Digital Inclinometer, 0.001 Accuracy Inclinometer, Alarm Inclinometer



Product Description



*Single /Dual axis Digital Inclinometer

*Developed by RION company based on high precise angle measurement platform

*Built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter

*Can highly subdivision sampling

*Highest level accuracy of 0.001 degrees

*Resolution 0.0002 degrees

*Built-in large capacity rechargeable battery

*Batterry continuous working time up to 12 hours

*Product integrates USB serial interface

*Real-time transmission of current measurement results

*Read the measurement data level of internal storage

*Data playback and analysis can be carried out on site chart

*Best instrument and measurement of high precision adjustable platform



Key Features

Best accuracy:<0.001°
Repeatability:0.002°
Angle resolution:0.0002°
Maximum measuring range:±30°
User can set the alarm value by himself
Data store function
Absolute/Relative measurement can switch
Both sides and bottom can measure
Double benchmark strong magnet installation
Working Temperature : -10°~ +70℃
Auto-angle interleaved compensation function
Auto temperature drift compensation
User can calibrate ZERO by himself
Built-in rechargeable industry batteries
Night vision fours colors screen
IP54 protection class
°/mm/m Dual units switch function
Filter frequency optional
Three kinds of measurement mode selectable (radian, angle, mm)

Application

Building construction
Automobile four-wheel testing
Road slope
Machinery installation
Piping installation
Industrial platform
Turntable testing
Pan unit angle detection
Production jig
Medical instruments



Specification



CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 0DMI850 PARAMETER unit
Measurement Range ±30 °
Measuring Axis Single-axis
Best Accuracy <0.002 (<5°),<0.003 (5°-30°) °(RMS)
Resolution 0.0005 °
Measurement Mode Two modes can be set: degree, mm / m /
Lcd 64 color true color luminous display /
Lcd Visible Size L60*W45 mm
Operating Temperature -10°~ +70℃ °/℃
Working Humidity 85 %RH
Power Supply 2A No.5 battery /
Battery Continuous Working Time 6 h
Anti-Vibration 10g @ 11ms, triaxial and same (half sine wave) /
Impact Resistance 10grms,10~100Hz /
Weight 1200 g
Protect Class IP54 /
Material Anodizing of aluminum alloy /
Size L140*W140*H45mm mm







Inclinometer series  with different accuracy and resolution



Resolution: 0.01                       Resolution: 0.001                 Resolution: 0.0005

CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 2CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 4CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 6



Inclinometer with built-in display



Resolution: 0.01°                         Resolution: 0.001°

CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 8CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 10



please click the picture if any of them make you interested




CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 13
CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 15

CE Alarm High Accuracy Digital Inclinometer 0.001 Deg IP54 Angle Meter 17
