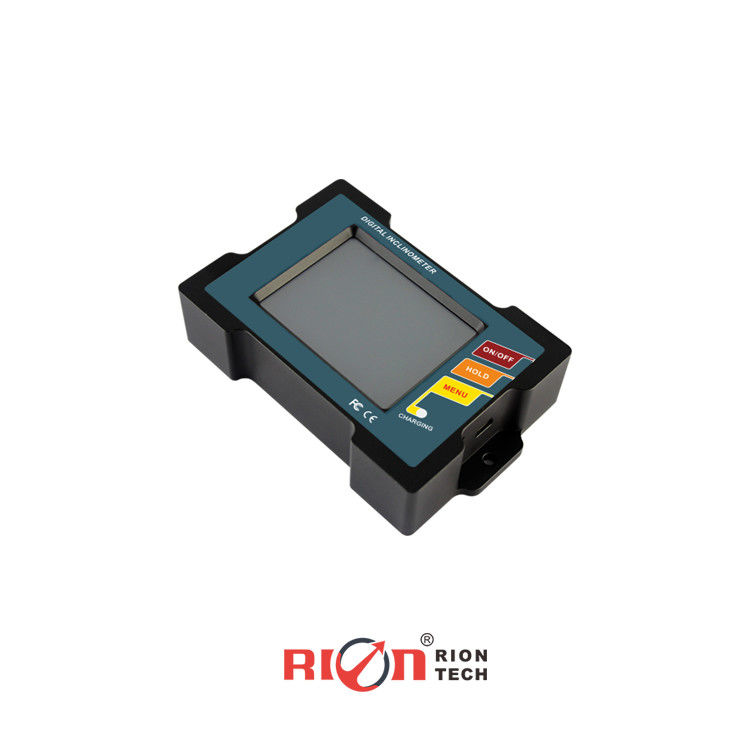

DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: ISO, CE

Model Number: DMI815-15

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $438.00/Pieces

Packaging Details: 1pcs inclinometer / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 7 days

Payment Terms: T/T, Paypal

Supply Ability: 3000 Piece/Pieces per Week inclinometers

Get Best Price
Contact Now
Specifications
Highlight:

ISO High Accuracy Digital Inclinometer

,

3.7V High Accuracy Digital Inclinometer

,

3.7V screw mounting digital angle finder

Warranty:
1 Years
Customized Support:
OEM
Measuring Range:
+/-15deg , +/-30deg Optional
Accuracy:
<0.005deg @+/-15deg (full Range) , <0.01deg@+/-30deg (full Range)
Resolution:
0.001°
Power Supply:
3.7VCharging Lithium Battery
LCD:
64 True Colors Night Vision Display Screen
Repeatability:
<0.003°
Warranty:
1 Years
Customized Support:
OEM
Measuring Range:
+/-15deg , +/-30deg Optional
Accuracy:
<0.005deg @+/-15deg (full Range) , <0.01deg@+/-30deg (full Range)
Resolution:
0.001°
Power Supply:
3.7VCharging Lithium Battery
LCD:
64 True Colors Night Vision Display Screen
Repeatability:
<0.003°
Description
DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder
Product Overviews

DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder



General Description

DMI815 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI815 is a single axis 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI815 (SMI815) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI815 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !



Features:

●Best accuracy:<0.003°

●Repeatability:0.003°

●Angle resolution:0.001°

●Maximum measuring range:±90°

●User can set the alarm value by himself

● Data store function

●Absolute/Relative measurement can switch

●Both sides and bottom can measure

●Working Temperature : -10°~ +70℃

●Auto temperature drift compensation

●User can calibrate ZERO by himself

●°/mm/m Dual units switch function

●Building construction

●Automobile four-wheel testing





Specification table



Angle Measuring range DMI815:±15 ° ; DMI815:±30 ° ; °
MM measuring range 267 577 mm/m
Meausring axis Single axis Single axis
The highest meausring accuracy <0.005 (Full measuring range) <0.01 (Full measuring range) °
Angle Measuring resolution 0.001 0.001 °
MM measuring accuracy 0.1 0.2 mm/m
Three measurement mode selectable radian, angle, mm measuring can be selected
MM measuring res 0.02 mm/m
LCD 64 true colors night vision display screen
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃ °/℃
Working humidity 85 %RH
Equipped with PC software VC software
Data output signal RS485/RS232
Connect plug in Standard 5Pin USB connector
Shock resistance 10g@11ms,3Times/Axis(half sinusoid) g
Shock impact 10grms,10~100Hz g
Weight 300 g
Waterproof grade IP54
Material Metal
Size L117*W75*H27.1mm mm

 DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder 0DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder 2DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting Angle Finder 4

FAQ

How long is the delivery time of the products?

A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 2~4 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.



Q: How about the payment conditions?

A: we accept 40% prepayment in advance, and the balance 60% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.



Q: How will we do if the product has the quality problem?

A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
