SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation

Name: SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: SDC620
Price: 594.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE, ISO,ROHS

Model Number: SDC620

Document: SDC620B-N HIGH-PRECISION DI...SS.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $594.00/Pieces

Packaging Details: 1pcs / inner box with sponge , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SDC620B-N 3D Electronic Compass Sensor, Marine Navigation 3D Electronic Compass Sensor, Tilt Compensated 3D Electronic Compass Sensor


Course Angle Accuracy:	0.3°～0.5°	Measuring Range:	360°
Angle Compensation Range:	± 85°	Resolution:	0.1°
Hard Iron Calibration:	Have	Soft Iron Calibration:	Have
Startup Delay:	< 50 Ms	Output Format:	RION 68 Protocol
Size:	137.3×83×37mm	Weight:	≤ 520g (excluding Cable)

Course Angle Accuracy:	0.3°～0.5°
Measuring Range:	360°
Angle Compensation Range:	± 85°
Resolution:	0.1°
Hard Iron Calibration:	Have
Soft Iron Calibration:	Have
Startup Delay:	< 50 Ms
Output Format:	RION 68 Protocol
Size:	137.3×83×37mm
Weight:	≤ 520g (excluding Cable)

Description

SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation

SDC620B-N HIGH-PRECISION DIGITAL DISPLAY 3D ELECTRONIC COMPASS.pdf

Product Overview

SDC620B-N is a new three-dimensional all-attitude compass launched by RION Technology. The product applies fluxgate technology. It is a high-precision three-dimensional compass with high resolution, strong anti-noise ability and stable temperature deviation. Advanced hard-iron and soft-iron calibration algorithms are used, as well as high-precision accelerometers for tilt compensation, to provide high-precision heading information for any tool face with a roll angle of 360°. In the environment with fixed interference, this product can still maintain a high measurement accuracy.

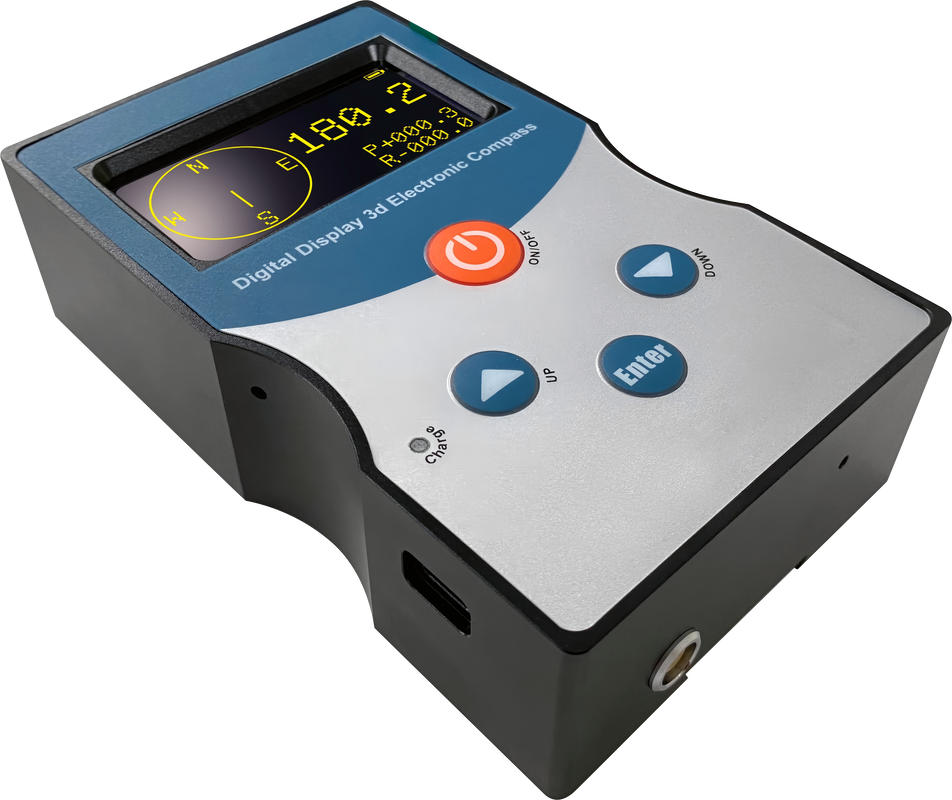

SDC620B-N is a handheld digital display instrument, which can remotely transmit three-dimensional data to the computer, and synchronously monitor and save data through the software of the upper computer of RION (this function is optional). SDC620B-N display adopts industrial low-temperature display, built-in high-capacity rechargeable battery, and adopts type-C interface to charge, which is convenient and fast.

Key Features

Heading angle accuracy: 0.3° ~ 0.5°
Angle compensation range: ± 85°
With soft and hard magnetic field calibration
Heading angle measurement range: 360°
60 hours of continuous working endurance
Reset function
IP54 protection grade
Integrated design of handheld and dovetail installation

Applications

Navigation mapping
GPS integrated navigation
Antenna servo control
Pile driver angle real-time monitoring
Map Redrawing Tool
Oceanographic survey instrument

Technical Specifications

SDC620B-N		Parameter
Compass heading parameter	Course angle accuracy	0.3°～0.5°
	Measuring range	360°
	Resolution	0.1°
	Repeatability	0.1°
	Roll Angle	0.1 ° < 60 ° (measuring range)
	Roll Angle	0.2 ° < 180 ° (measuring range)
	Roll angle measurement range	±180°
	Resolution	0.1°
	Pitch Angle	0.1 ° < 60 ° (measuring range)
	Pitch Angle	0.2 ° < 85 ° (measuring range)
	Pitch Angle Measurement Range	±85°
Calibration	Hard iron calibration	Have
Calibration	Soft iron calibration	Have
Interface characteristics	Startup delay	< 50 ms
	Maximum sample rate	20Hz/s
	Communication rate	9600 baud
	Output format	RION 68 protocol
Power source	Support voltage	Internal 3.7 V rechargeable lithium battery
	Operating current	50mA (typical)
	Charging current	Fast charging mode 1.75 A, fully charged in about 4 hours
	Charging current	Normal mode 0.5A, full in about 12 hours
Environment	Operating temperature	-20℃～+70℃
	Storage temperature	-20℃～+70℃
	Vibration resistance	3000g
Physical properties	Connector	4 PIN Remo air plug
	Cable line	Standard 1m cable
	Size	137.3×83×37mm
	Weight	≤ 520g (excluding cable)

SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
