Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Model Number: DCM260
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $99.00 - $115.00/Pieces
Packaging Details: 1pcs / inner box with sponge , 100pcs/ctn
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C
Supply Ability: 100000 Piece/Pieces per Month
Usage: |
Magnetic Sensor |
Theory: |
Mems Technology |
Output: |
Digital Sensor |
Dynamic Compass Heading Accuracy: |
0.8deg |
Tilt Angle Measuring Range: |
+/-90deg |
Tilt Angle Resolution: |
0.1deg |
Tilt Angle Accuracy: |
0.2deg |
Wide Temperature: |
-40C ~ + 85C |
Size: |
L55*W37*H24mm |
Power Supply: |
DC 5V |
Output Interface Port: |
Standard RS232/RS485/TTL Optional |
Protection Class: |
IP67 |
Port: |
HK |
Usage: |
Magnetic Sensor |
Theory: |
Mems Technology |
Output: |
Digital Sensor |
Dynamic Compass Heading Accuracy: |
0.8deg |
Tilt Angle Measuring Range: |
+/-90deg |
Tilt Angle Resolution: |
0.1deg |
Tilt Angle Accuracy: |
0.2deg |
Wide Temperature: |
-40C ~ + 85C |
Size: |
L55*W37*H24mm |
Power Supply: |
DC 5V |
Output Interface Port: |
Standard RS232/RS485/TTL Optional |
Protection Class: |
IP67 |
Port: |
HK |

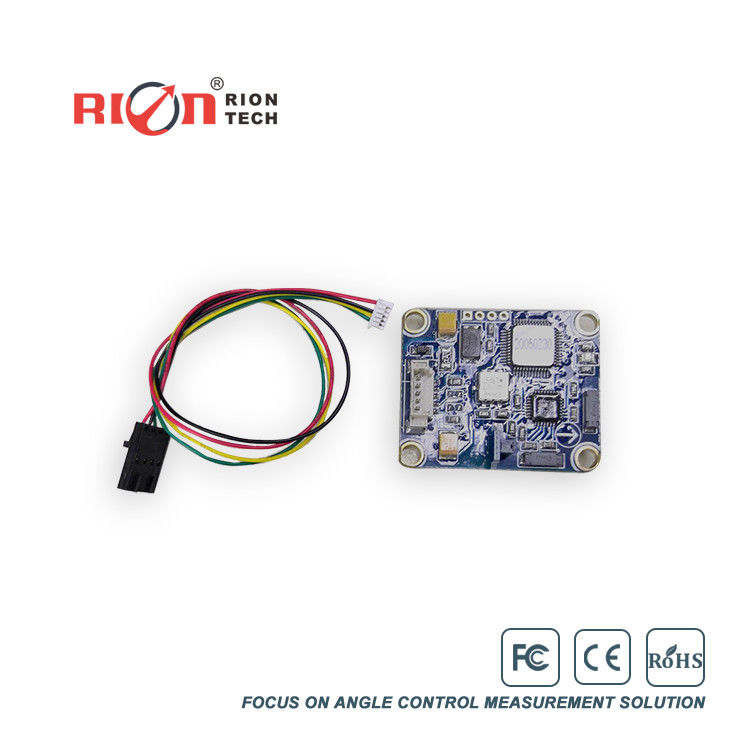

3D Digital Compass Sensor Dynamic MEMS Analog Compass Sensor DC 5V Digital Inclinometer
Features:
Application :
Electrical Characteristics
|
Compass heading parameter |
The best heading accuracy |
0.8° tilt <10° |
|
1.5° tilt <30° |
||
|
2.0° tilt <40° |
||
|
3.0° tilt <60° |
||
|
Resolution |
0.1° |
|
|
Compass tilt parameter |
Pitch accuracy |
0.1°<15°(Measuring range) |
|
0.2°<30°(Measuring range) |
||
|
0.3°<60°(Measuring range) |
||
|
Pitch tilt range |
±85° |
|
|
Roll accuracy |
0.1°<15°(Measuring range) |
|
|
0.2°<30°(Measuring range) |
||
|
0.3°<60°(Measuring range) |
||
|
Roll tilt range |
±85° |
|
|
Resolution |
0.1° |
|
|
The best compensation angle range of compass tilt |
<40° |
|
|
Calibration |
Hard iron calibration |
Yes |
|
Soft iron calibration |
Yes |
|
|
Magnetic field interference calibration method |
Plane rotation in a circle (2D calibration) |
|
|
Physical features |
Dimension |
L55×W37×H24mm |
|
Weight |
20g |
|
|
RS-232/RS485/TTL interface connector |
5cable 1M direct lead line |
|
|
Interface features |
Start delay |
<50MS |
|
Maximum output rate |
20Hz/s |
|
|
Communication rate |
2400 to 19200baud |
|
|
Output format |
Binary high performance protocol |
|
|
Power |
Power supply |
(Default)DC+5V |
|
(Customized)DC9~36V |
||
|
Current(Maximum) |
45mA |
|
|
Ideal mode |
35mA |
|
|
Sleep Mode |
TBD |
|
|
Enviroment |
Operating range |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+100℃ |
|
|
Resistance shock performance |
2500g |
|
|
Electromagnetic compatibility |
According to EN61000 and GBT17626 |
|
|
MTBF |
≥40000 hours/times |
|
|
Insulation resistance |
≥100M |
|
|
Shock resistance |
100g@11ms,3Times/Axis(half sinusoid) |
|
|
Anti-vibration |
10grms,10~1000Hz |
|
|
Weight |
30g(without cable) |
|
