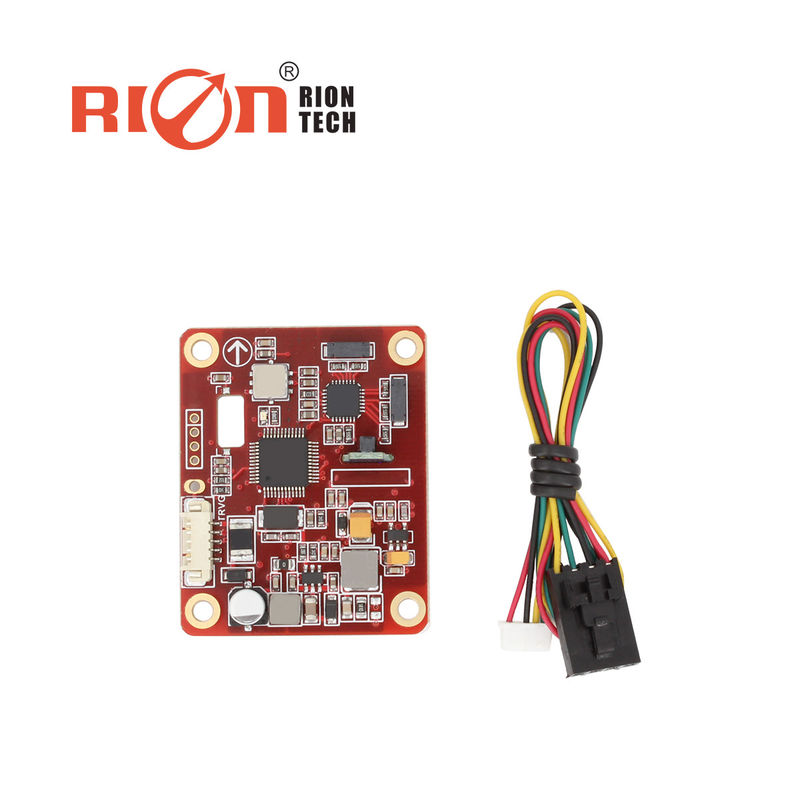

DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: ISO

Model Number: DCM250B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $98.00/Units >=1 Units

Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn

Delivery Time: 7 days

Payment Terms: T/T, Paypal

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

MEMS electronic compass module

,

NMEA0183 Protocol electronic compass module

,

MCU 3 axis SENSOR

Case Material:
Aluminum
Size:
33*27*9mm
Digital Compass Heading Range:
360deg
Roll Range:
+/-85deg
Pitch Range:
+/-85deg
Interface Port:
RS232 /RS485/TTL Optional
Digital Compass MTBF:
≥40000 Hours/time
Working Temperature:
-40C ~+85C
Storage Temperature:
-40C ~+100C
Production:
IP67
Case Material:
Aluminum
Size:
33*27*9mm
Digital Compass Heading Range:
360deg
Roll Range:
+/-85deg
Pitch Range:
+/-85deg
Interface Port:
RS232 /RS485/TTL Optional
Digital Compass MTBF:
≥40000 Hours/time
Working Temperature:
-40C ~+85C
Storage Temperature:
-40C ~+100C
Production:
IP67
Description
DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable

DCM250B MEMS NMEA0183 Protocol Electronic Compass Module MCU 3 Axis High Reliable


DCM250B&260B is a three-dimensional electronic compass, which adopts hard magnetic and soft magnetic calibration algorithm, so that the compass can eliminate the influence of magnetic field through the calibration algorithm even in the environment with magnetic field interference. DCM250B&260B integrates a three-axis fluxgate sensor, calculates the heading in real time through the central processing unit, and uses a three-axis accelerometer to compensate for a wide range of tilt angles to ensure that the compass can provide high accuracy even at tilt angles of up to ±85° Heading data. The electronic compass integrates high-precision MCU control, with diversified output modes. The standard interfaces include RS232 / RS485 / TTL and other interfaces, or the customization of other communication interfaces. DCM250B&260B is small in size and low in power consumption. It can be used in many fields such as antenna stability, vehicles, system integration, high shock resistance, high reliability, and the compass can work normally in extremely harsh environments, and is more suitable for today's various precisions and high measurement integrated control system.

Main Features

heading accuracy: 0.8°
roll&pitch measuring range:±85°
tilt resolution: 0.1°
tilt accuracy: <0.2°(full range)
working temp.: -40℃~+85℃
size: L55*W37*H24mm
with hard and soft magnetic calibration
RS232/RS485/TTL output
DC5V power supply
★ Support ASCII (NMEA 0183 protocol )

Application :

★ Marine navigation surveying and mapping
★ GPS integrated navigation
★ Antenna servo control
★ Infrared imager
★ Laser rangefinder
★ Map redrawing device
★ ROV underwater robot navigation
★ Oceanographic surveying instrument
★ Special occasion robot



Parameter

The best heading accuracy
0.8° tilt<10°
1.5° tilt <30°
2.0° tilt<40°
3.0° tilt < 60°

Pitch accuracy
0.1°<15°(Measuring range)
0.2°<30°(Measuring range)
0.3°<60°(Measuring range)
Pitch tilt range
±85°

Roll accuracy
0.1°<15°(Measuring range)
0.2°<30°(Measuring range)
0.3°<60°(Measuring range)
Roll tilt range
±85°
Resolution
0.1°
Compass tilt the best compensation angle range
<40°
Hard iron calibration
Yes
Soft iron calibration
Yes
Magnetic field interference calibration method
Plane rotation in 1circle(2D Calibration)
Dimension
L55×W37×H24mm
Weight
20g
RS-232/RS485/TTL interface connector
4 core cable
Start delay
<50MS
Maximum output rate
20Hz/s
Communication rate
2400 to 19200baud
Output format
Binary high performance protocol
Power supply
(Default)DC+5V
(Customized)DC9~36V
Current(Maximum)
45mA
Ideal mode
35mA
Sleep Mode
TBD
Operating range
-40℃~+85℃
Storage temperature
-40℃~+100℃
Resistance shock performance
2500g
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥40000 hours/times
Insulation resistance
≥100M
Shock resistance
100g@11ms,3Times/Axis(half sinusoid)
Anti-vibration
10grms,10~1000Hz
Weight
90g(not include cable)



Measuring Direction
