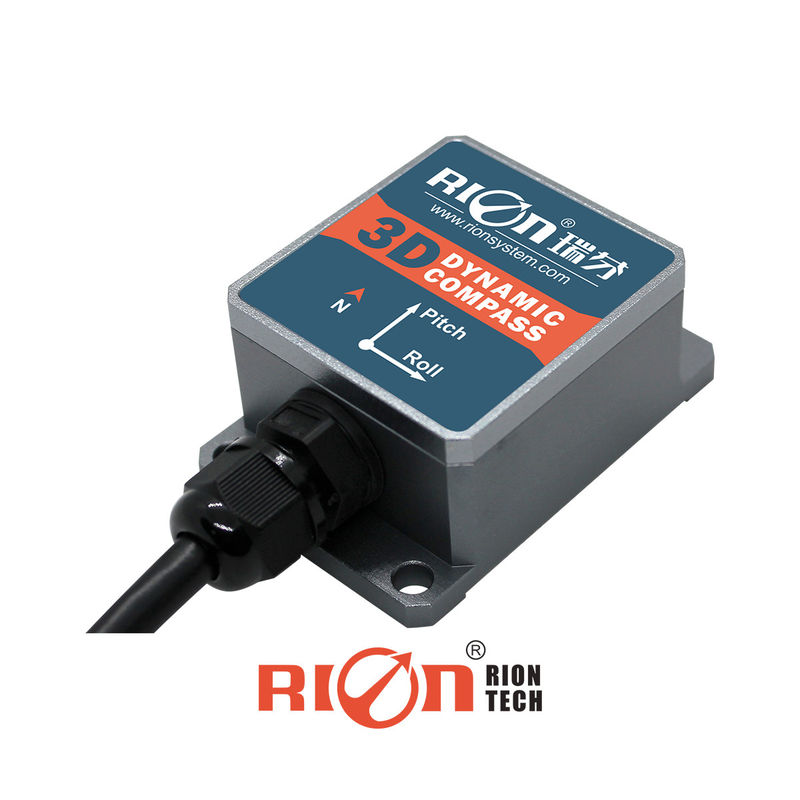

DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: DCM260

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $80.00 - $109.00/Pieces

Packaging Details: 1pcs / inner box with sponge , 100pcs/ctn

Delivery Time: 7 days for sample

Payment Terms: T/T, PAYPAL

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

90deg 3D Digital Compass

,

RS485 3D Digital Compass

,

2D Calibration digital compass sensor

Heading Accuracy:
0.5~0.8deg
Tilt Angle Range:
+/-90deg
Tilt Angle Resolution:
0.1deg
Tilt Angle Accuracy:
0.1deg
Wide Temperature:
-40 ~85C
Power Supply:
DC5V (Customized 9-36V)
Protection:
IP67
Output:
RS232, RS485 Or TTL Optional
Heading Accuracy:
0.5~0.8deg
Tilt Angle Range:
+/-90deg
Tilt Angle Resolution:
0.1deg
Tilt Angle Accuracy:
0.1deg
Wide Temperature:
-40 ~85C
Power Supply:
DC5V (Customized 9-36V)
Protection:
IP67
Output:
RS232, RS485 Or TTL Optional
Description
DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS

DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS





General Description



DCM250B/260B is a low-cost three-dimensional electronic compass, using hard and soft magnetic calibration algorithm, so that the compass can eliminate the influence of magnetic field through the calibration algorithm in the environment with magnetic field interference. The DCM250B&260B integrates a three-axis fluxgate sensor, calculates the heading in real time through the central processor, and uses a three-axis accelerometer to perform heading compensation for a wide range of tilt angles, ensuring that the compass can also provide high accuracy at tilt angles up to ±85° Heading data. The electronic compass integrates high-precision MCU control and diversified output methods. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

The DCM250B/260B is small size, low in power consumption, and can be used in many fields such as stable antennas, vehicles, system integration, etc. The high shock resistance and high reliability also make the compass work normally in extremely harsh environments, and is more suitable for today's Precision measurement integrated control system.



Features:

★ Heading accuracy: 0.8°

★ Inclination measurement range: ±85°

★ Inclination resolution: 0.1°

★ Inclination accuracy: 0.2°

★ Temperature range: -40℃~+85℃

★ DC 5V power supply

★ With hard magnetic, soft magnetic and tilt compensation

★ Standard RS232/RS485/TTL output interface



Application :

★ Navigation surveying

★ Satellite antenna searching

★ GPS combined navigation

★ Antenna servo control

★ Infrared imager

★ Special occasion robots

★ ROV underwater robot navigation

★ Laser rangefinder

★ Mapping



DCM250B Parameters

Compass heading parameters Heading accuracy 0.8°
Resolution 0.1°
Compass inclination parameter Pitch accuracy 0.1°<15°(measure range)
0.2°<30°(measure range)
0.3°<60°(measure range)
Pitch range ±85°
Rolling accuracy 0.1°<15°(measure range)
0.2°<30°(measure range)
0.3°<60°(measure range)
Roll range ±85°
Resolution 0.1°
Tilt compensation angle range <40°
calibration Hard iron calibration Yes
Soft iron calibration Yes
Magnetic field interference calibration method Rotate horizontally one round (2D calibration)
PCBA size L33×W27×H9mm
RS232/RS485/TTL PCBA: 4PIN 30cm terminal cable
Interface Start delay <50mS
Output rate 20Hz/s
Baud rate 2400 to 19200baud
Output format Binary high-performance protocol
Power supply Supply voltage (default) DC+5V
(optional) DC 9~36V
Current (MAX) 45mA
Ideal mode 35mA
Sleep mode TBD
Environment Operating range -40℃~+85℃
Storage temperature -40℃~+85℃
Anti-vibration performance 2500g
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/time
Insulation resistance ≥100MΩ
Impact resistance 100g@11ms, three direction (half sinusoid)
Anti-vibration 10grms10~1000Hz
Weight PCBA:≤25g (excluding cable)
