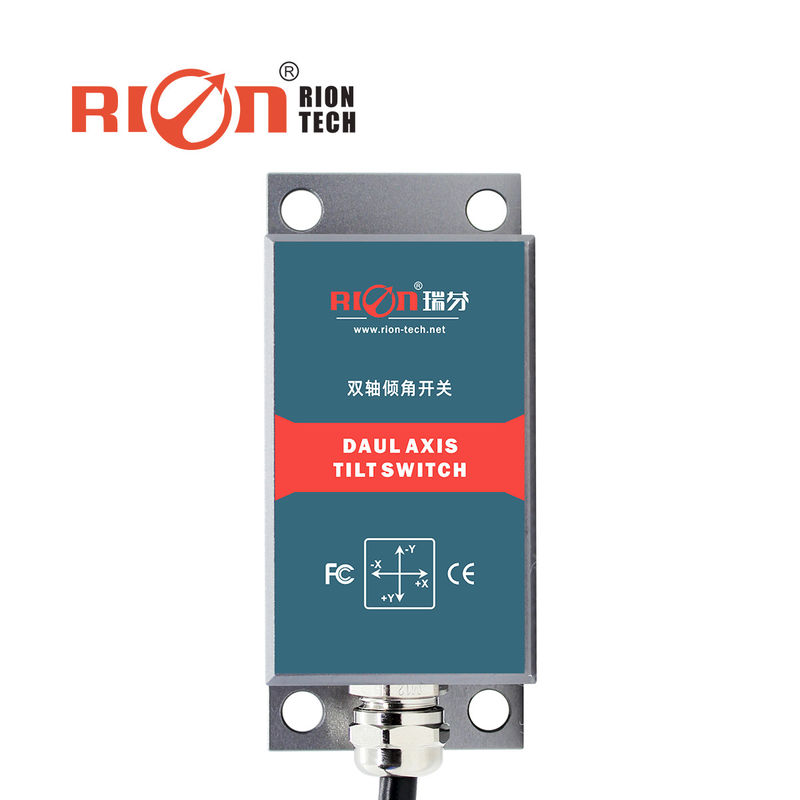

SCA126T Dual Axis Anti-vibration Inclinometer IP67 For Inclination Measurement

SCA Dual axis Anti-vibration Inclinometer IP67 for inclination measurement

SCA116T SCA126T CAN OPEN OUTPUT INCLINOMETER.pdf

Product Description:

SCA116T/SCA126T CAN OPEN is a tilt sensor specifically designed for precise industrial field control. It features a CANopen output interface and integrates industry-standard isolated CAN transceivers and high-precision A/D differential converters. Utilizing an advanced fifth-order filtering algorithm, the sensor accurately measures tilt angles and pitch relative to the horizontal plane.

Equipped with a high-precision digital temperature sensor, SCA116T/SCA116T CAN OPEN effectively corrects temperature drift, ensuring stability and reliability in extreme temperature conditions. It supports a standard output response frequency of up to 50Hz, with customization available for higher frequencies based on user requirements. As a genuine industrial-grade product, it offers dependable performance, excellent scalability, and multiple output configurations, making it suitable for various demanding industrial control environments.

Features:

• Output method: CAN OPEN
• Direct lead interface
• High anti-vibration performance> 2000g
• IP67 protection level
• Measure accuracy: 0.03°
• Resolution 0.01 °

Technical Parameters:

SCA116/126T-C1	CONDITION	PARAMETER				UNIT
Measure range		±10	±30	±60	±90	°
Measure axis		XY	X Y	X Y	X Y	Axis
Resolution		0.01	0.01	0.01	0.01	°
Measure accuracy	@25℃	0.02	0.03	0.05	0.06	°
Long term stability		0.05	0.05	0.05	0.05	°
Zero Temp. coefficient	-40～85℃	±0.006	±0.006	±0.006	±0.006	°/℃
Sensitivity temp. coefficient	-40～85℃	≤100	≤100	≤100	≤100	ppm/℃
Power-on start time		0.5	0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	0.02	s
Output rate	5Hz,15Hz,35Hz,50Hz can be set
Output signal	CAN OPEN
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hours/times
Insulation Resistance	≥100 MΩ
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2
Weight	≤220g (including 1 meter cable)

Applications:

★ Underground drilling rig attitude navigation

★ Shield pipe jacking application

★ Direction measurement based on inclination angle

★ Oil drilling equipment

★Various engineering machinery inclination measurement
