AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement

Name: AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF398-02-T
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: AKF398-02-T

Document: AKF398 MEMS CURRENT VIBRATI...OR.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Excellent Bias Stability Accelerometer, Precision Accelerometer, X/Y/Z Axis Measurement Accelerometer


Deviation Calibration:	<1mg	Sensitivity (± 10%):	0.2~4mA/g
Resonant Frequency:	2.4/5.5 KHz	Output Current:	4~20mA
Frequency Response:	500HZ	Measure Range:	2~40g
Bandwidth (3Db):	1000HZ	Measuring Axial:	X,Y,Z Axis

Deviation Calibration:	<1mg
Sensitivity (± 10%):	0.2~4mA/g
Resonant Frequency:	2.4/5.5 KHz
Output Current:	4~20mA
Frequency Response:	500HZ
Measure Range:	2~40g
Bandwidth (3Db):	1000HZ
Measuring Axial:	X,Y,Z Axis

Description

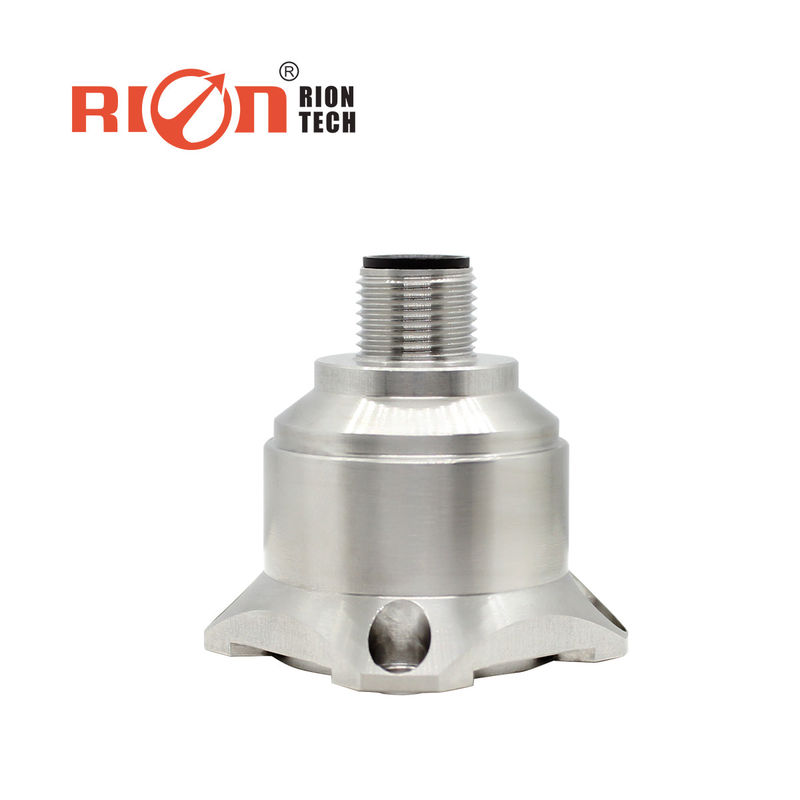

AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement

Product Description:

The AKF398 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Features:

power supply:9-36V
excellent bias stability
working temperature: -40°C ~ +85°C
store temperature: -40°C ~ +85°C
size: L34.3*W34.3*H38.5mm
weight: 73.5g
Three-axis Accelerometer
Good environmental performance

Technical Parameters:

AKF398	PARAMETER						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Deviation Calibration	<1	<1	<1	<1	<1	<1	mg
Measuring Axial	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Up/Off Power Repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	4	2	1	0.8	0.4	0.2	mA/g
Deviation temp. coefficient	0.01	0.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<1	<1	<1	<1	<1	<1	% FS(max)
Frequency response	500	500	500	500	500	500	Hz
Bandwidth (3Db)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral vibration sensitivity ratio	1	1	2	5	5	5	%
Resonant frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0g output 12mA	<0.005						mA
Output current	4~20mA
Input(VDD_VSS)	9~36 VDC
Running current consumption	<60mA @ 12 VDC
Connector	Industrial Standard M12 Connector
Protection grade	IP67
Weight	Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Size	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.238.1mm L-shaped adapter plate size: 364415mm

Applications:

Crash record, fatigue monitoring and prediction
Wind power generation
Traffic system monitoring, roadbed analysis and high-speed railway fault detection
Large machinery, engine
Low frequency vibration and automatic monitoring
Medical equipment
Bridge
Vehicle
Road roller

AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement 0

AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement 1

AKF398 Precision Vibration Sensor With Excellent Bias Stability angle Measurement 2
