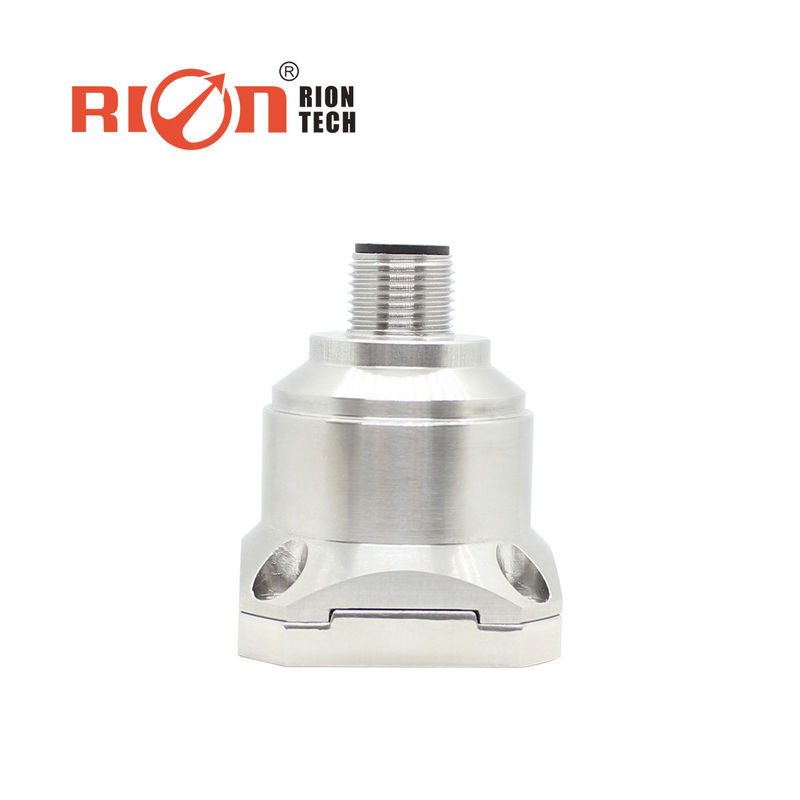

AKF390 MEMS Based for Low Frequency Vibration Measurement

Name: AKF390 MEMS Based for Low Frequency Vibration Measurement
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF390
Price: 240 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: AKF390

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 240

Packaging Details: carton with sponge

Delivery Time: 7 days for sample

Payment Terms: T/T

Supply Ability: 1000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              AKF390 MEMS Based, Vibration Measurement MEMS Based


Nonlinearity:	<0.5%	Bandwidth (3Db):	500 Hz
Working Temperature:	-40°C To +85°C	Protection:	IP67
Measure Range:	2~40g	Theory:	MEMS
Vibration Sensor Axis:	X, Y , Z	Bandwidth:	100 Hz To 1600 Hz
Response Frequency:	0.04s	Acceleration Range:	Max Range +/-40G
Deviation Calibration:	<1mg	Measurement Range:	±2g, ±4g, ±8g, ±16g

Nonlinearity:	<0.5%
Bandwidth (3Db):	500 Hz
Working Temperature:	-40°C To +85°C
Protection:	IP67
Measure Range:	2~40g
Theory:	MEMS
Vibration Sensor Axis:	X, Y , Z
Bandwidth:	100 Hz To 1600 Hz
Response Frequency:	0.04s
Acceleration Range:	Max Range +/-40G
Deviation Calibration:	<1mg
Measurement Range:	±2g, ±4g, ±8g, ±16g

Description

AKF390 MEMS Based for Low Frequency Vibration Measurement

▶ Application

★ crash record, fatigue monitoring and prediction

★ wind power generation
★ Low frequency vibration and automatic monitoring

★ automobile

★ Large machinery, engine

★ Medical equipment

★ bridge

★ road roller

AKF390 (0-5V output )	PARAMETER						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Deviation Calibration	<1	<1	<1	<1	<1	<1	mg
Measuring Axial	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	Axis
Up/Off Power Repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	1250	625	312.5	250	125	62.5	mv/g
Deviation temp. coefficient	0.01	0.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<0.5	<0.5	<0.8	<1	<1	<1	% FS(max)
Frequency response	500	500	500	500	500	500	Hz
Bandwidth (3DB)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0g output 2.5V	<0.01	<0.01	<0.01	<0.008	<0.008	<0.008	mV
The output voltage	0~5V
Input(Vdd_Vss)	9~36 VDC
Current Consumption	<60mA @ 12 VDC
Connector	Industrial Standard M12 Connector
Protection grade	IP67
Weight	Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Dimension	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.238.1mm L-shaped adapter plate size: 364415mm
