Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DAM825
Payment & Shipping Terms
Minimum Order Quantity: 1 Pieces
Price: $460.00/set
Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Communication Method: |
470M Loar Communication |
Supported Resolution: |
0.01/0.001° |
LCD Screen: |
64 True Colors Night Vision Display Screen |
Power: |
3.7V Chargeable Lithium Battery |
Working Humidity: |
85%RH |
Data Storage Function: |
Yes |
Data Store Function: |
Yes |
Theory: |
MEMS |
Angle Range: |
Single Axis +/-90deg |
Ideal Charging Time: |
3h |
Warranty: |
1 Year |
Measure Range: |
Dual Axis +/-30deg |
Sensitivity Error: |
±0.5% |
Small Size: |
L91*W40*H26 Mm |
Installation Method: |
Strong Magnet |
Maximum Measuring Range: |
±90° ( Single Axis Only ) |
Communication Method: |
470M Loar Communication |
Supported Resolution: |
0.01/0.001° |
LCD Screen: |
64 True Colors Night Vision Display Screen |
Power: |
3.7V Chargeable Lithium Battery |
Working Humidity: |
85%RH |
Data Storage Function: |
Yes |
Data Store Function: |
Yes |
Theory: |
MEMS |
Angle Range: |
Single Axis +/-90deg |
Ideal Charging Time: |
3h |
Warranty: |
1 Year |
Measure Range: |
Dual Axis +/-30deg |
Sensitivity Error: |
±0.5% |
Small Size: |
L91*W40*H26 Mm |
Installation Method: |
Strong Magnet |
Maximum Measuring Range: |
±90° ( Single Axis Only ) |

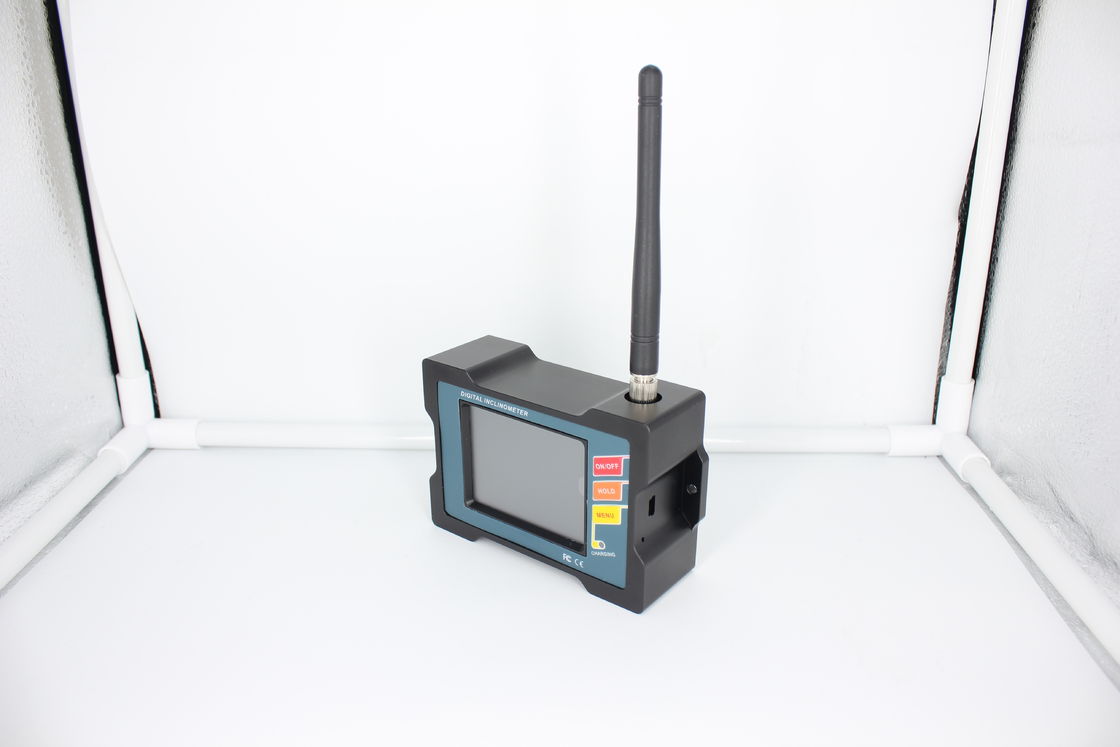

High Accuracy Wireless Digital Inclinometer for Geological Equipment Tilt Monitoring and Positioning
RION QUALIFICATION CERTIFICATION
○Quality management system certification: GB/T19001-2016 idt ISO19001:2015 standard (certificate number: 128101)
○ Quality management system certification: IATF16949: 2016 (certificate number: T178487)
○ Intellectual property management system certification: GB/T29490-2013 standard (certificate number: 41922IP00281-06R0M)
○ Weaponry Quality Management System Certification GJB9001C-2017 Standard (Registration number: 02622J31799R0M)
○ shenzhen professional dedicated unique innovative enterprice(serial no.: SZ20210879)
○ High-tech Enterprise (Certificate No.: GR201844204379)
○ Revision time: 2023-9-21
○ Product functions, parameters, appearance, etc. will be adjusted with technical upgrades.
Please contact our pre-sales business for confirmation when purchasing.
▶ FEATURES
★ Transmission distance up to: 200m
★ Resolution: 0.01°/0.001°
★ Powered by lithium battery
★ Wide temperature operation -20～+70℃
★ IP54 protection grade
★ Shell size: L115×W38×H77mm
★ For installation with screw holes
▶ APPLICATION
★ Engineering vehicle leveling
★ Bridge and dam monitoring
★ Laser equipment positioning
★ Attitude navigation of underground drilling rigs
★ Railway gauge and gauge leveling
★ Precision machine tool level control
★ Geological equipment tilt monitoring
▶ ENERAL DESCRIPTION
The display adopts an industrial wide temperature digital screen, and the screen is clearly visible,it is equipped with PVC film buttons to enhance the customer's operating experience, and it is equipped with a large rechargeable battery to achieve long battery life, the metal shell design is portable and easy to install, especially suitable for real time monitor jobs in harsh industrial sites. Accept the customization of customer function keys, panel colors, and third-party sensors for access acquisition solutions.
▶ SPECIFICATIONS
| DMA825 | Parameter | Unit |
| Communication method | 470M Loar communication | / |
| Supported resolution | 0.01/0.001 | ° |
| LCD screen | 64 True Colors Night Vision Display Screen | / |
| LCD Viewable area size | L57.6*W43.2 | mm |
| Power | 3.7V Chargeable lithium battery | V |
| Working humidity | 85 | %RH |
| Storage temperature | -20～+35 | ℃ |
| Working temperature | -20～+70 | ℃ |
| charging temperature | 0～+45 | ℃ |
| Charging interface | 5V Standard USB connector | / |
| Ideal charging time | 12 | hour |
| Battery continuous working time | 8 | hour |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | g |
| impact resistance | 10grms,10～100Hz | g |
| Waterproof grade | IP54 | / |
| Material | Aluminum alloy anodizing | / |
| Size | L115×W38×H77 | mm |
| Weight | 300 | g |
