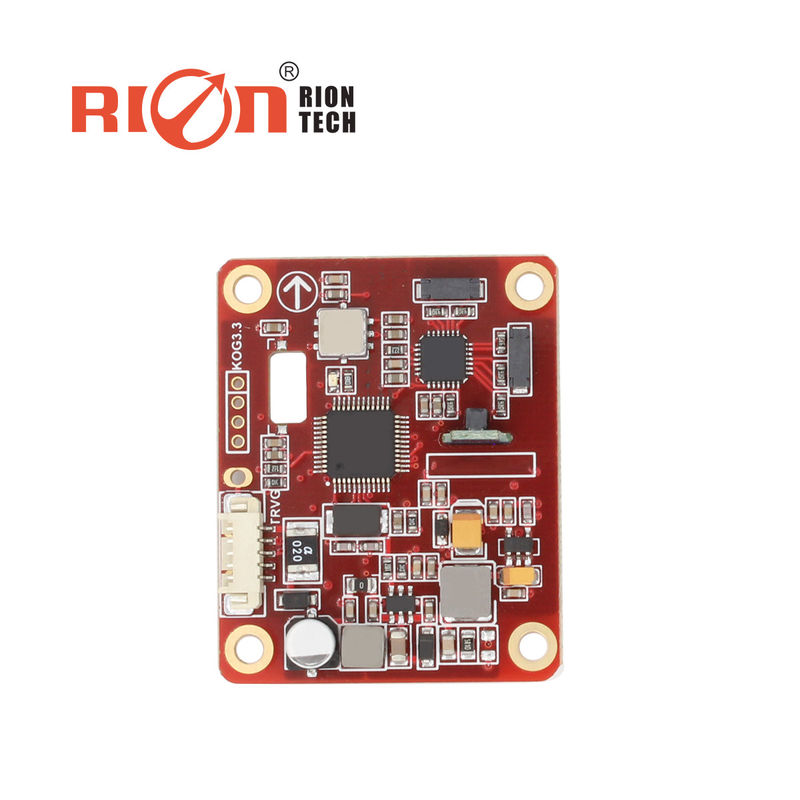

DCM301B Digital Compass PCBA Compass sensor Module For Special occasion robot

DCM301B Digital Compass PCBA Compass sensor Module For Special occasion robot





 General Description



   DCM301B is a high precision 3D electronic compass using the 2D plane calibration algorithm,  various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

  DCM301B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments.



Features:

  • Heading accuracy:0.5°~0.8°
  • Tilt angle measuring range :±90°
  • Tilt angle resolution: 0.1°
  • Tilt angle accuracy: 0.3°
  • Wide temperature :  -40°C~+85°C
  •  Size:  L43×W35×H8mm
  • With hard magnetic ,soft magnetic and angle compensation
  • 2D tilt calibration
  • Standard RS232/RS485/TTL output interface



 Application :

  • Satellite antenna search satellite
  • Marine navigation surveying and mapping
  • GPS integrated navigation
  • Antenna servo control
  • Laser range finder
  • Map for plotter
  • ROV underwater robot navigation
  • Oceanography measurement instruments
  • Special occasion robot



DCM301B&DCM302B PARAMETER
Compass heading The best heading accuracy(RMS) 0.5° tilt<10°
1.0° tilt<30°
2.0° tilt<40°
2.5° tilt<70°
Resolution 0.1°
Compass tilt parameter Pitch accuracy(RMS) 0.1°<15°(Measure range)
0.2°<30°(Measure range)
0.3°<60°(Measure range)
0.3°<85°(Measure range)
Pitch tilt range ±85°
Roll accuracy(RMS) 0.1°<15°(Measure range)
0.2°<30°(Measure range)
0.3°<60°(Measure range)
0.3°<85°(Measure range)
Roll tilt range ±85°
Resolution 0.1°
The best tilt compensation range <40°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Magnetic field interference calibration method Plane rotation in 1circle(2D Calibration)
Physical features Dimension L60×W59×H29mm
Weight PCB:20g,with shell:100g
RS-232/RS485/TTL interface connector 5PINconnector
Interface features Start delay <50MS
Maximum output rate 20Hz/s
Communication rate 2400 to 19200baud
Output format Binary high performance protocol
Power Power supply (Default)DC+5V
(Customized)DC9~36V
Current(Maximum) 40mA
Ideal mode 30mA
Sleep Mode TBD
Enviroment Operating range -40℃~+85℃
Storage temperature -40℃~+85℃
Resistance shock performance 2500g
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/times
Insulation ≥100M
Anti-shock 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
