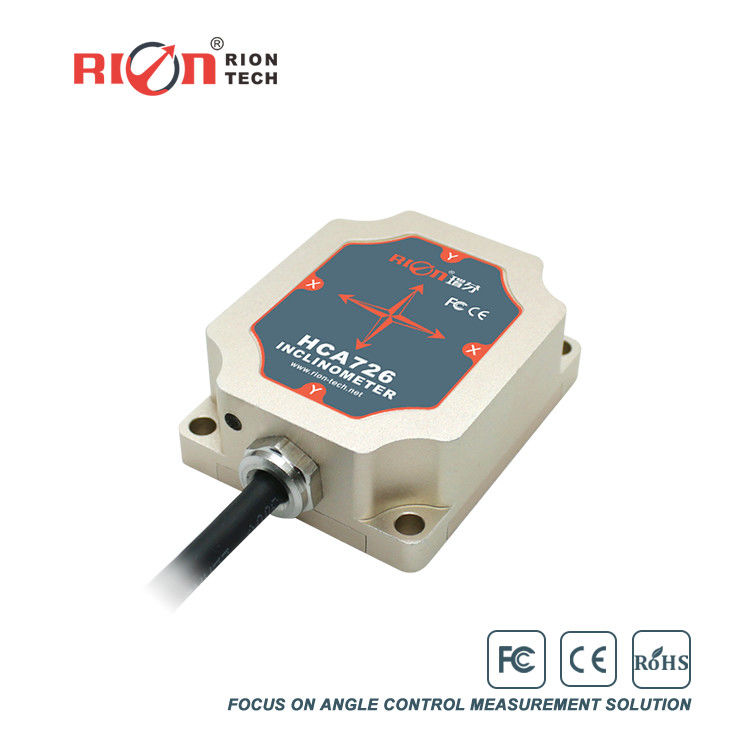

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: HCA716S / HCA726S

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $280.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

RS232 MEMS gyro sensor

,

CANbus Gyro Sensor

,

agricultural vehicle auto driving Gyroscope Sensor

Measure Range:
±10~±180°
Long Temp. Stability:
<0.02°
Resolution:
0.001°
Power On Time:
0.5S
Interface:
CAN2.0A/CAN2.0B
EMC:
According To EN61000 And GBT17626
MTBF:
≥98000 Hours/times
Insulation Resistance:
≥100M
Measure Range:
±10~±180°
Long Temp. Stability:
<0.02°
Resolution:
0.001°
Power On Time:
0.5S
Interface:
CAN2.0A/CAN2.0B
EMC:
According To EN61000 And GBT17626
MTBF:
≥98000 Hours/times
Insulation Resistance:
≥100M
Description
HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT



KEY FEATURES

 Single/dual Axis Inclinometer

 Measuring Range :±1±180° optional

 Accuracy: refer to the technical data

 Wide voltage input: DC936V

 Wide temperature working: -40+85℃

 Resolution: 0.001°

 IP67 protection class

 Highly anti-vibration performance >100g

 Direct lead cable interface

 Small size : 54×46×20.5mm(customized)



APPLICATION

 Monitoring of ancient buildings and dilapidated buildings

Monitoring of bridges and large lands

 Leveling of construction vehicles

 Mining machinery, oil drilling equipment
 Medical equipment angle control

 Railway gauge ruler and gauge leveling

 Underground drilling rig attitude navigation



▶ SPECIFICATIONS

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT 0HCA716/726-C2/C3

CONDITION

PARAMETER

UNIT

Measure range



±10

±30

±60

±90

±180

°

Measure axis



X Y

X Y

X Y

X Y

Vertical X axis

axis

Resolution



0.001

0.001

0.001

0.001

0.001

°

Measure accuracy

MAXE

Room temp.

0.008

0.01

0.01

0.02

0.02

°

RMSE

Room temp.

0.004

0.005

0.005

0.006

0.006

°

Long temp. stability



<0.02

<0.02

<0.02

<0.02

<0.02

°

Zero Temp.coefficient

-4085℃

±0.0005

±0.0005

±0.0005

±0.0005

±0.0005

°/℃

Sensitivity temp-coeffi

-4085℃

≤0.01

≤0.01

≤0.01

≤0.01

≤0.01

%/℃

Power on time



0.5

0.5

0.5

0.5

0.5

S

Response frequency



20

20

20

20

20

Hz

Interface

CAN2.0A/CAN2.0B

EMC

According to EN61000 and GBT17626

MTBF

98000 Hours/times

Insulation Resistance

≥100M

Shockproof

100g@11ms,3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms,101000Hz

Protection grade

IP67

Cables

Standard 1M length,wearproof,grease proofing,wide temperature,

Shielded cables 4*0.2mm2

Weight

≤150g (including 1 meter cable)

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT 1

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT 2

HCA716S / HCA726S A SMALL VOLUME HIGH-PRECISION  INCLINOMETER CAN2.0A/B OUTPUT 3
