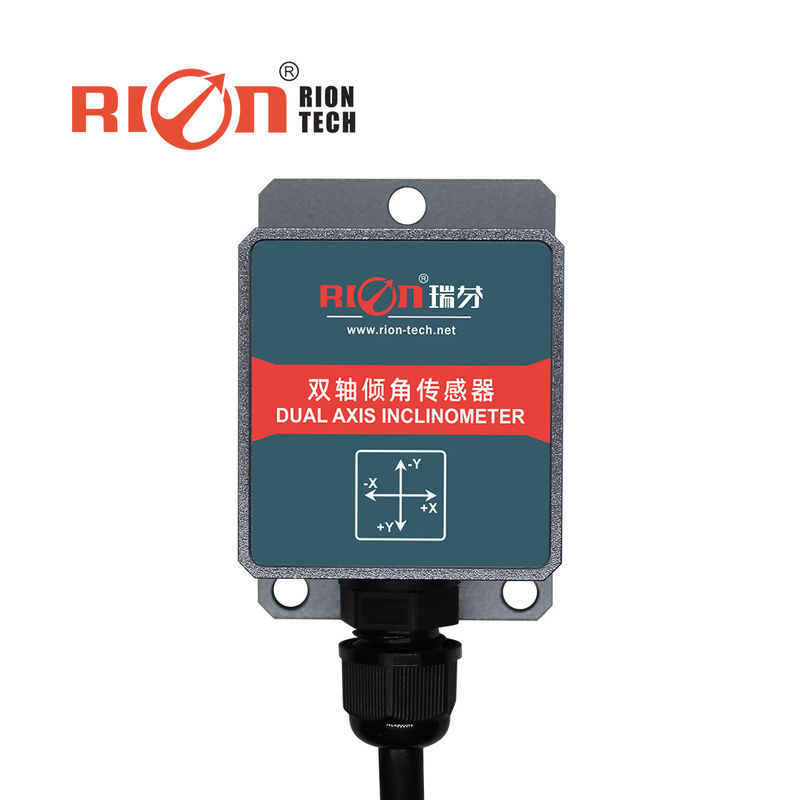

CE ROHS passed Low Cost Mini Single /dual axis Digital Angle Senosr Inclinomter RS232/RS485/TTL Modbus Tiltmeter China Factory
Download the datasheet here ...
LCA316T LCA326T serial port inclinometer angle sen...
▶ MAIN FEATURE
★ Single / dual axis inclination measurement
★ Resolution 0.02 °
★ Range ± 10 ～ ± 90 ° optional
★ Standard DC 5V power supply
★ Wide temp. operation -40 ～ + 85 ℃
★ IP67 protection level
★ Output mode RS232 / RS485 / TTL
★ Small size 55 × 37 × 24mm (customizable)
★ High anti-vibration performance> 3500g
▶ APPLICATION
★ Electric blind chair leveling
★ PTZ operation monitoring
★ Satellite antenna positioning
★ Medical equipment leveling
★ Car chassis measurement
★ Four-wheel positioning system
★ Various engineering machinery angle control
▶ PRODUCT INTRODUCTION
LCA316T / LCA326T series products are a new generation of digital small volume MEMS tilt sensor launched by RION Technology. It has a built-in dual-channel earth gravity tilt unit, which can be converted into tilt angle changes by measuring static gravity acceleration. So that the tilt angle of the sensor output relative to the horizontal plane can be measured. Output method RS232, RS485 or TTL. Because it is a built-in MCU control system, which correct the linearity of the sensor output twice, making up the accuracy drop for the analog type because of insufficient correction.
This product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. It is simple to use. Is industrial automation control,
It is an ideal choice for measuring posture of industrial automation console. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments. This product is mainly suitable for static and slow changing dynamic measurement, but not for fast changing dynamic measurement.
▶ PARAMETER TABLE
|
|
PARAMETER |
UNIT |
||||
|
Measure range |
|
±10 |
±30 |
±60 |
±90 |
° |
|
Measure axis |
|
X Y |
X Y |
X Y |
X Y |
Axis |
|
Resolution |
|
0.02 |
0.02 |
0.02 |
0.02 |
° |
|
Measure accuracy |
@25℃ |
0.1 |
0.1 |
0.1 |
0.1 |
° |
|
Zero Temp. coefficient |
-40～85℃ |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
°/℃ |
|
Sensitivity temp. coefficient |
-40～85℃ |
≤150 |
≤150 |
≤150 |
≤150 |
ppm/℃ |
|
Power on start time |
|
0.5 |
0.5 |
0.5 |
0.5 |
S |
|
response frequency |
|
20 |
20 |
20 |
20 |
Hz |
|
Output rate |
5Hz,15Hz,35Hz,50Hz, can be set |
|||||
|
Output signal |
RS232/RS485/TTL |
|||||
|
EMC |
According to EN61000 and GBT17626 |
|||||
|
MTBF |
≥98000 hours/times |
|||||
|
Insulation Resistance |
≥100 MΩ |
|||||
|
Shockproof |
100g@11ms,3 Axial Direction (Half Sinusoid) |
|||||
|
Anti-vibration |
10grms,10～1000Hz |
|||||
|
Protection grade |
IP67 |
|||||
|
Cables |
standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2 |
|||||
|
Weight |
≤135g (including 1 meter cable) |
|||||
