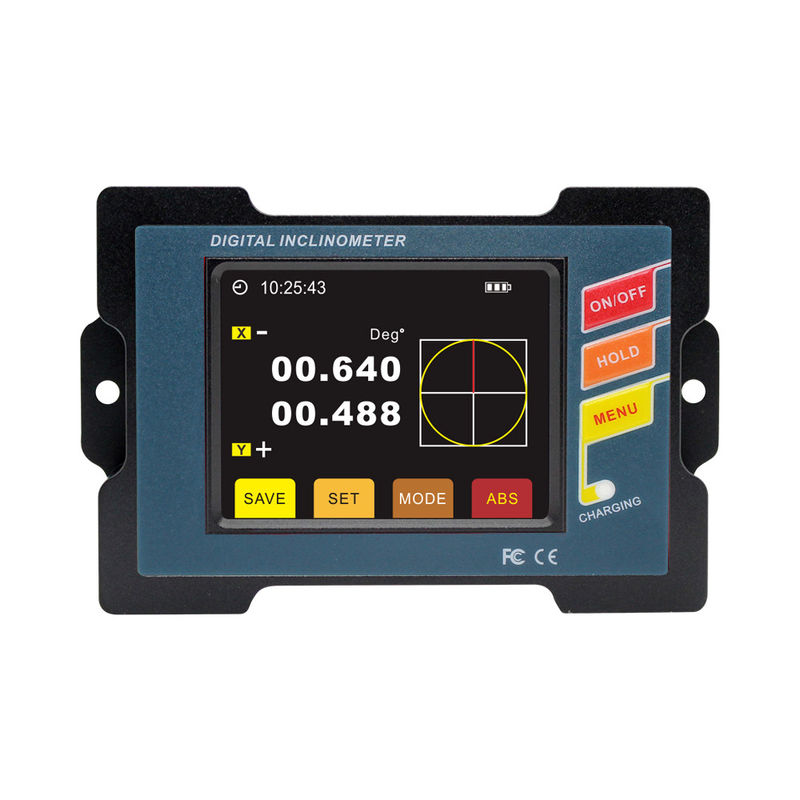

Touch Screen Digital Inclinometer Night Vision Display High Precision Angle Finder

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, RHOS

Model Number: DMI825-15

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $415.00/Pieces

Packaging Details: 1pcs inclinometer in each Each in a wooden box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, Paypal

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

RS485 Digital Inclinometer

,

Touch Screen Digital Inclinometer

,

RS232 Digital High Precision Inclinometer

Inclinometer Best Accuracy:
<0.002 °
Repeatability:
0.003°
Angle Resolution:
0.001°
Aximum M Easuring Range:
+/-30°
Working Temperature:
-10°~ +70℃
Protection:
IP654
Data Output:
RS485/RS232 (optional)
Warranty:
1 Years
Type:
Level Sensor
Usage:
Position Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
Inclinometer Best Accuracy:
<0.002 °
Repeatability:
0.003°
Angle Resolution:
0.001°
Aximum M Easuring Range:
+/-30°
Working Temperature:
-10°~ +70℃
Protection:
IP654
Data Output:
RS485/RS232 (optional)
Warranty:
1 Years
Type:
Level Sensor
Usage:
Position Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
Description
Touch Screen Digital Inclinometer Night Vision Display High Precision Angle Finder

64 True Colors Night Vision Display High Precision Angle FinderTouch Screen Slope Meter





FEATURES



● Best accuracy:<0.003°

● Repeatability:0.003°

● Maximum measuring range:±90°

● User can set the alarm value by himself

● Absolute/Relative measurement can switch

● Angle resolution:0.001°

● Working Temperature : -10°~ +70℃

● Auto temperature drift compensation

● User can calibrate ZERO by himself

● IP54 protection class

● °/mm/m Dual units switch function

● Filter frequency optional

● Three kinds of measurement mode selectable (radian, angle, mm) ● Data store function



APPLICATION



● Building construction

● Automobile four-wheel testing

● Road slope

● Machinery installation

● Piping installation

● Industrial platform

●Turntable testing

● Pan unit angle detection

● Production jig





TECHNICAL DATA



Touch Screen Digital Inclinometer Night Vision Display High Precision Angle Finder 0DMI825 Parameter
Angle Measuring range DMI825:±15 ° ; DMI825:±30 ° ;
MM measuring range 267 mm/m 577 mm/m
Meausring axis Dual axis Dual axis
The highest meausring accuracy

<0.005°

(Full measuring range)

<0.01°

(Full measuring range)

Angle Measuring resolution 0.001° 0.001°
MM measuring accuracy 0.1 mm/m 0.2 mm/m
Three measurement mode selectable radian, angle, mm measuring can be selected
MM measuring res 0.02 mm/m
LCD 64 true colors night vision display screen
LCD visible area size L57.6*W43.2mm
Working temperature -10°~ +70°/℃
Working humidity 85%RH
Equipped with PC software VC software
Data output signal RS485/RS232
Connect plug in Standard 5Pin USB connector
Shock resistance 10g@11ms,3Times/Axis(half sinusoid)
Shock impact 10grms,10~100Hz
Weight 300g
Waterproof grade IP54
Material Metal
Size L117*W75*H27.1mm



Touch Screen Digital Inclinometer Night Vision Display High Precision Angle Finder 1
