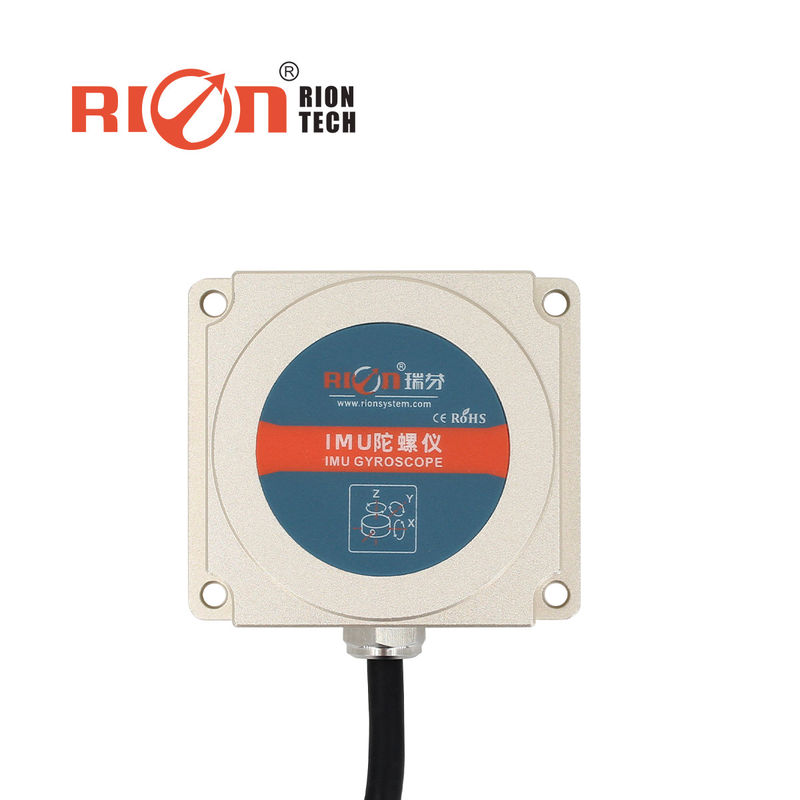

IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery

1
MOQ
$60.00/Pieces >=1 Pieces
Price
IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Agricultural Vehicle Auto Driving
Bandwidth: >100Hz
Resolution: 0.01°
Nonlinear: 0.1% Of FS
Gyro Range: 250°/s
Accelerometer Range: ±4g
Connector: RS232/RS485
Power Supply: 9~36v
High Light:

Gyro MEMS Gyroscope Sensor

,

IMU MEMS Gyroscope Sensor

,

CAN2.0 Gyro Sensor

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rion
Certification: CE, ISO
Model Number: TL725-CAN2.0
Payment & Shipping Terms
Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000 Piece/Pieces per Month
Product Description

Long life and strong stability Gyrosocope Sensor IMU CAN2.0 gyro Sensor For Automatic Agricultural Machinery





Download datasheet please click here

TL725D IMU GYRO - FARM MACHINERY VERSION RELATIVE ...





▶ INTRODUCTION

TL725D is a gyroscope IMU specialized in navigation applications for agricultural machinery automatic driving, with built-in industrial grade three-axis gyroscope and three-axis accelerometer.

This product is precise and efficient, and is an essential component of a new generation of automated precision agricultural control.



▶ FETURES

★ Horizontal relative heading and attitude angle output

★ Real-time angular rate output

★ Long life and strong stability

★ Forward axis acceleration

★ Compact and lightweight design

★ CAN2.0A/B output optional

★ All solid state

★ Light weight

★ DC9~36V power supply



▶APPLICATION

★ Automated agricultural machinery

★ Precision agriculture

★ Combination Harvesters

★ Farming machine





▶SPECIFICATION



IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery 0TL725D-C2/C3 PARAMETERS
Three-axis attitude relative heading ±180°,Roll angle ±180°,Pitch angle ±90°
Bandwidth >100Hz
Resolution 0.01°
Nonlinear 0.1% of FS
Gyro Range 300°/s
Zero bias instability of gyro (allan) 4.0°/h
Angle random walk coefficient (allan) 0.25 °/sqrt(h)
Three-axis accelerometer range ±4g
Accelerometer Acceleration resolution 0.001g
Acceleration accuracy 1mg
Bias instability (allan) 4.5°/h
Angular random walk coefficient (allan) 0.25°/sqrt(h)
Zero bias stability (10s mean) 8.5°/h
Gyro Bias instability (allan) 0.05mg
Speed random walk coefficient (allan) 0.015m/s/sqrt(h)
Zero bias stability (10s mean) 0.15mg
Startup time 250ms
Input voltage +9~36V
Current 35mA(12V)
Working temp -40 ~ +80℃
Storage temp -40 ~ +85℃
Vibration 5g~10g
Impact 200g pk,2ms,½sine
Working life 10 years
Output frequency 5Hz,15Hz,25Hz,35Hz,50Hz,100Hz, Settable
Output signal CAN 2.0A / CAN2.0B(Optional)
MTBF ≥50000 Hours/times
Insulation resistance ≥100 MΩ
Shockproof 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cable Standard 1 m 4 pin shield wire
Weight ≤160g (including 1 meter standard cable)





IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery 1



IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery 2





IMU CAN2.0 Gyro MEMS Gyroscope Sensor For Automatic Agricultural Machinery 4
