Product Details
Place of Origin: CHINA
Brand Name: RION
Certification: CE, ROHS , ISO
Model Number: ACA616T/ACA626T-MB
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: US$580.00/pcs
Packaging Details: 1pcs inclination sensor in each inner box , 80pcs in carton box
Delivery Time: 7-15 days
Payment Terms: T/T , Paypal , Alibaba.com
Supply Ability: 30000pcs per month
Tilt Sensor Material: |
Aluminum Oxide |
Range: |
±1～±90° Optional |
Power Supply: |
DC9～36V |
Resolution: |
0.001° |
Output Mode: |
RS232/RS485/RS422/TTL Optional |
Protection Grade: |
IP67 |
Output Rate: |
5Hz、15Hz、35Hz、50Hz Can Be Setting |
Output Signal: |
RS232/RS485/RS422/TTL |
Communiation Protocol: |
RION 68 , MODBUS |
MTBF: |
≥50000 Hours/times |
Weight: |
≤220g(without Cable) |
Tilt Sensor Material: |
Aluminum Oxide |
Range: |
±1～±90° Optional |
Power Supply: |
DC9～36V |
Resolution: |
0.001° |
Output Mode: |
RS232/RS485/RS422/TTL Optional |
Protection Grade: |
IP67 |
Output Rate: |
5Hz、15Hz、35Hz、50Hz Can Be Setting |
Output Signal: |
RS232/RS485/RS422/TTL |
Communiation Protocol: |
RION 68 , MODBUS |
MTBF: |
≥50000 Hours/times |
Weight: |
≤220g(without Cable) |

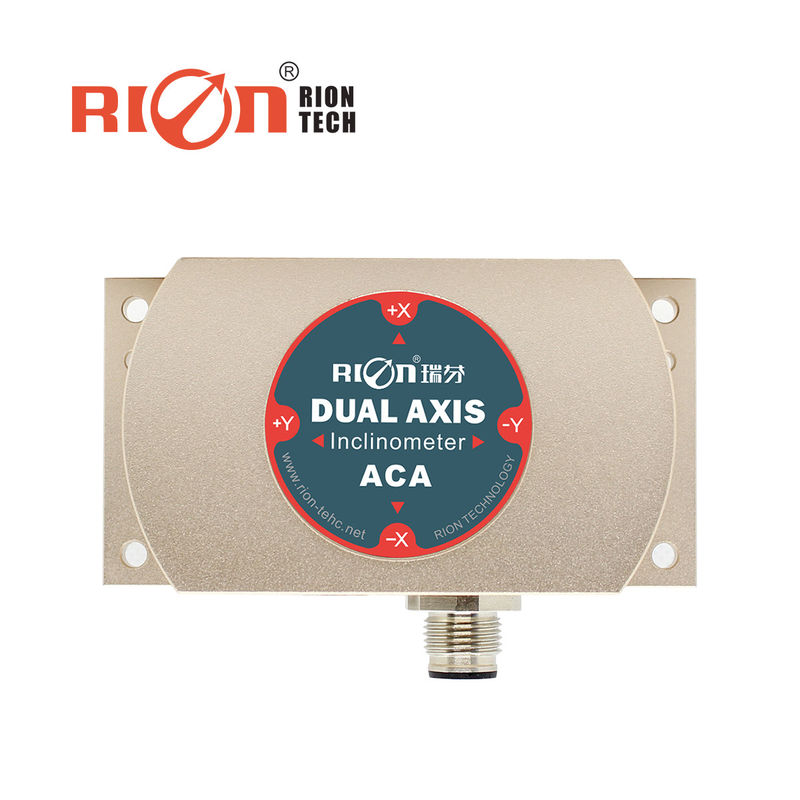

High Accuracy MODBUS Tilt Inclination Sensor 0.0004 Zero Temp. coefficient
▶ FEATURES
★ Single / dual axis inclination measurement
★ Measure Range :±1～±90° optional
★ Wide voltage input: 9～36V
★ Wide temperature working: -40～+85℃
★ IP67 protection grade
★ Highly anti-vibration performance >2000g
★ Resolution: 0.001°
★ Water-proof air-plug
★ Output mode RS232/RS485/RS422/TTLare optional
▶ APPLICATION
★ Engineering vehicles automatic leveling
★ Bridge & dam detection
★ Laser equipment position
★ Medical facilities angle control
★ Underground drill posture navigation
★ Railway gauging rule , gauge equipment leveling
★ Precise machine tool level control
★ Geological equipment inclined monitoring
| ACA616T/ACA626T |
CONDITIONS | PARAMETERS | UNIT | |||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measure axis | X/XY | X/XY | X/XY | X/XY | AXIS | |
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° | |
| Measure accuracy | 0.003 | 0.01 | 0.02 | 0.03 | ° | |
| Long term stability | 0.01 | 0.02 | 0.03 | 0.04 | ° | |
| Zero Temp. coefficient | -40~+85℃ | ±0.0004 | ±0.0004 | ±0.0004 | ±0.0004 | °/℃ |
| Sensitivity temp-coeffi | -40~+85℃ | ≤50 | ≤50 | ≤50 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 20 | 20 | 20 | 20 | Hz | |
| Output rate | 5Hz,15Hz,35Hz,50Hz can be setting | |||||
| output signal | RS232/RS485/RS422/TTL | |||||
| Communication protocol | Refine 68 protocol / MODBUS protocol | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector | |||||
| Weight | ≤220g(without cable) | |||||
