HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

Name: HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCA796L
Price: 143.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: HCA796L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $285.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Agriculture 9 Axis Gyro Sensor, AGM 9 Axis Gyro Sensor, CAN2.0 Triaxial Gyro


Measure Range:	＜±15/＜±90°	Measure Axis:	X Y Axis
Resolution:	0.001°	Long Term Stability:	<0.01°
Power On Time:	0.5s	Response Time:	0.02s
Output Signal:	RS485	Power Supply:	6~15v

Measure Range:	＜±15/＜±90°
Measure Axis:	X Y Axis
Resolution:	0.001°
Long Term Stability:	<0.01°
Power On Time:	0.5s
Response Time:	0.02s
Output Signal:	RS485
Power Supply:	6~15v

Description

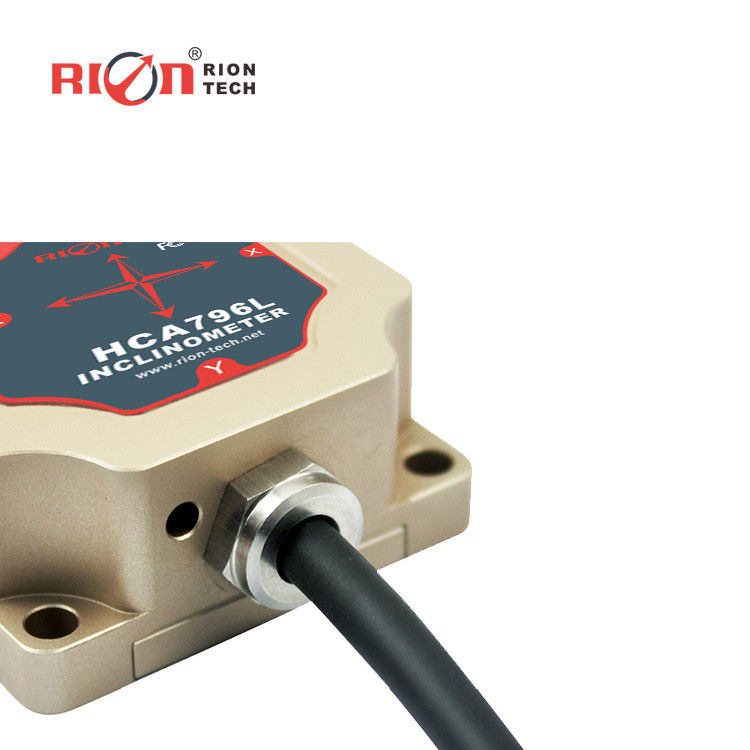

HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001°

▶ GENERAL DESCRIPTION

HCA796L is a small-volume high-precision dual-axis inclinometer developed by RION Technology for industrial field control. It is professionally used in industrial engineering industries such as foundation pit tilt measurement, monitoring, and bridge inspection. Strong stability, high accuracy, excellent temperature drift performance, long-term stability is less than 0.01 degrees. At the same time, the roll angle and pitch angle of the sensor can be solved through the 5th order filtering algorithm and the compound calculation of the 3-axis gravity. Each product corrected by the error of the three-axis cross axis through a multi-sided turntable inside the factory to ensure that the product has the smallest influence between the measuring axes when the product is in a large range. The product has a built-in RS485 interface, and the interface integrates a protection circuit to ensure that it will not affect the 485 bus. The power supply also uses multi-level voltage regulation and overvoltage and overcurrent protection circuits. The product belongs to a real industrial grade product with reliable performance and good scalability, suitable for various harsh industrial control environments.

▶ FEATURES

★ Dual axis measurement

★ Measure range ±90°

★ Size: 56×46×20.5mm

★ Resolution 0.001°

★ DC 6~15V wide voltage input

★ IP67 protection level

★ Direct lead interface

★ High vibration resistance> 100g

★ Wide temperature operation -40~+85℃

▶ APPLICATION

★ Foundation pit tilt detection

★ Railway locomotive monitoring

★ Oil drilling equipment inspection

★ Bridge pier monitoring

★ Underground drilling rig attitude inspection

★ Application of shield jacking

★ Direction measurement based on dip angle

★ Geological equipment tilt monitoring

★ Various construction machinery inclination angle measurement

▶ SPECIFICATIONS

HCA796L	CONDITION		PARAMETER			UNIT
Measure range		＜±15		＜±90	°
Measure axis		X Y		X Y	Axis
Resolution		0.001		0.001	°
Measure accuracy	@25℃	0.01		0.03	°(RMS)
Long term stability		<0.01		<0.01	°
Zero Temp.coefficient	-40～85℃	0.0008		0.0008	°/℃
Sensitivity temp. coefficient	-40～85℃	≤0.01		≤0.01	%/℃
Power on time	0.5s
Response time	0.02s
Response frequency	>20HZ
Output signal	RS485
Communication protocol	MODBUS RTU protocol
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 1m length, wear-resistant, oil-proof ,wide temperature, shielded cable 4*0.4mm2
Weight	≤ 150g (including 1m cable)

▶ MEASURING DIRECTIONS

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically , for installation please refer to the following scheme.

HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001° 1

▶ PRODUCTION INSTALLATION NOTES

Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line"::1)The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error.

2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible.

HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001° 2

▶ COMMUNICATION PROTOCOL

1. Protocol type: MODBUS protocol

Communication format: Format: 1 start bit, 8 data bits, no parity bit, 1 stop bit; the default baud rate is 9600.

Frame format:

HCA796L-T LOW POWER CONSUMPTION INCLINOMETER IP67 RESOLUTION 0.001° 3
