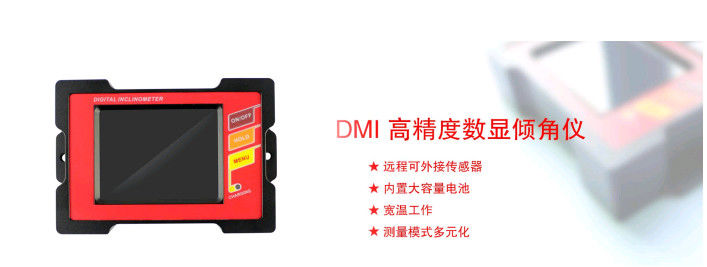

Touch Screen Dual Axis Digital Inclinometer , Accurate Measuring Digital Tilt Sensor

Hot Selling Accurate Measuring Dual axis TOUCH SCREEN digital Inclinometer mm/m Tilt Sensor

Click below for download datasheet of DMI825 digital inclinometer

DMI825 Dual axis digital inclinometer.pdf

Features:

• Best accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Maximum measuring range:±30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Working Temperature : -10°~ +70℃
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• IP54 protection class
• deg, deg/min/sec,  mm/m three modes shift function
• Filter frequencyoptional

Application :

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

Specification



DMI825	Parameter
Angle Measuring range	DMI825:±15 ° ;	DMI825:±30 ° ;
MM measuring range	267 mm/m	577 mm/m
Meausring axis	Dual axis	Dual axis
The highest meausring accuracy	<0.005° (Full measuring range)	<0.01° (Full measuring range)
Angle Measuring resolution	0.001°	0.001°
MM measuring accuracy	0.1 mm/m	0.2 mm/m
Three measurement mode selectable	radian, angle, mm measuring can be selected
MM measuring res	0.02 mm/m
LCD	64 true colors night vision display screen
LCD visible area size	L57.6*W43.2mm
Working temperature	-10°～ +70°/℃
Working humidity	85%RH
Equipped with PC software	VC software
Data output signal	RS485/RS232
Connect plug in	Standard 5Pin USB connector
Shock resistance	10g@11ms,3Times/Axis(half sinusoid)
Shock impact	10grms,10～100Hz
Weight	300g
Waterproof grade	IP54
Material	Metal
Size	L117*W75*H27.1mm



▶ ORDERING INFORMATION

Item No.	Desc.
DMI825-15	Standard dual-axis digital display inclinometer ±15°
DMI825-30	Standard dual-axis digital display inclinometer ±30°

SHELL STRUCTURE : metal casing;

DISPLAY AREA : 64 color true color luminous display;

FIXED INSTALLATION : can be fixedly mounted on the object to be measured;

USB/CHARGING HOLE : For charging and USB1.1 output data;

RESET HOLE : If the instrument crashes during work, the button cannot be operated, and the hard object can be inserted into the hole for resetting;

ON/OFF : Press 2 seconds to turn on or off;

HOLD : This button locks the current data for customer record;

MENU : Press MENU to disappear the menu and press again;

CHARGING : The charging indicator light, when it is lit, indicates that the battery is fully charged when the battery is off, and the charger can be removed. (In order not to reduce the battery life, please try not to use it when charging).

Products maintenance :

1. The instrument reliability and can be used in the vibration environment, please don’t  high-altitude fall the instrument to avoid cause permanent damage.

2. If found instrument damage please don’tdisassemble it by yourself, please contact us at  first for professional guidance , such as personal removed , subject to manufacturer shall refuse to repair.

Warning :

1.This producthas a high precision sensor and information processing circuit, it is forbidden to drop impact or to tear open outfit, otherwise the consequence is proud.

2. Don't press the multiple keys at the same time, it is easy to affect the service life of the

Product.

3.This product should be placed ina safe place where Children can not touch.
