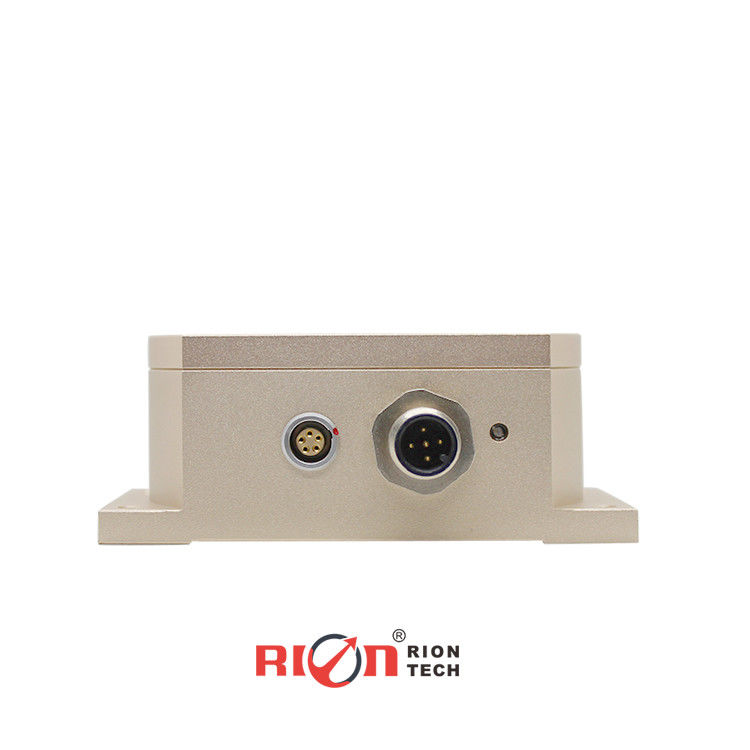

ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT

Product Details

Place of Origin: Guangdong, China

Brand Name: Rion

Certification: CE, ISO

Model Number: TL720D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $680.00/Pieces >=1 Pieces

Packaging Details: 1pcs/box with sponge inside, 100pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,Paypal

Supply Ability: 3000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

Farming Machine Gyroscope

,

36VDC IMU Sensor

,

Farming Machine IMU Sensor

Measure Range:
±10/30/60°
Measure Axis:
X/XY AXIS
Resolution:
0.001°
Measure Accuracy:
0.003/0.01/0.02°(RMS)
Long Term Stability:
0.01/0.02/0.03°
Power On Time:
0.5S
Interface Type:
CAN 2.0A
Power Supply:
9~36v
Measure Range:
±10/30/60°
Measure Axis:
X/XY AXIS
Resolution:
0.001°
Measure Accuracy:
0.003/0.01/0.02°(RMS)
Long Term Stability:
0.01/0.02/0.03°
Power On Time:
0.5S
Interface Type:
CAN 2.0A
Power Supply:
9~36v
Description
ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT

ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT


ACA616T/ACA626T-CAN2.0A Tilt Sensor
High-Precision Inclination Measurement Solution


Product Overview

Developed by RION Technology, this temperature-compensated (±0.0005°/℃) single/dual-axis tilt sensor features:

  • CAN 2.0A output with 24-bit A/D conversion

  • Wide operational range: -40°C to +85°C

  • Shock/vibration resistant (>2000g)

  • IP67 waterproof design

  • Non-contact installation (screw-mount)


Key Specifications

Parameter Value
Measurement Range ±1° to ±60° (configurable)
Resolution 0.001°
Input Voltage 9-36V DC
Dimensions 92×48×36mm

Applications

  • Structural monitoring (bridges/dams)

  • Vehicle/machine leveling

  • Laser alignment & medical equipment positioning

  • Underground drilling guidance

  • Railway track maintenance

  • Precision tool calibration

Engineered for industrial environments requiring reliable inclination data.


ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT 0ACA616T/626T-C2

Conditions

Parameters

Unit

Measure range



±10

±30

±60

°

Measure axis



X/XY

X/XY

X/XY

AXIS

Resolution



0.001

0.001

0.001

°

Measure accuracy

@25℃

0.003

0.01

0.02

°(RMS)

Long term stability



0.01

0.02

0.03

°

Zero Temp. coefficient

-40~+85℃

±0.0004

±0.0004

±0.0004

°/℃

Sensitivity temp-coeffi

-40~+85℃

≤100

≤100

≤100

ppm/℃

Power on time



0.5

0.5

0.5

S

Response frequency

20Hz

Output rate

20Hz

Interface type

CAN 2.0A

EMC

According to EN61000 and GBT17626

MTBF

98000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms,3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms,101000Hz

Protection grade

IP67

Cables

Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector

Weight

235g(without cable)


ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT 1
ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT 2
ACA616T/626T-CAN2.0A OUTPUT TILT SENSOR HIGH-PRECISION IP67 WIDE VOLTAGE INPUT 3
