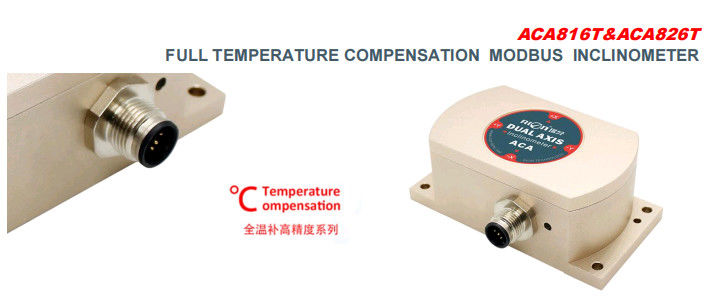

RION High Reliable MODBUS Tilt Sensor 0.0007 Resolution Dual axis Inclinometer for DAM monitoring
Click here below for download datasheet of ACA826T-MB
ACA816T ACA826T 2 axis high accuracy tilt sensor.p...
▶ TECHNICAL DATA
| ACA826T | CONDITIONS | PARAMETERS | UNIT | |||
| Measure range | ±03 | ±10 | ±15 | ±30 | ° | |
| Measure axis | X/XY | X/XY | X/XY | X/XY | axis | |
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | |
| Measure accuracy | @25℃ | 0.002 | 0.003 | 0.005 | 0.01 | ° |
| Long term stability | 0.01 | 0.01 | 0.02 | 0.02 | ||
| Zero temp coefficient | -40～85° | ±0.0002 | ±0.0002 | ±0.0002 | ±0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | S | |
| Output rate | 5Hz,15Hz,35Hz,50Hz Can be setting | |||||
| Ouput signal | RS232/RS485/RS422/TTL | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000hours/times | |||||
| Insulation Resistance | ≥100M | |||||
| Shockproof | 100g@11ms,Times/Axis(half sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables |
Standard 1M length,wearproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector |
|||||
| Weight | 235g(without cable ) | |||||
*This performance parameters only cover the measurement ranges of ±03°, ±10°,±15°, and ±30°. For other measurement ranges, please refer to the nearest parameters.
▶ APPLICATION
▶ ELECTRONIC CHARACTERISTICS
| PARAMETERS | CONDITIONS | MIN | STANDARD | MAX | UNIT |
| Power supply | standard | 9 | 12,24 | 36 | V |
| customized | Other voltage | V | |||
| Working current | 12V | 40 | mA | ||
| 24V | 22 | mA | |||
| Working temperature | -40 | +85 | ℃ | ||
| Store temperature | -40 | +85 | ℃ |
▶ PRODUCT INSTALLATION DIRECTION
▶ Dimension
