2 In 1 Super Dual Mode Digital Inclination Meter For Automobile Four Wheel Testing

RION 2 in 1 Super High Accuracy Dual Mode Digital Inclination Measuring Insturment for Automobile four-wheel testing

Click here below for download full specification of DMI610 digital inclinometer

DMI610 DIGITAL DISPLAY INCLINOMETER.pdf

▶ FEATURES

★ Best accuracy:<0.02°                                               ★ Repeatability:0.004°

★ Maximum measure range:±90°                               ★ Data store function

★ Absolute/Relative measurement can switch             ★ Both sides and bottom can measure

★ Three surface datum strong magnetic installation    ★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function        ★ Auto temperature drift compensation

★ User can calibrate ZERO by himself                         ★ Night vision fours colors screen

★ Three kinds of measurement mode selectable (radian, angle, mm/m)  ★ Angle resolution:0.001°

▶ APPLICATION

★ Building construction          ★ Automobile four-wheel testing           ★ Road slope

★ Machinery installation        ★ Piping installation                               ★ Industrial platform

★ Turntable testing                ★ Pan unit angle detection                    ★ Production jig

▶ SPECIFICATIONS

DMI610	PARAMETERS
Angle measure range	±90°	±30°
Measure axis	Single axis	Dual axis
Best accuracy(RMS)	<0.02°(Full range)	<0.005°(Full range)
Angle measure resolution	0.001°	0.001°
Repeatability	0.004°	0.004°
Measurement mode	radian, angle, mm/m three modes can be set
LCD	64 true colors night vision display screen
LCD visible area size	L60.5*W45mm
Working temperature	-10℃~+70℃
Working humidity	85%RH
Power supply	One 2A AA battery or AA NiMH rechargeable battery
Ideal working time	6Hours
Shock resistance	10g@11ms,3 Axial Direction (Half Sinusoid)
Shock impact	10grms,10～100Hz
Weight	600g
Waterproof grade	IP65
Material	Anodic oxidation of aluminum alloy
Size	L115*W95*H32mm
Precautions	In order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification)

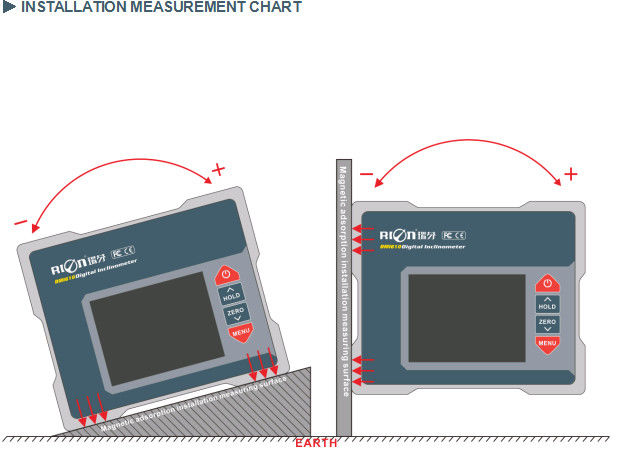

▶ INSTALLATION MEASUREMENT CHART

▶ PRODUCT FUNCTIONS

* Function menu operation instructions

1. ON/OFF

Long press about 3 seconds, hear "honk"..." Release, start / close

2. HOLD Lock, unlock or move up

When the main interface has no menu display, press “ HOLD” button is locked,

and repress “ HOLD” is unlock . The upper right corner of the display unit

has icon display,when the main interface has menus or other interfaces, it

can move up .

3. ZERO Set and cancel zero / downward movement

In the absence of menu on the main interface, press the “ZERO” button to set, cancel the zero, show "ABS" for the absolute zero,

and show "REL" when the relative zero point is displayed".When the main interface has a menu, press the ZERO key for the downward function.

4. MENU Menu or confirm

When the main interface has no menu display, when the “ MENU” is pressed, the menu is displayed.

When the main interface has menu display and other interface, the MENU key is "definite" function.

In the main interface boot, default is no menu display, shutdown is not saved.

5. Battery compartment

1*AA battery, when mounting battery, the positive placed inside.

6. Metal antiwear shell

Anti wear Aluminum Alloy shell, the bottom left both sides for magnetic surface.
