Model Number: ACA628T-15
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, PayPal
Supply Ability: 1000/month
Measure Range: |
1~30° |
Measure Axis: |
Dual Axis |
Resolution: |
0.0007° |
Temperature Drift: |
0.0005°/℃ |
Long Term Stability: |
0.01°~0.04° |
Weight: |
235g |
Response Frequency: |
20Hz |
Measure Range: |
1~30° |
Measure Axis: |
Dual Axis |
Resolution: |
0.0007° |
Temperature Drift: |
0.0005°/℃ |
Long Term Stability: |
0.01°~0.04° |
Weight: |
235g |
Response Frequency: |
20Hz |

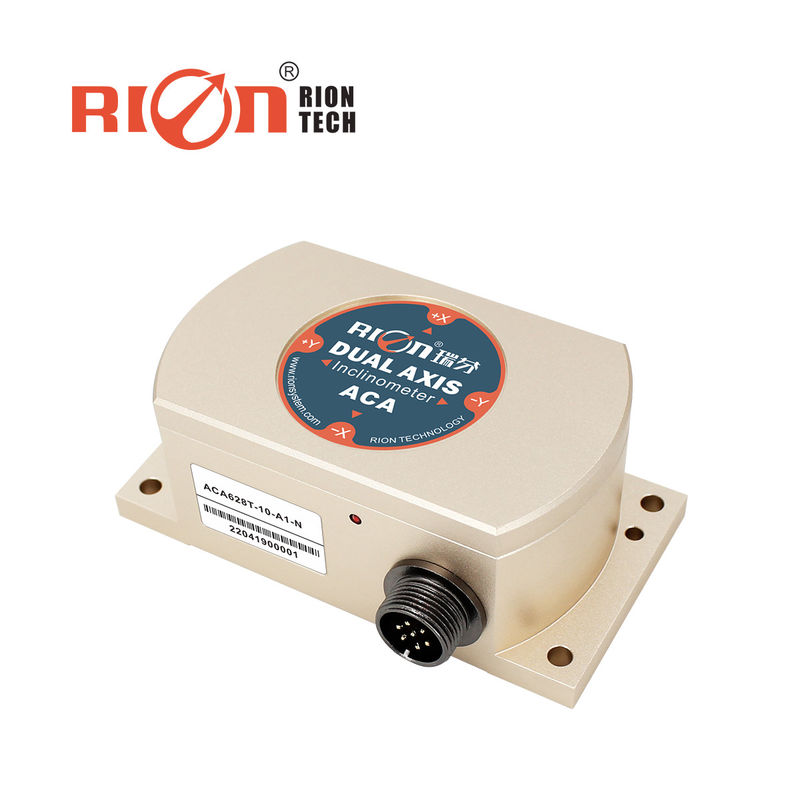

Building Inclination Sensor Temperature Compensation Dual Axis Tilt Meter For Bridge Dam Tilt Measure
ACA610T is a high precision & full temperature compensation inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA610T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to ±0.0008°/℃ ,normal temperature small measuring range the most accurate up to 0.003°, in domestic the counterparts products with absolute competitive advantage.Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial fields !
▶ TECHNICAL DATA
| ACA618T/628T-N | Conditions | Parameters | Unit | ||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ° | ||
| Measure axis | X / XY | X / XY | X / XY | X / XY | axis | ||
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA | |
| Resolution | 0.0007 | 0.0007 | 0.0007 | 0.0007 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.003 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° | |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ | |
| Sensitivity temp-coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ | |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | ||
| Response frequency | 20Hz | ||||||
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥98000 hours/times | ||||||
| Insulation Resistance | ≥100MΩ | ||||||
| Shockproof | 100g@11ms,3 axial direction (half sinusoid) | ||||||
| Anti-vibration | 10grms,10～1000Hz | ||||||
| Protection grade | IP67 | ||||||
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g | ||||||
| Weight | ≤260g(without cable ) | ||||||
▶ FEATURES
▶ APPLICATION
▶ ELECTRICAL CONNECTION
SINGLE AXIS ELECTRICAL CONNECTION
| Wire Color function | RED | WHITE | GREEN | BLACK | GRAY |
|
DC11.5~36V Power supply positive |
Out X X axis output current |
NC |
GND Power supply negative |
Signal GND |
▶ Dimension
ACA618T ACA628T-N HIGH ACCURACY CURRENT INCLINOME...
