HCM605B Azimuth Heading Finder 3D Digital Compass For Marine Navigation Surveying

Name: HCM605B Azimuth Heading Finder 3D Digital Compass For Marine Navigation Surveying
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: HCM605B-485
Price: 540.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM605B-485

Payment & Shipping Terms

Minimum Order Quantity: 1 Units

Price: $540.00/Units

Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 1000 pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              9 Axis 3D Digital Compass, Satellite Antenna Search Digital Compass, Marine Navigation Surveying Digital Compass


Heading Accuracy:	0.3°	Roll Measure Range:	±180°
Tilt Resolution:	0.1°	Tilt Accuracy:	<0.2°(Full Range)
Pitch Range:	+/-85°	Digital Compass MTBF:	≥40000 Hours/time
Production:	IP67	Dimension::	L110×W19.5×H19.5mm

Heading Accuracy:	0.3°
Roll Measure Range:	±180°
Tilt Resolution:	0.1°
Tilt Accuracy:	<0.2°(Full Range)
Pitch Range:	+/-85°
Digital Compass MTBF:	≥40000 Hours/time
Production:	IP67
Dimension::	L110×W19.5×H19.5mm

Description

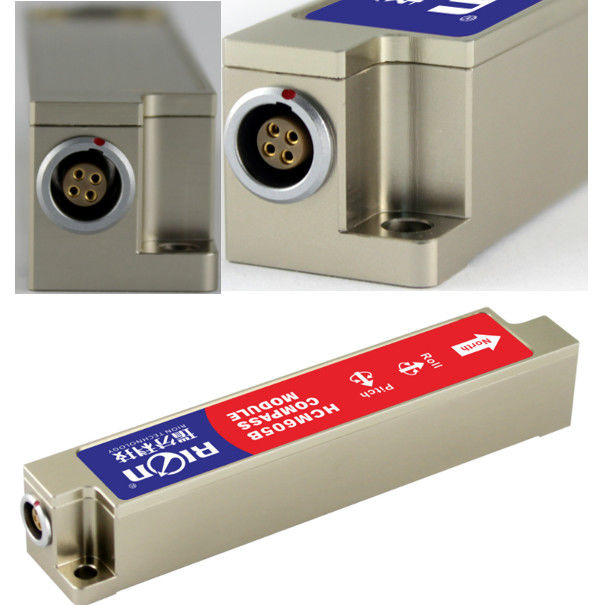

HCM605B Azimuth Heading Finder 3D Digital Compass For Marine Navigation Surveying

HCM605B Azimuth Heading Finder 3D Digital Compass For Marine Navigation Surveying

▶ FEATURE

★ Heading Accuracy: 0.3°～0.5°

★ Roll Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Wide Temp.Range: -40℃～+85℃

★ Dimension: L110×W19.5×H19.5mm

★ With Hard-Soft Magnetic And Tilt Compensation

★ RS232/RS485/TTL

▶ APPLICATION

★ Satellite Antenna Search Satellite

★ Marine Navigation Surveying And Mapping

★ Gps Integrated Navigation

★ Antenna Servo Control

★ Infrared Imager

★ Laser Range Finder

★ Map For Plotter

★ Rov Underwater Robot Navigation

★ Oceanography Measurement Instruments

★ Special Occasion Robot

HCM600B/HCM605B parameters
heading	Heading accuracy	0.5° tilt<10°
heading	Resolution	0.1°
Tilt parameters	Pitch accuracy	0.1°<15°(measure range)
		0.1°<30°(measure range)
		0.1°<60°(measure range)
		0.2°<85°(measure range)
	Pitch range	±85°
	Roll accuracy	0.1°<15°(measure range)
		0.1°<30°(measure range)
		0.1°<60°(measure range)
		0.2°<180°(measure range)
	Roll range	±180°
	Resolution	0.1°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic interference calibration	Rotate 360deg horizontally; vertical rotation(option)
Physical feature	Size	L111.5×W19.5×H19.5mm
	Weight	≤85g(exclude cable)
	RS232/RS485/TTL	5PIN quick plug connector
interface	Start delay	<50ms
	Max output speed	20Hz/s
	Communication speed	2400 to 115200baud (default 9600)
	Output format	Binary High-performance Protocol
Power	Power voltage	(default) DC+5V
	Current(max)	30mA
	Ideal mode	26mA
	Hibernate mode	TBD
Environment	Operating range	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Vibration resistance	100g
	Protection	IP67
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥40000 hours/time
Insulation resistance	≥100mego-ohm
Impact resistant	100g11ms, 3 Axial Direction (Half Sinusoid)
Anti-Vibration	10grms, 10~1000Hz
