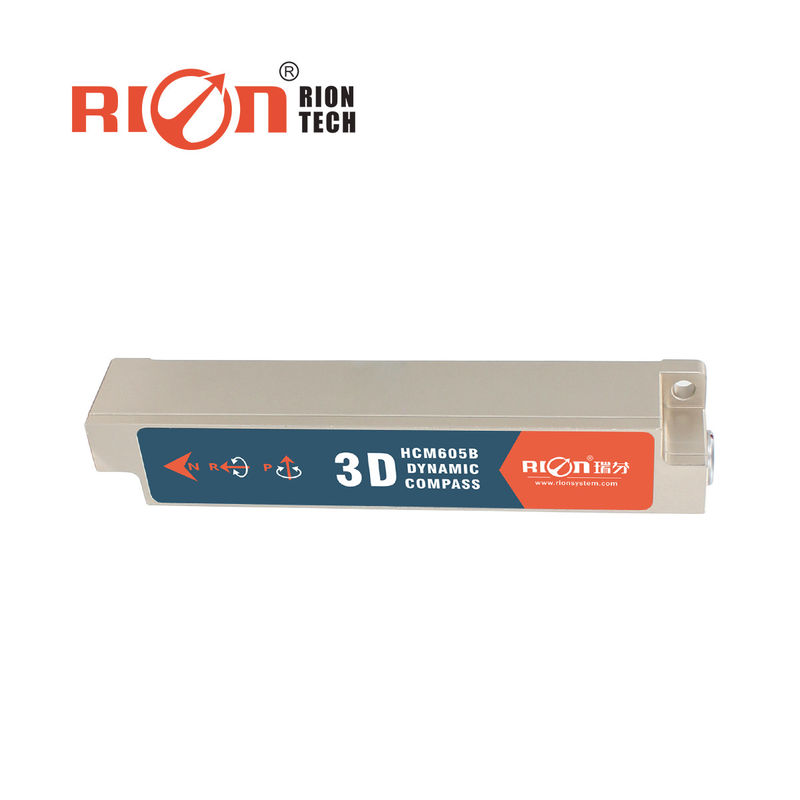

HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: HCM605B

Payment & Shipping Terms

Minimum Order Quantity: 1 Units

Price: $540.00/Units

Packaging Details: 1pcs digital compass in each inner box , 200pcs /ctn

Delivery Time: 7 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 1000 pcs per month

Get Best Price
Contact Now
Specifications
Highlight:

Electronic Azimuth Compass Sensor

,

High Precision IMU Compass

,

Marine Navigation IMU Compass

Heading Accuracy:
0.3°~0.5°
Roll Measure Range:
±180°
Tilt Resolution:
0.1°
Tilt Accuracy:
<0.2°(Full Range)
Working Tempaccuracy:
-40℃~+85℃
Pitch Range:
+/-85°
Digital Compass MTBF:
≥40000 Hours/time
Production:
IP67
Heading Accuracy:
0.3°~0.5°
Roll Measure Range:
±180°
Tilt Resolution:
0.1°
Tilt Accuracy:
<0.2°(Full Range)
Working Tempaccuracy:
-40℃~+85℃
Pitch Range:
+/-85°
Digital Compass MTBF:
≥40000 Hours/time
Production:
IP67
Description
HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation
HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation





PRODUCT INTRODUCTION

HCM600/HCM605 is a dynamic and high-precision 3 axis electronic compass, with high performance, reliability, small size and low power consumption, it is suitable for measuring attitude and heading angles in many fields such as antenna stability and vehicles. User can order complete product with housing (up to IP67 waterproof level) or compass module.



FEATURE

★ Heading Accuracy: 0.3°~0.5°

★ Roll Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Wide Temp.Range: -40℃~+85℃

★ Dimension: L110×W19.5×H19.5mm

★ With Hard-Soft Magnetic And Tilt Compensation

★ RS232/RS485/TTL



APPLICATION

★ Satellite Antenna Search Satellite

★ Marine Navigation Surveying And Mapping

★ Gps Integrated Navigation

★ Antenna Servo Control

★ Infrared Imager

★ Laser Range Finder

★ Rov Underwater Robot Navigation

★ Oceanography Measurement Instruments

★ Special Occasion Robot





HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation 0HCM600B/HCM605B parameters
heading Heading accuracy 0.5° tilt<10°
Resolution 0.1°
Tilt parameters Pitch accuracy 0.1°<15°(measure range)
0.1°<30°(measure range)
0.1°<60°(measure range)
0.2°<85°(measure range)
Pitch range ±85°
Roll accuracy 0.1°<15°(measure range)
0.1°<30°(measure range)
0.1°<60°(measure range)
0.2°<180°(measure range)
Roll range ±180°
Resolution 0.1°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Magnetic interference calibration Rotate 360deg horizontally; vertical rotation(option)
Physical feature Size L111.5×W19.5×H19.5mm
Weight ≤85g(exclude cable)
RS232/RS485/TTL 5PIN quick plug connector
interface Start delay <50ms
Max output speed 20Hz/s
Communication speed 2400 to 115200baud (default 9600)
Output format Binary High-performance Protocol
Power Power voltage (default) DC+5V
Current(max) 30mA
Ideal mode 26mA
Hibernate mode TBD
Environment Operating range -40℃~+85℃
Storage temperature -40℃~+85℃
Vibration resistance 100g
  Protection IP67
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/time
Insulation resistance ≥100mego-ohm
Impact resistant 100g11ms, 3 Axial Direction (Half Sinusoid)
Anti-Vibration 10grms, 10~1000Hz





Size

HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation 1

HCM605B High Precision Nine Axis Electronic Azimuth Compass Sensor Marine Navigation 2
