Tilt Sensor Single Axis Inclinometer For Solar Tracking Angle Measure

USD 30/pcs
Tilt Sensor Single Axis Inclinometer For Solar Tracking Angle Measure
Features Gallery Product Description Request A Quote
Measuring Axis: X/Y, XY
Power Supply: DC 9~36V
Measuring Range: 90
Best Accuracy: <0.1°
Angle Resolution: 0.1°
Working Temperature: -40°~ +85℃
Size: 61*35*21mm
Weight: 60g Without Cable
High Light:

DC 9V Single Axis Inclinometer


36V Single Axis Inclinometer


Solar Tracking Tilt Sensor Inclinometer

Basic Infomation
Place of Origin: CHINA
Brand Name: RION
Certification: CE, ISO
Model Number: MCA416T-60
Payment & Shipping Terms
Packaging Details: carton box, 10 x 5 x 3cm
Delivery Time: 5~7
Payment Terms: T/T, Paypal
Supply Ability: 2000pcs/month
Product Description

Single Axis Tilt Inclinometer Sensor For Solar Tracking Angle Measure


MCA410/420T series tilt sensor is a new low cost tilt angle measurement product developed independently by RION. It adopts the latest anti_interference platform design and integrates a new micro_mechanical sensing unit. It has wide working temperature, excellent anti_vibration and long_term stable and reliable performance.This product adopts the non_contact principle to measure the tilt angle. The internal capacitive micromechanical unit measures the component generated by the gravity of the earth to solve the realtime tilt angle. The installation is simple and convenient. It only needs to be fixed on the object being messured and there is no need to find fixed shaft and rotating shaft. Variety of installation methods could meet customer different measurement needs. It is an ideal sensor for construction machinery vehicles, agricultural machinery, solar tracking and other industrial equipments.



  • Solar photovoltaic tracking control system
  • Concentration tracking control system
  • CSP tracking control system

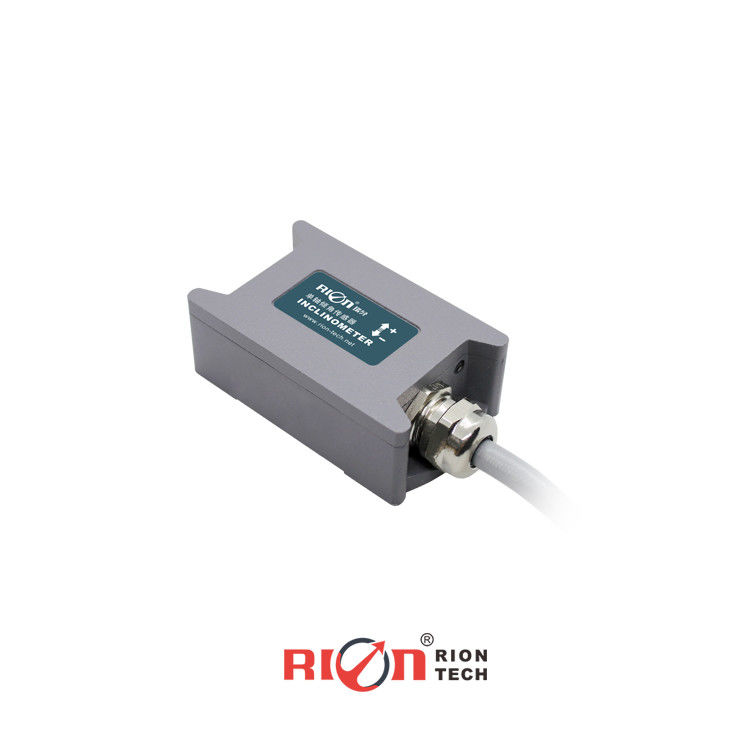

Tilt Sensor Single Axis Inclinometer For Solar Tracking Angle Measure 0


  • single axis
  • measuring range ±180°
  • accuracy:±0.3°
  • DC 9~36V input
  • working temp-40~+85℃
  • resolution: 0.1°
  • IP67
  • anti-shock>2000g
  • direct lead interface



Measure range / ±180 °
Measure axis / X/Y/XY axis
Resolution / 0.1 °
Absolute accuracy @25℃ 0.3 °
Zero temp. coefficient -40~85° ±0.4 °/℃
Output Interface 0~5V
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation resistance ≥100 megohm
Anti-impact 100g@11ms,three axes direction(half sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof grade IP67
Housing material Sand-grinding oxidation of aluminum alloy
Screw Three M4 screws
Cable Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2
Weight 60g (exclude cable)























Tilt Sensor Single Axis Inclinometer For Solar Tracking Angle Measure 1
