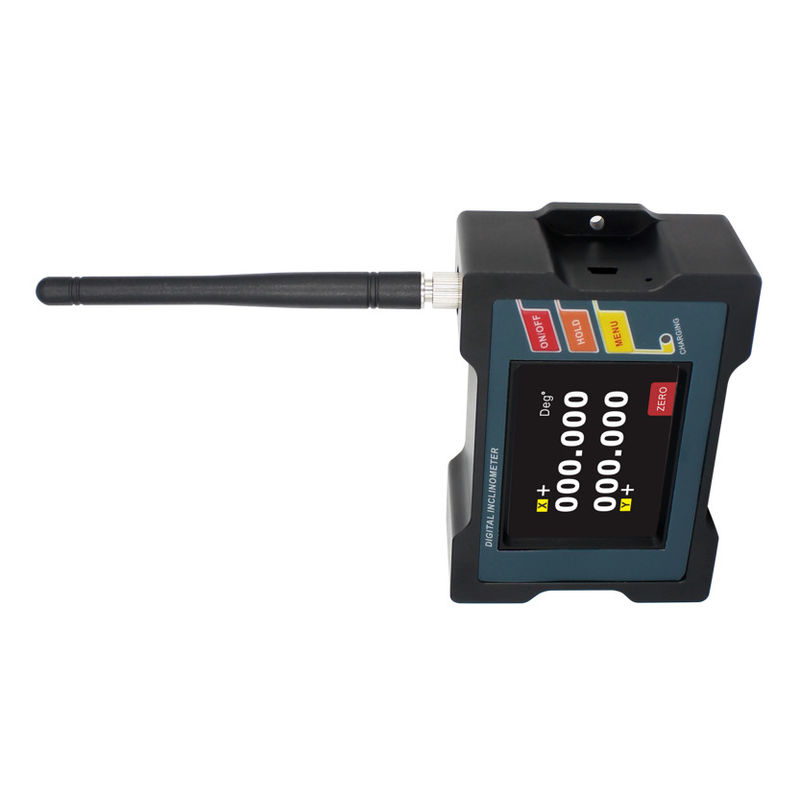

Precise Wirless Angle Meter Lora Communication Tilt Sensor Wireless Inclinometer Sensor With Wirless Monitor
▶ SPECIFICATIONS
| DMA825 | Parameter | Unit |
| Communication method | 470M Loar communication | / |
| Supported resolution | 0.01/0.001 | ° |
| LCD screen | 64 True Colors Night Vision Display Screen | / |
| LCD Viewable area size | L57.6*W43.2 | mm |
| Power | 3.7V Chargeable lithium battery | V |
| Working humidity | 85 | %RH |
| Storage temperature | -20～+35 | ℃ |
| Working temperature | -20～+70 | ℃ |
| charging temperature | 0～+45 | ℃ |
| Charging interface | 5V Standard USB connector | / |
| Ideal charging time | 12 | hour |
| Battery continuous working time | 8 | hour |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | g |
| impact resistance | 10grms,10～100Hz | g |
| Waterproof grade | IP54 | / |
| Material | Aluminum alloy anodizing | / |
| Size | L115×W38×H77 | mm |
| Weight | 300 | g |
▶ FEATURES
★ Remote display of all inclination product data of RION
★ Transmission distance up to: 200m
★ Resolution: 0.01°/0.001°
★ Powered by lithium battery
★ Wide temperature operation -20～+70℃
★ IP54 protection grade
★ Shell size: L115×W38×H77mm
★ For installation with screw holes
▶ APPLICATION
★ Engineering vehicle leveling
★ Bridge and dam monitoring
★ Laser equipment positioning
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rigs
★ Railway gauge and gauge leveling
★ Precision machine tool level control
★ Geological equipment tilt monitoring
