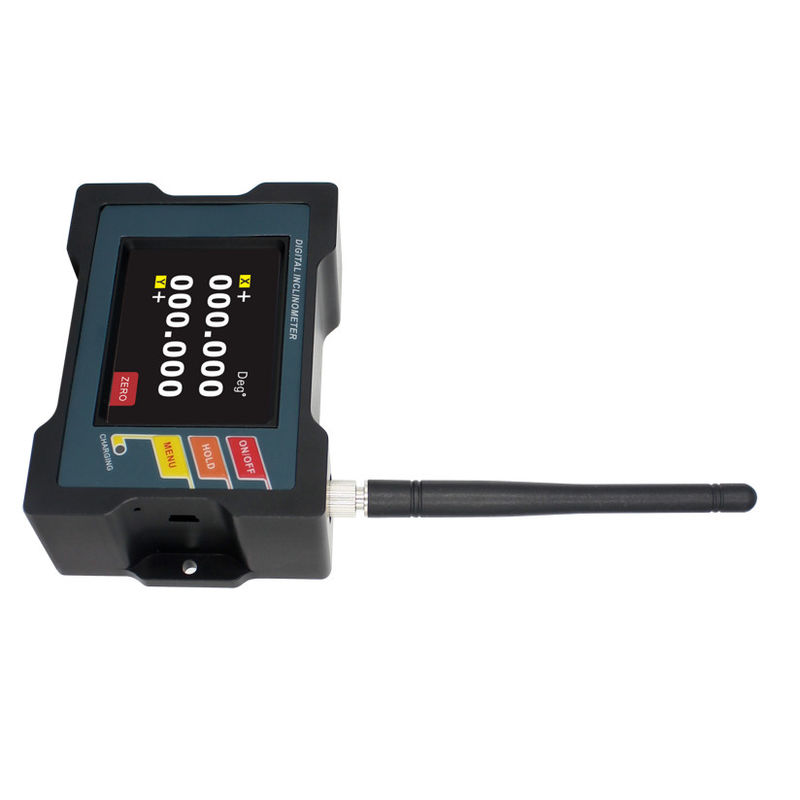

LoRa Wireless Inclinometer , Precise Single Dual Axis Wireless Angle Meter

1 Pieces
MOQ
$280.00/Pieces
Price
LoRa Wireless Inclinometer , Precise Single Dual Axis Wireless Angle Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Communication Method: 470M Loar Communication
Supported Resolution: 0.01/0.001°
LCD Screen: 64 True Colors Night Vision Display Screen
Power: 3.7V Chargeable Lithium Battery
Working Humidity: 85%RH
Size: L115×W38×H77
High Light:

Aluminum Alloy Wireless Inclinometer

,

Single Axis Wireless Inclinometer Sensor

,

3.7V Wireless Angle Meter

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DAM825
Payment & Shipping Terms
Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Product Description

Wireless LoRa Inclinometer Monitor Precise Wireless Inclinometer Sensor Single Dual Axis Wireless Angle Meter





FEATURES

★ Remote display of all inclination product data of RION

★ Transmission distance up to: 200m

★ Resolution: 0.01°/0.001°

★ Powered by lithium battery

★ Wide temperature operation -20~+70℃

★ IP54 protection grade

★ Shell size: L115×W38×H77mm

★ For installation with screw holes





APPLICATION

★ Engineering vehicle leveling

★ Bridge and dam monitoring

★ Laser equipment positioning

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rigs

★ Railway gauge and gauge leveling

★ Precision machine tool level control

★ Geological equipment tilt monitoring



SPECIFICATIONS



DMA825 Parameter Unit
Communication method 470M Loar communication /
Supported resolution 0.01/0.001 °
LCD screen 64 True Colors Night Vision Display Screen /
LCD Viewable area size L57.6*W43.2 mm
Power 3.7V Chargeable lithium battery V
Working humidity 85 %RH
Storage temperature -20~+35
Working temperature -20~+70
charging temperature 0~+45
Charging interface 5V Standard USB connector /
Ideal charging time 12 hour
Battery continuous working time 8 hour
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid) g
impact resistance 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy anodizing /
Size L115×W38×H77 mm
Weight 300 g


LoRa Wireless Inclinometer , Precise Single Dual Axis Wireless Angle Meter 0

▶ DIMENSION
LoRa Wireless Inclinometer , Precise Single Dual Axis Wireless Angle Meter 1
