High Accuracy Wireless Inclinometer LoRa With Monitor Display

1 Pieces
High Accuracy Wireless Inclinometer LoRa With Monitor Display
Features Gallery Product Description Request A Quote
Communication Method: 470M Loar Communication
Supported Resolution: 0.01/0.001°
LCD Screen: 64 True Colors Night Vision Display Screen
Power: 3.7V Chargeable Lithium Battery
Working Humidity: 85%RH
Protection Grade: IP54
High Light:

Night Vision Display Wireless Inclinometer


3.7V Wireless Inclinometer


470M High Accuracy Digital Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DAM825
Payment & Shipping Terms
Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Product Description

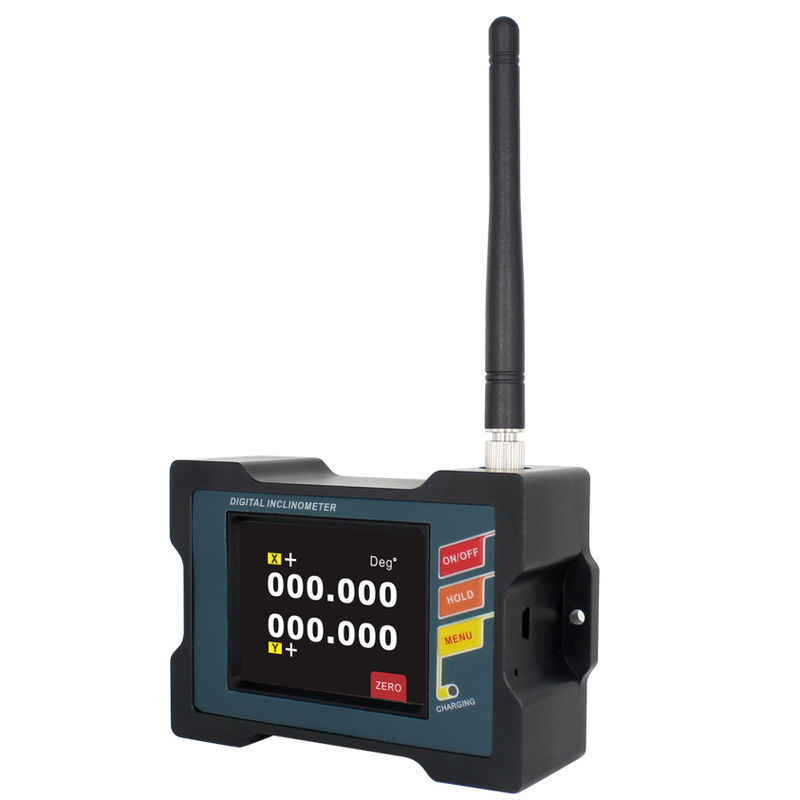

High Accuracy Wireless Inclinometer Display Wireless LoRa Inclination Monitor



RION company independently develops and produces wireless LoRa displays, which can be matched with some of our inclination sensor products, it can display the real-time angle of the sensor from a long distance, adopts the latest LoRa technology, and has a long transmission distance. This product also uses frequency hopping technology, which can pass pseudo random codes. The sequence is subjected to frequency shift keying, which makes the carrier frequency hop continuously and spreads the spectrum. It has the characteristics of strong anti-interference ability, low working power consumption and low cost, and can adapt to most complex environments.

The display adopts an industrial wide temperature digital screen, and the screen is clearly visible,it is equipped with PVC film buttons to enhance the customer's operating experience, and it is equipped with a large rechargeable battery to achieve long battery life, the metal shell design is portable and easy to install, especially suitable for real time monitor jobs in harsh industrial sites. Accept the customization of customer function keys, panel colors, and third-party sensors for access acquisition solutions.




★ Remote display of all inclination product data of RION

★ Transmission distance up to: 200m

★ Resolution: 0.01°/0.001°

★ Powered by lithium battery

★ Wide temperature operation -20~+70℃

IP54 protection grade

★ Shell size: L115×W38×H77mm

★ For installation with screw holes




★ Engineering vehicle leveling

★ Bridge and dam monitoring

★ Laser equipment positioning

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rigs

★ Railway gauge and gauge leveling

★ Precision machine tool level control

★ Geological equipment tilt monitoring




DMA825 Parameter Unit
Communication method 470M Loar communication /
Supported resolution 0.01/0.001 °
LCD screen 64 True Colors Night Vision Display Screen /
LCD Viewable area size L57.6*W43.2 mm
Power 3.7V Chargeable lithium battery V
Working humidity 85 %RH
Storage temperature -20~+35
Working temperature -20~+70
charging temperature 0~+45
Charging interface 5V Standard USB connector /
Ideal charging time 12 hour
Battery continuous working time 8 hour
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid) g
impact resistance 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy anodizing /
Size L115×W38×H77 mm
Weight 300 g

High Accuracy Wireless Inclinometer LoRa With Monitor Display 0
