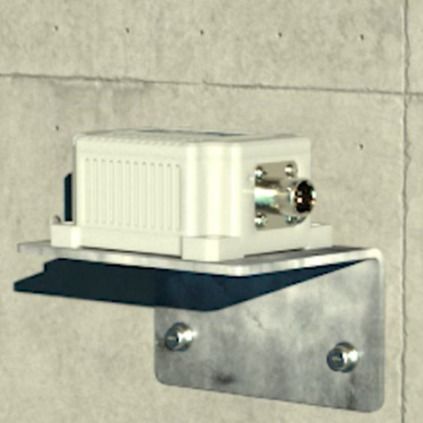

High Precise Inclinometer Tilt Sensor Single Dual Axis For Building Bridge Inclination

1
MOQ
594 USD/pcs
Price
High Precise Inclinometer Tilt Sensor Single Dual Axis For Building Bridge Inclination
Features Gallery Product Description Request A Quote
Features
Specifications
Measure Range: 5~30°
Measure Axis: X/Y/XY
Resolution: 0.001°
Measure Accuracy: 0.003°~0.03°
Long Term Stability: 0.01°~0.04°
Weight: 235g
Function: Measure
High Light:

36V Inclinometer Tilt Sensor

,

Bridge Inclinometer Tilt Sensor

,

Bridge Inclination Angle Meter

Basic Infomation
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: ACA628T-10
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, PayPal
Supply Ability: 1000/month
Product Description

High Precise inclinometer tilt sensor single dual axis angle meter for building bridge inclination measure



APPLICATION

★ Engineering vehicles automatic leveling

★ Bridge & dam detection

★ Laser equipment position

★ Medical facilities angle control

★ Underground drill posture navigation

★ Railway gauging rule , gauge equipment leveling

★ Precise machine tool level control

★ Geological equipment inclined monitoring



FEATURES

★ Single/Dual-Axis Inclinometer

★ Measuring Range :±1~±90° optional

★ Wide voltage input: 11.5~36V

★ Wide temperature working: -40~+85℃

★ IP67 protection grade

★ Highly anti-vibration performance >2000g

★ High Resolution: 0.0007°

★ Temperature drift: 0.0005°/℃





▶ TECHNICAL DATA

ACA618T/628T-N Conditions Parameters Unit
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X / XY X / XY X / XY X / XY axis
Zero output 0° output 12 12 12 12 mA
Resolution   0.0007 0.0007 0.0007 0.0007 °
Measure accuracy MAXE Room temp. 0.003 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp-coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g
Weight ≤260g(without cable )

















































▶ ELECTRICAL CONNECTION



Wire Color function RED WHITE GREEN BLACK GRAY

DC11.5~36V

Power supply positive

Out X

X axis

output current

NC

GND

Power supply negative

Signal GND



High Precise Inclinometer Tilt Sensor Single Dual Axis For Building Bridge Inclination 0

High Precise Inclinometer Tilt Sensor Single Dual Axis For Building Bridge Inclination 1
