Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKM390-20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $235.00/Pieces
Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, PAYPAL
Supply Ability: 3000 PCS/MONTH
Name: |
Vibratory Health Monitor |
Output: |
0~5v |
Power Supply: |
DC 9~36V |
Deviation Calibration: |
<1mg |
Noise Density: |
21μg/√Hz |
Resonant Frequency: |
2.4kHz |
Name: |
Vibratory Health Monitor |
Output: |
0~5v |
Power Supply: |
DC 9~36V |
Deviation Calibration: |
<1mg |
Noise Density: |
21μg/√Hz |
Resonant Frequency: |
2.4kHz |

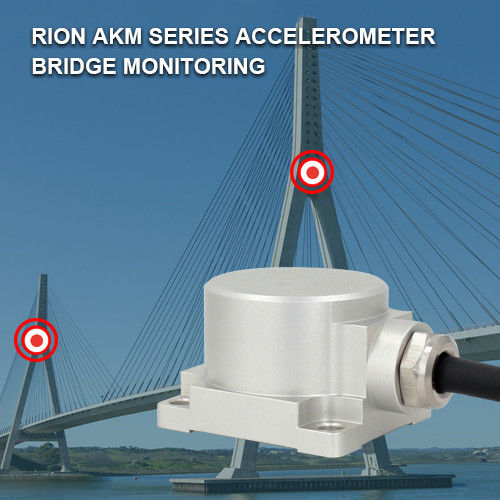

Highly Sensitive Vibratory Health Monitor Sensor Voltage Output For Bridge/Road Roller/Wind Turbine
Specification
AKM390 | Parameter | Unit | |||||
Measure range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
Deviation calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
Measure axis | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | axis |
Power on/off repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
Sensitivity (± 10%) | 1250 | 625 | 312.5 | 250 | 125 | 62.5 | mv/g |
Temp. coefficient of deviation | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
Response frequency | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
Bandwidth (3DB) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
Lateral Vibration Sensitivity Ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
Resonant frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
Noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
0 G Output 2.5V | <0.01 | <0.01 | <0.01 | <0.008 | <0.008 | <0.008 | mV |
Output voltage | 0~5V | ||||||
Reliability | MIL-HDBK-217, Class II | ||||||
Impact resistance | 100g @ 11ms, triaxial (half sine wave) | ||||||
Recovery time | < 1ms (1000g, 1/2 sin 1ms, impact on i-axis) | ||||||
Vibration | 20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis) | ||||||
Input (VDD _ VSS) | 9-36 VDC | ||||||
Operating current consumption | <60mA @ 12 VDC | ||||||
Protection | IP67 | ||||||
Material | aerospace aluminum | ||||||
Weight | Product net weight: ≤116g, magnetic base: ≤50g | ||||||
Size |
Product size: L36 × W32 × H24mm Size of magnetic adsorption base plate: L36 × W32 × H8.1mm |
▶ PRODUCT FEATURES
★ Three axes (X, Y, Z)
★ Output current: 0~5v
★ Power supply voltage: 9~36V
★ Shock resistance: 2000G
★ Operating temperature: -40℃~ +85℃
★ Storage temperature: -40℃ ~ +85℃
★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)
▶ PRODUCT APPLICATION
★ Bridge
★ Automobile
★ Roller
★ Wind power
★ Medical equipment
★ Large machinery and engine
★ Low frequency vibration and automatic monitoring
★ Crash recording, fatigue monitoring and prediction
★ Traffic system monitoring, subgrade analysis and high-speed railway fault detection
▶ ELECTRICAL CONNECTION
THREAD COLOR FUNCTION | RED | BLACK | WHITE | GREEN | GRAY |
DC9~36V Positive pole of power supply |
GND | X-axis voltage signal | Y-axis voltage signal | Z-axis voltage signal |
