0~5v Output Road Roller Vibration Measure Sensor Accelerometer Meter Low Deviation

1
MOQ
$235.00/Pieces
Price
0~5v Output Road Roller Vibration Measure Sensor Accelerometer Meter Low Deviation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Road Roller Vibration Measure
Output: 0~5v
Power Supply: DC 9~36V
Deviation Calibration: <1mg
Noise Density: 21μg/√Hz
Resonant Frequency: 2.4kHz
High Light:

36V Accelerometer Meter

,

5v Output Accelerometer Meter

,

MEMS Based Accelerometer ISO

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKM390-10
Payment & Shipping Terms
Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, PAYPAL
Supply Ability: 3000 PCS/MONTH
Product Description

0~5v output road roller vibration measure sensor low deviation accelerometer meter



PRODUCT INTRODUCTION

AKM390 tri-axial accelerometer is a widely used acceleration sensor products independently developed and produced by RION Technology, which can be applied to vibration testing, impact testing and other fields. The product is analog voltage output and can be set with different address codes. Multiple sensors can be connected in series for a long distance, which is convenient for multi-point measurement and data analysis. The AKM390 is a monocrystalline silicon capacitive sensor. It consists of a silicon chip processed by micromachining, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, solid structure and stable output after calibration. The new electronic configuration provides solid state power for reset and full protection against over-current. The accelerometers have the characteristics of solid structure, low power consumption and excellent deviation stability to ensure the reliability of product output.

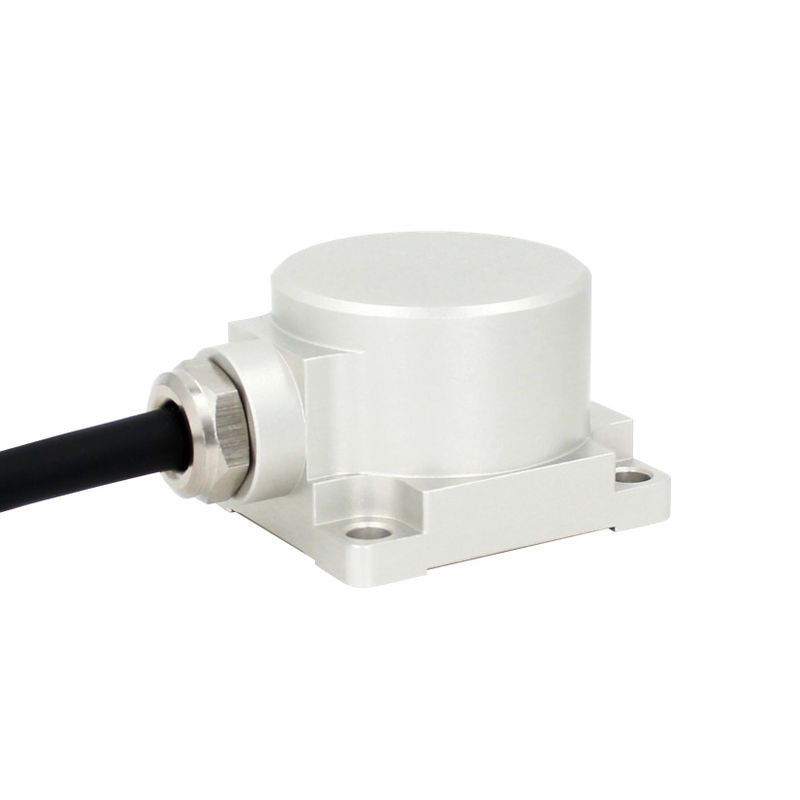

0~5v Output Road Roller Vibration Measure Sensor Accelerometer Meter Low Deviation 0

PRODUCT FEATURES

★ Three axes (X, Y, Z)

★ Output current: 0~5v

★ Power supply voltage: 9~36V

★ Shock resistance: 2000G

★ Operating temperature: -40℃~ +85℃

★ Storage temperature: -40℃ ~ +85℃

★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)





PRODUCT APPLICATION

★ Bridge

★ Automobile

★ Roller

★ Wind power

★ Medical equipment

★ Large machinery and engine

★ Low frequency vibration and automatic monitoring

★ Crash recording, fatigue monitoring and prediction

★ Traffic system monitoring, subgrade analysis and high-speed railway fault detection



Specification

AKM390 Parameter Unit
Measure range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 1250 625 312.5 250 125 62.5 mv/g
Temp. coefficient of deviation 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Response frequency 500 500 500 500 500 500 Hz
Bandwidth (3DB) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral Vibration Sensitivity Ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0 G Output 2.5V <0.01 <0.01 <0.01 <0.008 <0.008 <0.008 mV
Output voltage 0~5V
Reliability MIL-HDBK-217, Class II
Impact resistance 100g @ 11ms, triaxial (half sine wave)
Recovery time < 1ms (1000g, 1/2 sin 1ms, impact on i-axis)
Vibration 20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis)
Input (VDD _ VSS) 9-36 VDC
Operating current consumption <60mA @ 12 VDC
Protection IP67
Material aerospace aluminum
Weight Product net weight: ≤116g, magnetic base: ≤50g
Size

Product size: L36 × W32 × H24mm

Size of magnetic adsorption base plate: L36 × W32 × H8.1mm



0~5v Output Road Roller Vibration Measure Sensor Accelerometer Meter Low Deviation 1
