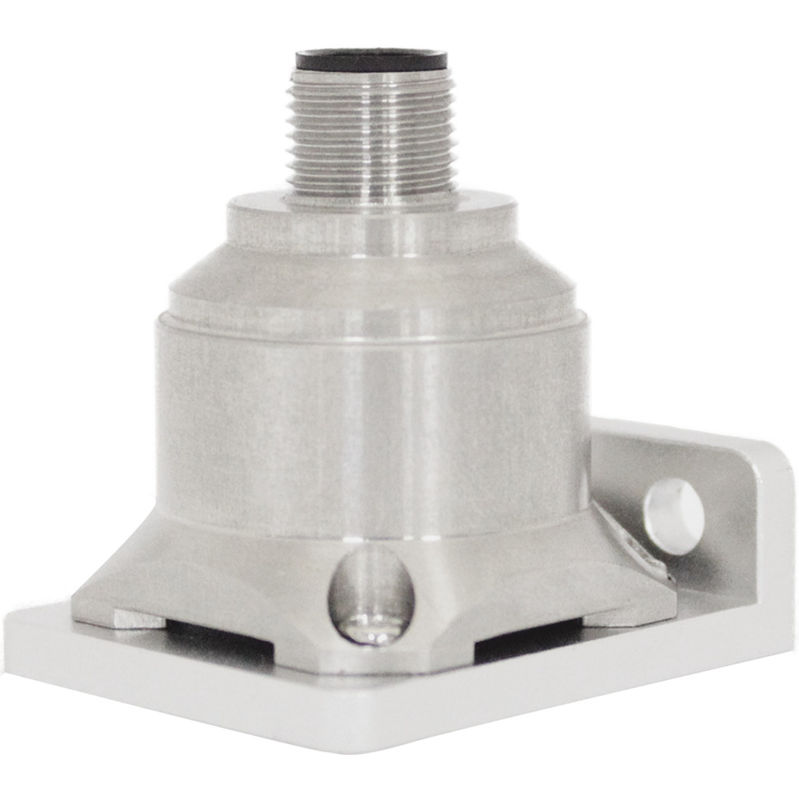

Analog 4-20mA Output Three Axis Acceleration Meter For Bridge / Railway

1
MOQ
$235.00/Pieces
Price
Analog 4-20mA Output Three Axis Acceleration Meter For Bridge / Railway
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Analog Accelerometer
Output: 4~20mA
Measure Range: 2~40g
Non-linearity: <0.5% FS(max)
Bandwidth (3DB): 500Hz
Power Supply: 9~36v
High Light:

DC9V Analog Accelerometer

,

36v Analog Accelerometer

,

MEMS Based Accelerometer 500Hz

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: AKF398-8
Payment & Shipping Terms
Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, PAYPAL
Supply Ability: 3000 PCS/MONTH
Product Description

Analog Accelerometer 4~20mA Output Three Axis Acceleration Meter For Bridge/Railway Vibration Detection



Specifications

AKF398 PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 4 2 1 0.8 0.4 0.2 mA/g
Deviation temp. coefficient 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Frequency response 500 500 500 500 500 500 Hz
Bandwidth (3Db) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0g output 12mA <0.005 <0.005 <0.005 <0.003 <0.003 <0.003 mA
Output current 4~20mA
Reliability MIL-HDBK-217,grade two
Shock Resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Recovery Time <1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)
Vibration 20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
Input(VDD_VSS) 9~36 VDC
Running current consumption <60mA @ 12 VDC
Connector Industrial Standard M12 Connector
Protection grade IP67
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Dimension

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm





▶ PRODUCT FEATURES

★ three axis (X,Y,Z)

★ output voltage: 4-20mA

★ power supply:9-36V

★ anti-impact:2000G

★ working temperature: -40°C ~ +85°C

★ store temperature: -40°C ~ +85°C

★ size: L34.3×W34.3×H38.5mm

★ weight: 73.5g ★ excellent bias stability

★ Good environmental performance (impact, vibration and temperature)



▶ APPLICATION

★ Crash record, fatigue monitoring and prediction

★ Wind power generation

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

★ Large machinery, engine

★ Low frequency vibration and automatic monitoring

★ Medical equipment

★ Bridge

★ Vehicle

★ Road roller



CONNECTION



Color Function BLACK WHITE BLUE BROWN OLIVINE
Power GND X-axis current signal Y-axis current signal

Vcc 9~36V

Power supply positive pole

Z-axis current signal
