3 Axis Vibration Sensor For Bridge Health Monitor

Name: 3 Axis Vibration Sensor For Bridge Health Monitor
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: AKF398-10
Price: 235.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF398-10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T,PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Bridge Health Monitor Vibration Sensor, 3 Axis Vibration Sensor


Name:	Vibratory Sensor	Output:	4~20mA
Power On/off Repeatability:	<2mg	Non-linearity:	<0.5% FS(max)
Bandwidth (3DB):	500Hz	Noise Density:	21 μg/√Hz

Name:	Vibratory Sensor
Output:	4~20mA
Power On/off Repeatability:	<2mg
Non-linearity:	<0.5% FS(max)
Bandwidth (3DB):	500Hz
Noise Density:	21 μg/√Hz

Description

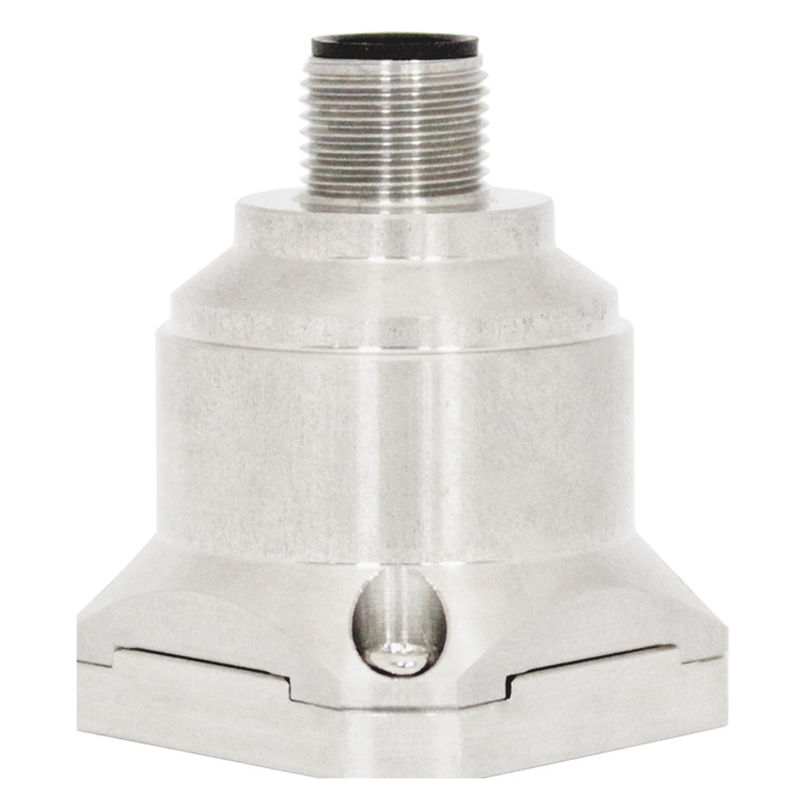

3 Axis Vibration Sensor For Bridge Health Monitor

3 Axis Vibratory Accelerometer For Bridge Health Monitor

▶ PRODUCT FEATURES

★ three axis (X,Y,Z)

★ output voltage: 4-20mA

★ power supply:9-36V

★ anti-impact:2000G

★ working temperature: -40°C ~ +85°C

★ store temperature: -40°C ~ +85°C

★ size: L34.3×W34.3×H38.5mm

★ weight: 73.5g

★ excellent bias stability

★ Good environmental performance (impact, vibration and temperature)

▶ APPLICATION

★ Crash record, fatigue monitoring and prediction

★ Wind power generation

★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

★ Large machinery, engine

★ Low frequency vibration and automatic monitoring

★ Medical equipment

★ Bridge

★ Vehicle

★ Road roller

The AKF398 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Specifications

AKF398	PARAMETER						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Deviation Calibration	<1	<1	<1	<1	<1	<1	mg
Measuring Axial	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Up/Off Power Repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	4	2	1	0.8	0.4	0.2	mA/g
Deviation temp. coefficient	0.01	0.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<0.5	<0.5	<0.8	<1	<1	<1	% FS(max)
Frequency response	500	500	500	500	500	500	Hz
Bandwidth (3Db)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral vibration sensitivity ratio	1	1	2	5	5	5	%
Resonant frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0g output 12mA	<0.005	<0.005	<0.005	<0.003	<0.003	<0.003	mA
Output current	4~20mA
Reliability	MIL-HDBK-217,grade two
Shock Resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Recovery Time	<1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)
Vibration	20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
Input(VDD_VSS)	9~36 VDC
Running current consumption	<60mA @ 12 VDC
Connector	Industrial Standard M12 Connector
Protection grade	IP67
Weight	Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Dimension	Product size: 34.334.338.5mm Magnetic adsorption base size: 34.2334.236mm L-shaped adapter plate size: 364415mm

▶ CONNECTION

Color Function

BLACK

WHITE

BLUE

BROWN

OLIVINE

Power GND

X-axis current signal

Y-axis current signal

Vcc 9～36V

Power supply positive pole

Z-axis current signal
