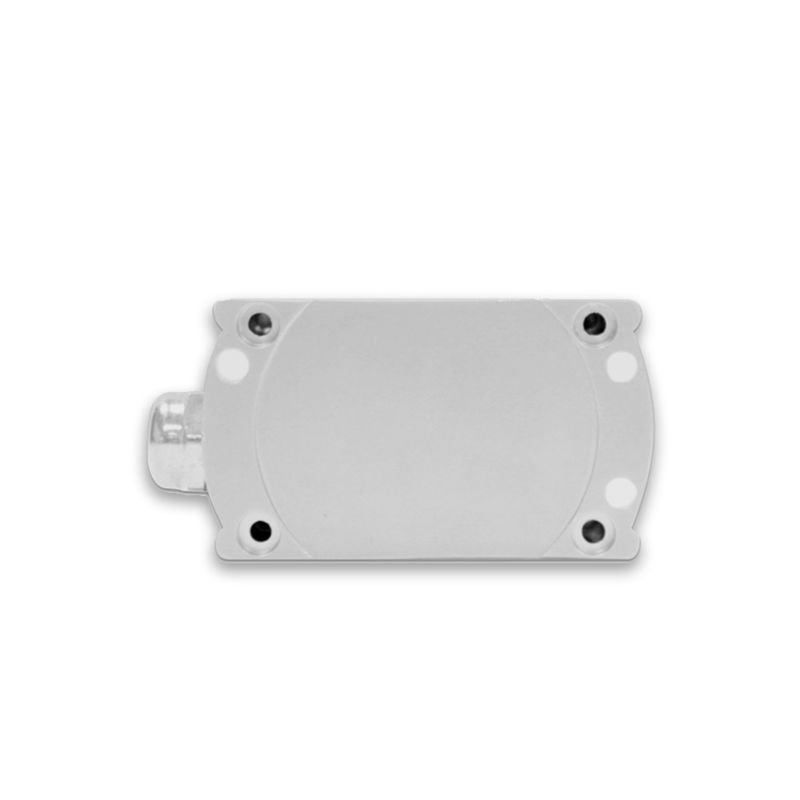

Provide Precise Angle Value 4-20mA Incline Sensor For Solar Angle Tracking

Product Details

Place of Origin: CHINA

Brand Name: RION

Certification: CE, ISO

Model Number: MCA418T-30

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 30/pcs

Packaging Details: carton box, 10 x 5 x 3cm

Delivery Time: 5~7

Payment Terms: T/T, Paypal

Supply Ability: 2000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

4mA Incline Sensor

,

GBT17626 Incline Sensor

,

ISO Solar Angle Meter

Measuring Axis:
X/Y, XY
Power Supply:
DC 9~36V
Measuring Range:
30
Best Accuracy:
<0.1°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Measuring Axis:
X/Y, XY
Power Supply:
DC 9~36V
Measuring Range:
30
Best Accuracy:
<0.1°
Angle Resolution:
0.1°
Working Temperature:
-40°~ +85℃
Description
Provide Precise Angle Value 4-20mA Incline Sensor For Solar Angle Tracking

Analog current 4~20mA incline sensor for solar angle tracking angle meter provide precise angle value



MCA418T/428T series tilt sensor is a new low cost tilt angle measurement product developed independently by RION. It adopts the latest anti_interference platform design and integrates a new micro_mechanical sensing unit. It has wide working temperature, excel lent anti _vibration and long_ term stable and rel iable performance.This product adopts the non_contact principle to measure the tilt angle. The internal capacitive micromechanical unit measures the component generated by the gravity of the earth to solve the realtime tilt angle. The installation is simple and convenient. It only needs to be fixed on the object being measured and there is no need to find fixed shaft and rotating shaft. Variety of installation methods could meet customer different measurement needs. It is an ideal sensor for construction machinery vehicles, agricultural machinery, solar tracking and other industrial equipments



Feature

●Resolution:0.1°

●Wide voltage input:9~36V

●Six installation methods

●Zero point can be set on site

●IP67 protection grade

●High vibration resistance:>3500g





▶ PARAMETERS

MCA418 CONDITION INDEX UNIT
Measure range / ±180 °
Measure axis / X/Y/XY axis
Resolution / 0.1 °
Absolute accuracy @25℃ 0.3 °
Zero temp. coefficient -40~85° ±0.4 °/℃
Output Interface 4~20mA
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation resistance ≥100 megohm
Anti-impact 100g@11ms,three axes direction(half sinusoid)
Anti-vibration 10grms,10~1000Hz
Waterproof grade IP67
Housing material Sand-grinding oxidation of aluminum alloy
Screw Three M4 screws
Cable Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2
Weight 60g (exclude cable)











































INSTRUCTIONS FOR USE

1. This tilt sensor measures the tilt angle of the object through the principle of sensing the gravity of the earth. When installing, try to ensure that the direction of the sensor axis of the sensor is parallel to the direction of the tilt axis of the measured object to achieve the best measurement accuracy. It must be tight, flat, and stable. If the mounting surface is uneven, it will easily cause errors in the measurement angle of the sensor.

2. The inclination sensor can be installed and measured arbitrarily on six sides. After the installation is complete, use the zero setting function of the sensor to set the current position to zero. In the internal memory of the product, after zeroing, the product will work with the current position at zero degrees.) The setting method is as follows: short-circuit the sensor setting wire (gray) and the ground wire (black) for more than 3 seconds, and the sensor power indicator will turn off until the indicator light flashes again, then release the setting line, the zero setting is completed, and the indicator light returns to the constant light working mode.

3. The protection level of this sensor is IP67. Rain or strong water spray will not affect the operation of internal devices. Please do not immerse it in water for a long time to avoid damage to the internal circuit of the product. The manufacturer will provide paid maintenance service.

4. After the product installation is completed, please pay attention not to short-circuit the signal line and the positive pole of the power line to avoid burning the output circuit. Since the negative signal of this product and the negative pole of the power supply are shared, please connect the negative signal of the collection end and the negative pole of power supply of the product.
