Single Dual Axis Incline Angle Transducer For Bridge Building Dam

1
MOQ
594 USD/pcs
Price
Single Dual Axis Incline Angle Transducer For Bridge Building Dam
Features Gallery Product Description Request A Quote
Features
Specifications
Measure Range: 5~30°
Measure Axis: X/Y/XY
Resolution: 0.001°
Measure Accuracy: 0.003°~0.03°
Long Term Stability: 0.01°~0.04°
Weight: 235g
High Light:

RS422 Incline Angle Transducer

,

IP67 Analog Incline Meter

,

Tilt Sensor Inclinometer for Dam

Basic Infomation
Place of Origin: China
Brand Name: RION
Certification: CE, ISO
Model Number: ACA616T-5
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: T/T, PayPal
Supply Ability: 1000/month
Product Description

Analog Incline Meter Single Dual Axis Incline Angle Transducer For Bridge Building Dam Incline Monitor



▶ APPLICATION

★ Bridge & dam detection

★ Wind turbines angle measure

★ Engineering vehicles automatic leveling

★ Laser equipment position

★ Medical facilities angle control



ACA616T/ACA626T is a full temperature compensation high precision single / dual axis MODBUS digital output type tilt sensor developed by RION Technology on the basis of high precision tilt platform. Its excellent temperature stability can be used in a wide temperature environment of -40~85 ℃ It maintains high measurement accuracy and is more suitable for long-term field equipment monitoring and leveling. In addition, the system has a built-in high-precision 24it A/D differential converter, and through the fifth-order filtering algorithm, it can measure the tilt and pitch angle of the sensor output relative to the horizontal. Output interface RS485, RS232, TTL optional. The characteristics of non-contact installation make the product have strong system integration, only need to fix the sensor on the surface of the measured object with screws, the attitude and inclination of the object can be automatically calculated, simple to use, no need to retrieve the relative changes Installed on both sides. It has strong resistance to external electromagnetic interference and strong ability to withstand shock and vibration. It has a great competitive advantage among domestic counterparts, and is specifically used in the industrial fields required by high-end users.





▶ TECHNICAL DATA



ACA616T/ACA626T CONDITIONS PARAMETERS UNIT
Measure range   ±10 ±30 ±60 ±90 °
Measure axis   X/XY X/XY X/XY X/XY AXIS
Resolution   0.001 0.001 0.001 0.001 °
Measure accuracy   0.003 0.01 0.02 0.03 °
Long term stability   0.01 0.02 0.03 0.04 °
Zero Temp. coefficient -40~+85℃ ±0.0004 ±0.0004 ±0.0004 ±0.0004 °/℃
Sensitivity temp-coeffi -40~+85℃ ≤50 ≤50 ≤50 ≤100 ppm/℃
Power on time   0.5 0.5 0.5 0.5 S
Response frequency   20 20 20 20 Hz
Output rate 5Hz,15Hz,35Hz,50Hz can be setting
output signal RS232/RS485/RS422/TTL
Communication protocol Refine 68 protocol / MODBUS protocol
EMC According to EN61000 and GBT17626
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector
Weight ≤220g(without cable)

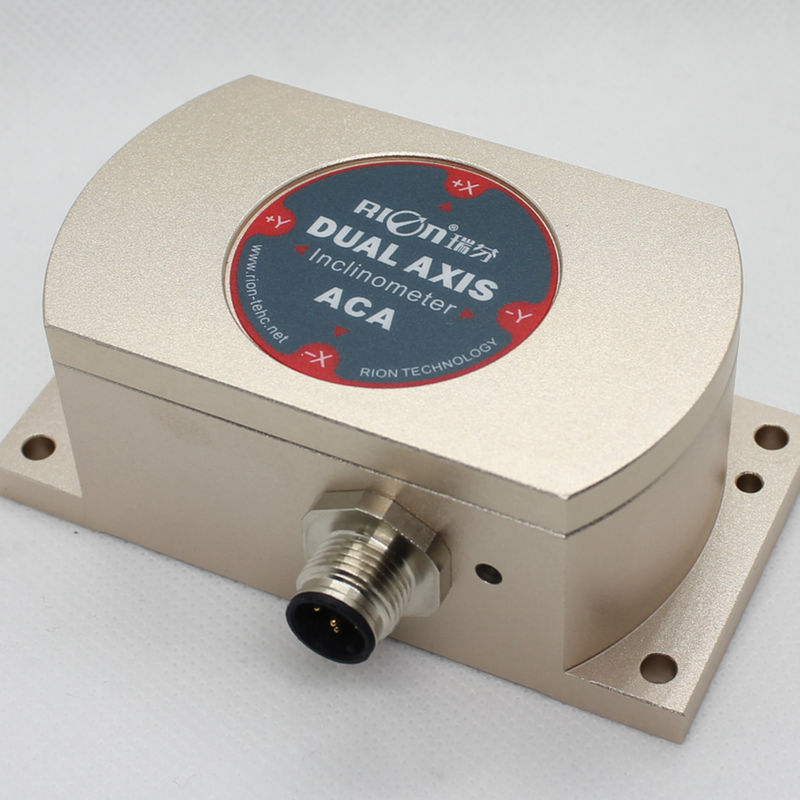

Single Dual Axis Incline Angle Transducer For Bridge Building Dam 0





Single Dual Axis Incline Angle Transducer For Bridge Building Dam 1



Single Dual Axis Incline Angle Transducer For Bridge Building Dam 2







Single Dual Axis Incline Angle Transducer For Bridge Building Dam 3
