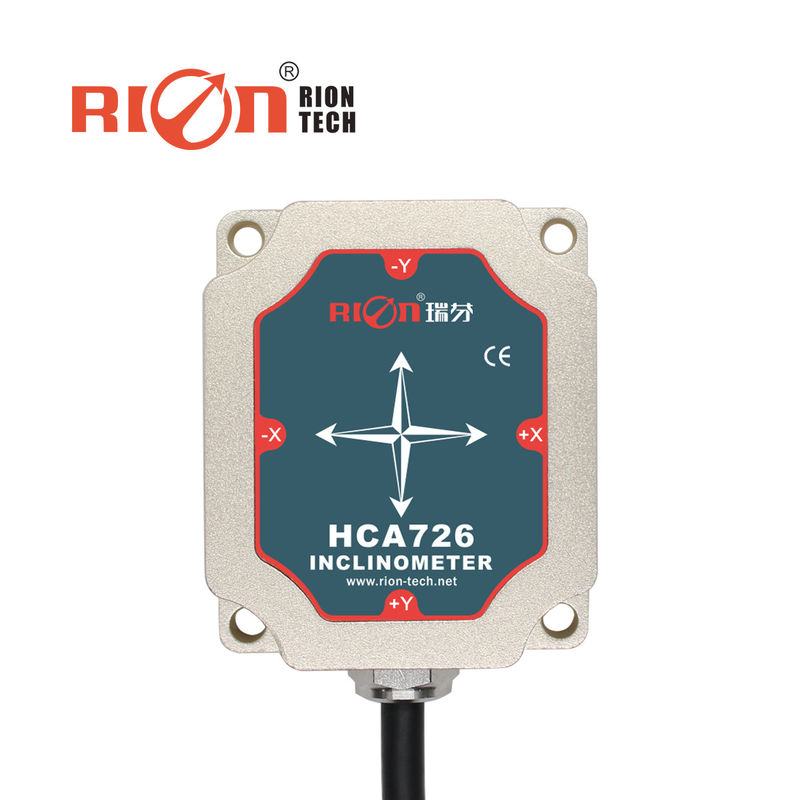

HCA716 HCA726 digital output inclinometer pitch ro...
electricity tower tilt angle sensor single dual axis electronic tilt sensor modbus rtu protocol
▶ APPLICATION
★ Monitoring of ancient buildings and dilapidated buildings
★ Monitoring of bridges and large lands
★ Leveling of construction vehicles
★ Mining machinery, oil drilling equipment
★ Medical equipment angle control
★ Railway gauge ruler and gauge leveling
★ Underground drilling rig attitude navigation
★ Geological equipment tilt monitoring
★ Elevation angle measurement of directional satellite communication antenna
Technical Data
| HCA716/HCA726 | CONDITION | PARAMETERS | UNIT | |||
| Measure range | ±15 | ±45 | ±60 | ±180 | ° | |
| Measure axis | X,Y | X,Y | X,Y | Vertical X | axis | |
| Resolution | 0.001 | 0.001 | 0.003 | 0.005 | ° | |
| Measure accuracy | @25℃ | ±0.008 | ±0.01 | ±0.01 | ±0.01 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 20HZ | |||||
| Interface | TTL / RS232 / RS485 optional | |||||
| Communication protocol | RION 68 protocol / MODBUS RTU protocol optional | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2 | |||||
| Weight |
≤150g (including 1 meter cable) |
|||||
Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.
MAXE: refers to the biggest error of the product within the range and at multiple angle points.
RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.
DIMENSION
