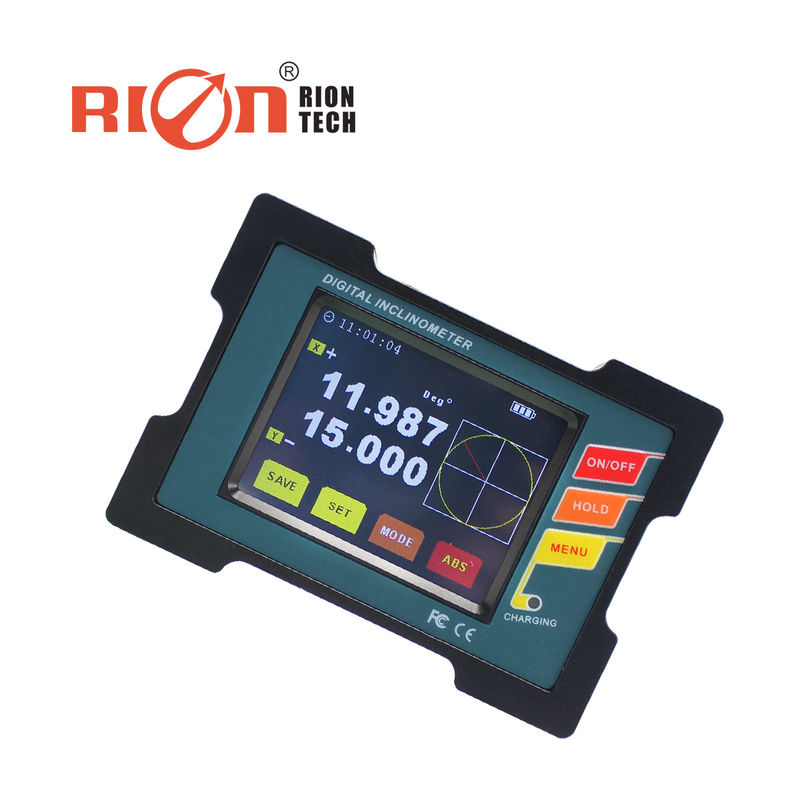

2 Axis Inclinometer Digital Angle Indicator For Platform Level Measure

Name: 2 Axis Inclinometer Digital Angle Indicator For Platform Level Measure
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DMI820-15
Price: 438.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE

Model Number: DMI820-15

Payment & Shipping Terms

Minimum Order Quantity: 1 Pieces

Price: $438.00/Pieces

Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Delivery Time: 5 days for sample

Payment Terms: T/T, Paypal

Supply Ability: 3000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      577mm 2 Axis Inclinometer, MEMS Sensors 2 Axis Inclinometer, 2 Axis High Accuracy Digital Inclinometer


Digital Inclinometer Measuring Range:	+/-15deg , +/-30deg Optional	Accuracy:	<0.005deg @+/-15deg (full Range) , <0.01deg@+/-30deg (full Range)
MM Measuring Accuracy:	0.1mm@267mm(range), 0.2mm@577mm(range)	MM Measuring Range:	267~577mm
Product Size:	L105W73H27.1mm	Resolution:	0.001°

Digital Inclinometer Measuring Range:	+/-15deg , +/-30deg Optional
Accuracy:	<0.005deg @+/-15deg (full Range) , <0.01deg@+/-30deg (full Range)
MM Measuring Accuracy:	0.1mm@267mm(range), 0.2mm@577mm(range)
MM Measuring Range:	267~577mm
Product Size:	L105W73H27.1mm
Resolution:	0.001°

Description

2 Axis Inclinometer Digital Angle Indicator For Platform Level Measure

2 Axis Inclinometer Digital Angle Indicator For Platform Level Measure

▶ APPLICATION

★ Building construction

★ Automobile four-wheel testing

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Pan unit angle detection

★ Production jig

▶ FEATURES

★ Best accuracy:<0.005°

★ Repeatability:0.003°

★ Angle resolution:0.001°

★ Maximum measure range:±30°

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries

★ Night vision fours colors screen

★ IP54 protection class

★ °/mm/m Dual units switch function

★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian, angle, mm)

▶ TECHNICAL DATA

PARAMETER	DMI810		DMI820		UNIT
Meausre Axis	Single Axis		Daul Axis		Axis
Angle Measure Range	±15 °	±30 °	±15 °	±30 °	°
Angle Measurement Accuracy(Full Range)	<0.005	<0.01	<0.005	<0.01	°
Angle Measure Resolution	0.001	0.001	0.001	0.001	°
Mm/m Measure Range	267	577	267	577	mm/m
Mm/m Measure Accuracy	0.1	0.2	0.1	0.2	mm/m
Mm/m Measure Resolution	0.02	0.02	0.02	0.02	mm/m
Repeatability	0.003	0.003	0.003	0.003	°
Measurement Mode	Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature	-10°~ +70℃
Working Humidity	85%RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Continuous Working Time	11h
Equipped With Pc Software	Vc Software
Data Output Signal	Standard USB connector, rechargeable
Connect Plug In	Standard Usb Connector, Rechargeable
Shock Resistance	10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact	10grms,10~100Hz
Waterproof Grade	IP54
Material	Aluminum Alloy Anodizing
Lcd	64 True Colors Night Vision Display Screen
Lcd Visible Area Size	L57.6*W43.2mm
Size	L107W75H27.1mm
Weight	≤350g

▶ MEASURE DIRECTION
