Electronic Digital Protractor Inclinometer , 1.5V Precision Digital Inclinometer

1
MOQ
$547.00/Pieces 1-499 Pieces
Price
Electronic Digital Protractor Inclinometer , 1.5V Precision Digital Inclinometer
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Angle Measure And Display
Angle Measure Range: ±90°/±30°
Best Accuracy: <0.02°(RMS)(Full Range)/<0.005°(RMS)(Full Range)
Repeatability: 0.004°
Power Supply: 1.5V
Weight: 600g
High Light:

Electronic Digital Protractor Inclinometer

,

1.5V Precision Digital Inclinometer

,

High Accuracy Digital Inclinometer 1.5V Power

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, RHOS
Model Number: DMI610
Payment & Shipping Terms
Packaging Details: 1pcs digital inclinometer in each plastic box with safe sponge inside
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 3000/month
Product Description

Digital Protractor Inclinometer Precision Digital Inclinometer Electronic Inclinometer Sensor Electronic Level Sensor



APPLICATION

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

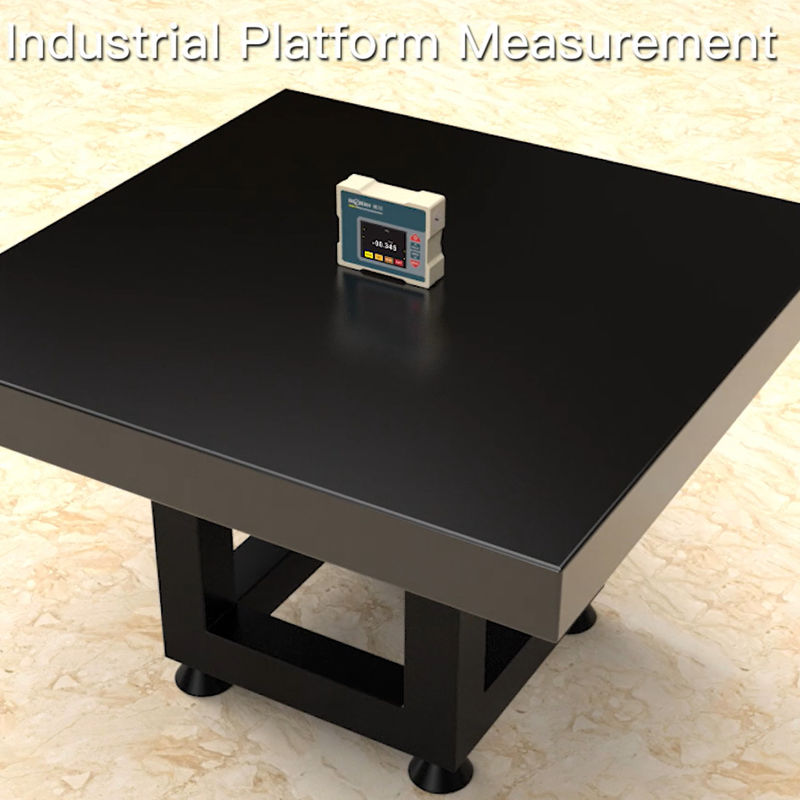

★ Industrial platform

★ Turntable testing

★ Pan unit angle detection

★ Production jig



FEATURES

★ Best accuracy:<0.02°

★ Repeatability:0.04°

★ Maximum measure range:±90°

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Three surface datum strong magnetic installation

★ Working Temperature : -10°~ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Night vision fours colors screen

★ Three kinds of measurement mode selectable (radian, angle, mm/m)

★ Angle resolution:0.001°




TECHNICAL DATA

DMI610 PARAMETERS
Angle measure range ±90° ±30°
Measure axis Single axis Dual axis
Best accuracy <0.02°(RMS)(Full range) <0.005°(RMS)(Full range)
Angle measure resolution 0.001° 0.001°
Repeatability 0.004° 0.004°
Measurement mode radian, angle, mm/m three modes can be set
LCD 64 true colors night vision display screen
LCD visible area size L60.5*W45mm
Working temperature -10℃~+70℃
Working humidity 85%RH
Power supply 1.5V
Ideal working time 6Hours
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid)
Shock impact 10grms,10~100Hz
Weight 600g
Waterproof grade IP65
Material Anodic oxidation of aluminum alloy
Size L115*W95*H32mm
Precautions In order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification)



Function menu operation instructions

Electronic Digital Protractor Inclinometer , 1.5V Precision Digital Inclinometer 0



DMI610 DIGITAL DISPLAY INCLINOMETER.pdf
