Product Details
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE, ISO
Model Number: PCA826-232
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $703.00/Pieces 1-9 Pieces
Packaging Details: 1pcs/box ,100pcs/ctn
Delivery Time: 7 days for samples
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Name: |
Bridge Tilt Incline Detect Sensor |
Ingress Grade: |
IP67 |
Output Rate: |
5Hz、10Hz、25Hz、35Hz、50Hz、100Hz. Can Be Set |
Response Frequency: |
20Hz |
Zero Temp Coefficient: |
0.0002deg/℃ |
Resolution: |
0.0005deg |
Name: |
Bridge Tilt Incline Detect Sensor |
Ingress Grade: |
IP67 |
Output Rate: |
5Hz、10Hz、25Hz、35Hz、50Hz、100Hz. Can Be Set |
Response Frequency: |
20Hz |
Zero Temp Coefficient: |
0.0002deg/℃ |
Resolution: |
0.0005deg |

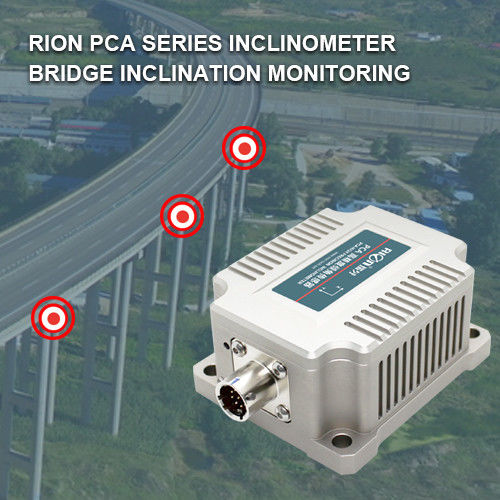

Bridge Tilt Incline Detect Sensor , Bridge Tilt Incline Safety Monitor Sensor , Multi-Functional Angle Sensor
▶ MAIN FEATURES
★ Biaxial tilt angle measurement
★ Range ±1～±60° optional
★ Horizontal/vertical optional
★ DC 9～36V wide voltage input
★ Wide temperature operation -40～+85℃
★ Resolution 0.0005°
★ IP67 protection grade
★ Size: L82×W70×H42mm
★ Output mode CAN2.0A
▶ APPLICATION
★ Wind power monitoring
★ Bridge and Dam monitoring
★ Ancient building monitoring
★ High-speed rail track monitoring
★ Ground satellite communication vehicles
★ Railway gauge ruler and gauge leveling
★ Satellite communication vehicle
★ Geological equipment tilt monitoring
★ Engineering vehicle leveling
▶ INSTALLATION PRECAUTION
Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":
1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.
2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.
| PCA826T | CONDITION | PARAMETERS | UNIT | |||
| Measure range | ±5 | ±10 | ±30 | ±60 | ° | |
| Measure axis | XY | XY | XY | XY | ||
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | |
| Measure accuracy | @25℃ | 0.001 | 0.002 | 0.003 | 0.005 | ° |
| Long-term stability | 0.02 | 0.02 | 0.03 | 0.04 | ° | |
| Zero temp coefficient | -40～85℃ | 0.0002 | 0.0002 | 0.0002 | 0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | <0.4 | <0.4 | <0.4 | <0.4 | S | |
| Response frequency | 0.04 | 0.04 | 0.04 | 0.04 | S | |
| Output rate | 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set | |||||
| Ouput signal | RS485/RS422 optional | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hour/time | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector | |||||
| Weight | 385g (exclude cable) | |||||
CAN wiring definition (7-core wiring definition)
| Line color function | PIN1 | PIN2 | PIN3 | PIN4 | PIN5 | PIN6 | PIN7 |
| DC9~36V | GND | CAN_L | CAN_H | Signal ground | Factory use | Factory use |
