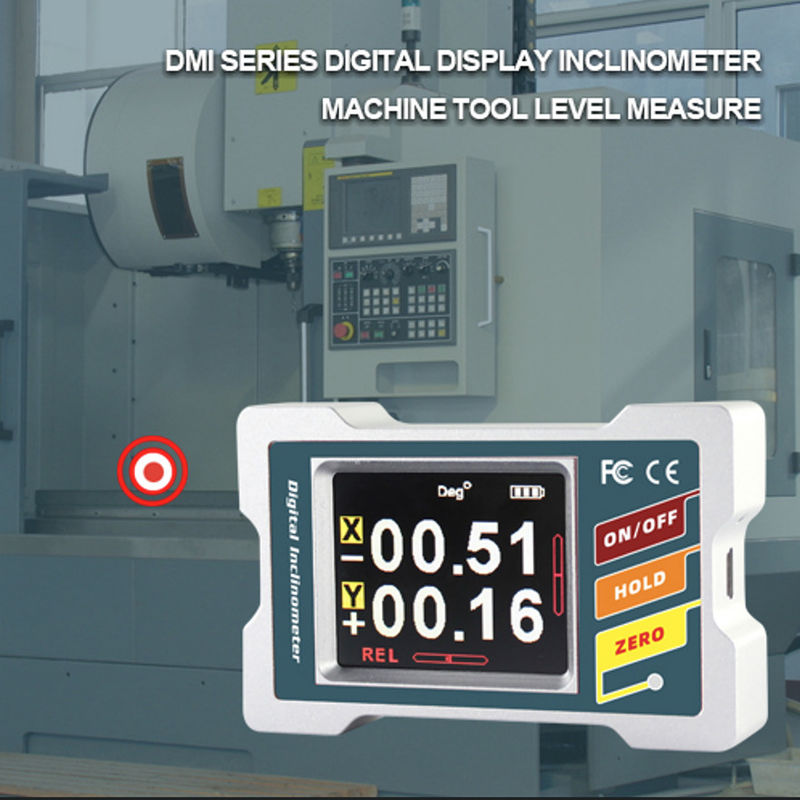

Angle Measure Biaxial Digital Clinometer 3.7V For Platform Level

1 Pieces
Angle Measure Biaxial Digital Clinometer 3.7V For Platform Level
Features Gallery Product Description Request A Quote
Warranty: 1 Year
Digital Inclinometer Measuring Range: +/-90deg
Accuracy: <0.05deg
Product Size: L83*W53*H19.2mm
Resolution: 0.01°
Power Supply: 3.7V Charging Lithium Battery
High Light:

3.7V Biaxial Digital Clinometer


3.7V Spirit Level Sensor


Biaxial High Accuracy Digital Inclinometer

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RION
Certification: CE
Model Number: DMI420
Payment & Shipping Terms
Packaging Details: 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong &amp; safe carton
Delivery Time: 5 days for sample
Payment Terms: T/T, Paypal
Supply Ability: 3000/month
Product Description

Digital Angle Level Measure Sensor Display , Biaxial Digital Clinometer For Platform Level , Digital Spirit Level Sensor



★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate by himself

★ Built-in recharge industry battaries

★ Night vision fours colors screen

★ IP54 protection class

★ Angle/length dual unit switch

★ 100g High anti-impact



★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Cloud deck angle detection

★ Production jig


Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃~ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10~100Hz
Weight ≤140g
Waterproof level IP54
Material Metal aluminum
Size L83*W53*H19.2mm

General Description

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !
Angle Measure Biaxial Digital Clinometer 3.7V For Platform Level 0

ON/OFF: Press for 2seconds to power on or off ;

HOLD: This key to lock the current data, convenient customer records;

ZERO: This button can switch in the absolute and relative measurement mode;(screen display ABS means absolute status, display REL means relative measurement)

HOLD & ZERO: Press HOLD button until the screen appear a small lock sign then press ZERO, can switch in “Angle” and “mm/m” two units of measurement;

ON/OFF&HOLD: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the accuracy according to the screen;

ON/OFF&ZERO: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the ZERO according to the screen;

RESET HOLE: If the instrument occur a crash in working, key can't operation, can use the needlepoint hard object to insert into the hole for touch the button;

USB JACK: For charging purposes or Angle of external connection, data transmission;

WARNING LIGHT: Charging lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)
