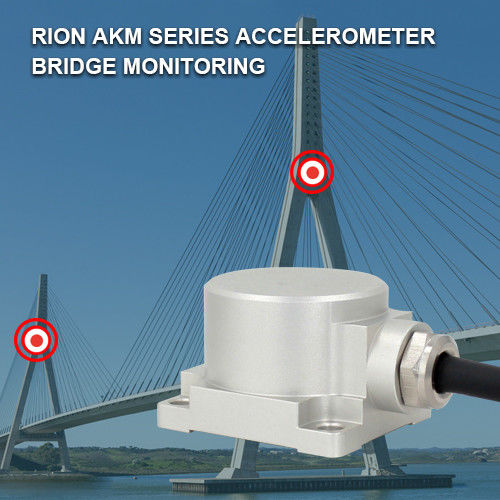

Bridge 3 Direction Vibration Test Sensor , DC 9-36V MEMS Based Accelerometer

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKM390

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

MEMS Vibration Test Sensor

,

DC9V Vibration Test Sensor

,

36V MEMS Based Accelerometer

Name:
Vibratory Sensor
Output:
0~5v
Deviation Calibration:
<1mg
Sensitivity (± 10%):
1250mv/g
Nonlinearity:
<0.5% FS(max)
Bandwidth (3DB):
1000Hz
Name:
Vibratory Sensor
Output:
0~5v
Deviation Calibration:
<1mg
Sensitivity (± 10%):
1250mv/g
Nonlinearity:
<0.5% FS(max)
Bandwidth (3DB):
1000Hz
Description

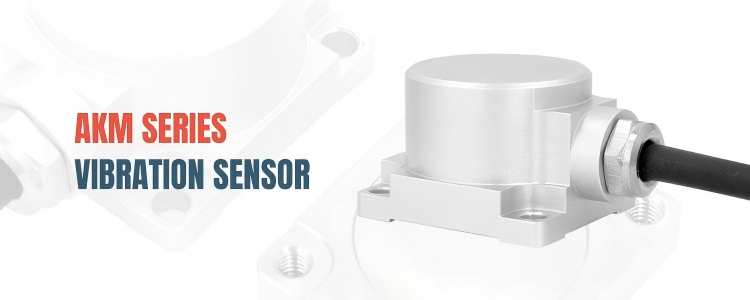

Bridge 3 Direction Vibration Test Sensor , DC 9-36V MEMS Based Accelerometer

acceleration detect sensor for bridge, 3 direction vibration test sensor



PRODUCT FEATURES

★ Three-axis (X, Y, Z)

★ Output voltage: 0 ~ 5V

★ Power supply voltage: 9~36V

★ Shock resistance: 2000G

★ Operating temperature: -40 ° C ~ + 85 ° C

★ Storage temperature: -40 ° C ~ + 85 ° C

★ Excellent deviation stability, good environmental performance (shock, vibration and temperature)



PRODUCT APPLICATION

★ Bridge

★ Automobile

★ Roller

★ Wind power

★ Medical equipment

★ Large machinery and engine

★ Low frequency vibration and automatic monitoring

★ Crash recording, fatigue monitoring and prediction

★ Traffic system monitoring, subgrade analysis and high-speed railway fault detection



Specificatio

AKM390 Parameter Unit
Measure range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 1250 625 312.5 250 125 62.5 mv/g
Temp. coefficient of deviation 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Response frequency 500 500 500 500 500 500 Hz
Bandwidth (3DB) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral Vibration Sensitivity Ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0 G Output 2.5V <0.01 <0.01 <0.01 <0.008 <0.008 <0.008 mV
Output voltage 0~5V
Reliability MIL-HDBK-217, Class II
Impact resistance 100g @ 11ms, triaxial (half sine wave)
Recovery time < 1ms (1000g, 1/2 sin 1ms, impact on i-axis)
Vibration 20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis)
Input (VDD _ VSS) 9-36 VDC
Operating current consumption <60mA @ 12 VDC
Protection IP67
Material aerospace aluminum
Weight Product net weight: ≤116g, magnetic base: ≤50g
Size

Product size: L36 × W32 × H24mm

Size of magnetic adsorption base plate: L36 × W32 × H7mm




CONNECTION

THREAD COLOR FUNCTION RED BLACK WHITE GREEN GRAY

DC9~36V

Positive pole of power supply

GND X-axis voltage signal Y-axis voltage signal Z-axis voltage signal





Size
