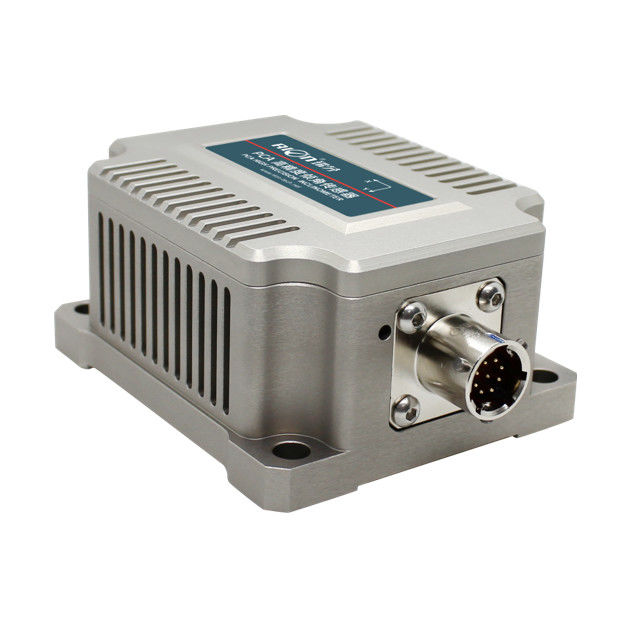

linear angle sensor high precise resolution incline sensor for bridge buiding dam incline safety monitor
▶ INSTALLATION PRECAUTION
Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":
1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.
2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.
| PCA826T | CONDITION | PARAMETERS | UNIT | |||
| Measure range | ±5 | ±10 | ±30 | ±60 | ° | |
| Measure axis | XY | XY | XY | XY | ||
| Resolution | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ° | |
| Measure accuracy | @25℃ | 0.001 | 0.002 | 0.003 | 0.005 | ° |
| Long-term stability | 0.02 | 0.02 | 0.03 | 0.04 | ° | |
| Zero temp coefficient | -40～85℃ | 0.0002 | 0.0002 | 0.0002 | 0.0002 | °/℃ |
| Sensitivity temp coefficient | -40～85℃ | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Power on time | <0.4 | <0.4 | <0.4 | <0.4 | S | |
| Response frequency | 0.04 | 0.04 | 0.04 | 0.04 | S | |
| Output rate | 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set | |||||
| Ouput signal | RS485/RS422 optional | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 hour/time | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector | |||||
| Weight | 385g (exclude cable) | |||||
