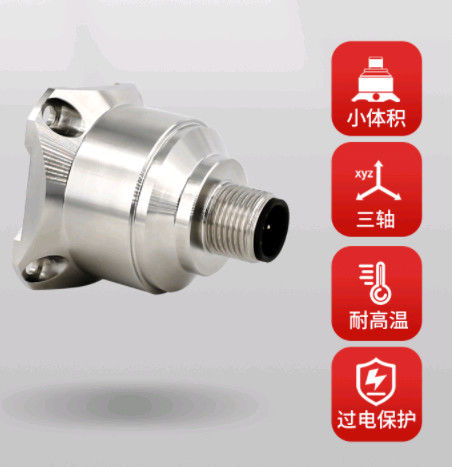

High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: AKF39

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 240

Packaging Details: carton with sponge

Delivery Time: 7 days for sample

Payment Terms: T/T, L/C

Supply Ability: 1000/month

Get Best Price
Contact Now
Specifications
Highlight:

3 Axis Acceleration Vibration Sensor

,

MEMS Acceleration Vibration Sensor

,

3 Axis MEMS Based Accelerometer

Product Name:
Acceleration Sensor
Range:
2/4/8/10/20/40g
Up/Off Power Repeatability:
<2mg
Nonlinearity:
<0.5% FS
Bandwidth (3Db):
500 Hz
Cross-axis Sensitivity:
1%
Product Name:
Acceleration Sensor
Range:
2/4/8/10/20/40g
Up/Off Power Repeatability:
<2mg
Nonlinearity:
<0.5% FS
Bandwidth (3Db):
500 Hz
Cross-axis Sensitivity:
1%
Description
High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output

High sensitive vibratory sensor, MEMS vibration meter, 3 axis analog/digital output acceleration vibration sensor



Download specification click here below :

AKF392 MEMS DIGITAL ACCELEROMETER.pdf

AKF390 MEMS VOLTAGE ACCELEROMETER.pdf

AKF398 MEMS CURRENT ACCELEROMETER.pdf





▶ Application

★ crash record, fatigue monitoring and prediction

★ wind power generation
★ Low frequency vibration and automatic monitoring

★ automobile

★ Large machinery, engine

★ armamentarium

★ bridge

★ road roller



AKF392T ( RS232, RS485, TTL output ,  68 protocol , Modbus Protocol optional ) High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 0 PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z Axial
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(max)
Deviation Temp. Coefficient 0.01 0.01 0.01 0.01 0.01 0.01 %/℃(Typical value)
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.8 <1 <1 <1 <1 % FS(max)
Bandwidth (3Db) 500 500 500 500 500 500 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
68 protocol automatic output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
MODBUS automatic output rate 10Hz,25Hz,50Hz
Output Interface RS232/RS485/TTL
Protocol Rion Standard Protocol And Modbus Rtu Protocol
Input(Vdd_Vss) 9~36 VDC
Current Consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm





High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 1AKF390 (0-5V output )  PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z Axis
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 1250 625 312.5 250 125 62.5 mv/g
Deviation temp. coefficient 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Frequency response 500 500 500 500 500 500 Hz
Bandwidth (3DB) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0g output 2.5V <0.01 <0.01 <0.01 <0.008 <0.008 <0.008 mV
The output voltage 0~5V
Input(Vdd_Vss) 9~36 VDC
Current Consumption <60mA @ 12 VDC
Connector Industrial Standard M12 Connector
Protection grade IP67
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Dimension

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*8.1mm

L-shaped adapter plate size: 36*44*15mm





High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 2AKF398 (4-20mA output)  PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 4 2 1 0.8 0.4 0.2 mA/g
Deviation temp. coefficient 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Frequency response 500 500 500 500 500 500 Hz
Bandwidth (3Db) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0g output 12mA <0.005 <0.005 <0.005 <0.003 <0.003 <0.003 mA
Output current 4~20mA
Input(VDD_VSS) 9~36 VDC
Running current consumption <60mA @ 12 VDC
Connector Industrial Standard M12 Connector
Protection grade IP67
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*8.1mm

L-shaped adapter plate size: 36*44*15mm





MEASUREMENT DIRECTION

High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 3

High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 4

High Sensitive MEMS Acceleration Vibration Sensor 3 Axis Analog / Digital Output 5
