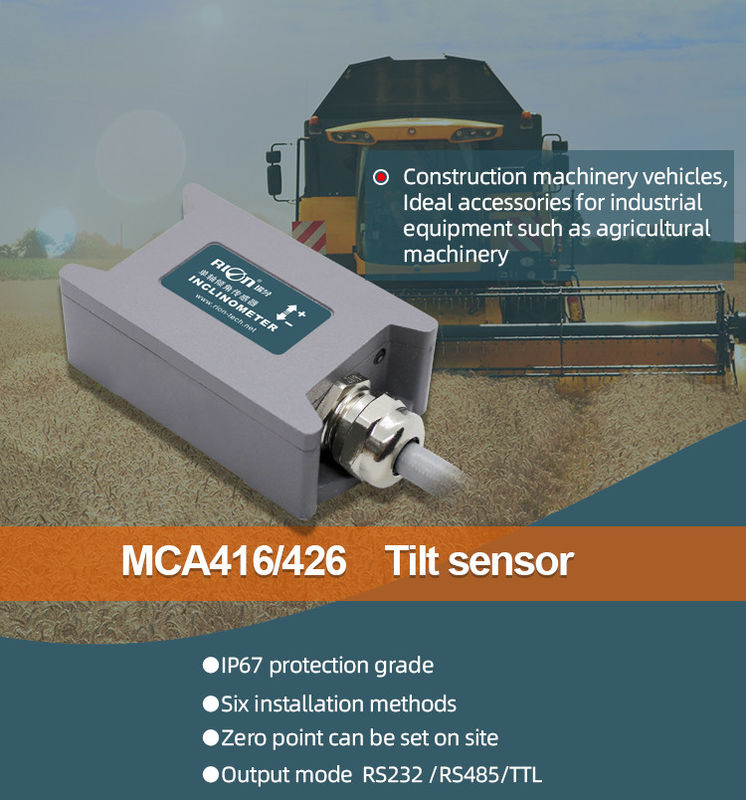

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT

Name: MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: MCA416L
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: RION

Certification: CE

Model Number: MCA416L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 30

Packaging Details: carton box with sponge

Delivery Time: 5 days for samples

Payment Terms: T/T,paypal

Supply Ability: 5000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Gyro Angle Azimuth Sensor, 5G Antenna Azimuth Sensor, Antenna MEMS Gyroscope Sensor


Measure Range:	±80°	Measure Axis:	Single Axis（Y Axis）axis
Resolution:	0.1°	Absolute Accuracy:	0.3°
Zero Temp. Coefficient:	±0.4°/℃	Output Interface:	RS485

Measure Range:	±80°
Measure Axis:	Single Axis（Y Axis）axis
Resolution:	0.1°
Absolute Accuracy:	0.3°
Zero Temp. Coefficient:	±0.4°/℃
Output Interface:	RS485

Description

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT

▶ INTRODUCTION

MCA416L is a low-power MODBUS output single-axis inclinometer developed by RION Technology for the industrial on-site control. it adopts the latest anti-interference platform design, integrates a new type of micro-mechanical sensing unit, wide temperature working performance, superior anti-vibration performance, and long-term stability. Reliable, effective working life of up to 10 years. This product uses the non-contact principle to measure the inclination angle of the object and calculates the real-time inclination angle by measuring the components produced by the earth's gravity through the internal capacitive micromechanical unit. The installation is simple and convenient. It only needs to be fixed on the object to be measured. It is a real industrial-grade product with reliable and stable performance and good scalability, It is suitable for various harsh industrial control environments such as solar photovoltaic tracking control.

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT 0

▶ MAIN FEATURE

★ Single axis tilt angle measurement

★ Range ±80°

★ DC 9～36V power

★ Operation temperature -40～+85℃

★ resolution 0.1°

★ IP67 protection level

★ High anti-vibration performance>2000g

★ Direct lead type interface

★ Output mode MODBUS

▶ APPLICATION

★ Solar photovoltaic tracking control system

★ Concentration tracking control system

★ CSP tracking control system

▶ SPECIFICATIONS

MCA416L	CONDITION	INDEX	UNIT
Measure range	/	±80	°
Measure axis	/	Single axis(Y axis)	axis
Resolution	/	0.1	°
Absolute accuracy	@25℃	0.3	°
Zero temp. coefficient	-40～85°	±0.4	°/℃
Output Interface	RS485
communication protocol	MODBUS
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hour/time
Insulation resistance	≥100 megohm
Anti-impact	100g@11ms,three axes direction(half sinusoid)
Anti-vibration	10grms,10～1000Hz
Waterproof grade	IP67
Housing material	Sand-grinding oxidation of aluminum alloy
Screw	Three M4 screws
Cable	Standard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2
Weight	≤200 (exclude cable)

▶ ELECTRICAL PARAMETERS

PARAMETERS	CONDITIONS	MIN	STANDARD		MAX	UNIT
Supply voltage	Standard	9	12	24	36	V
Working current	No load	/	4	3	/	mA
Sleep current	/	/	0.76	0.46	/	mA
Operating temperature	/	-40	/	/	+85	℃

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT 3

MCA416L HIGH-RELIABILITY SINGLE-AXIS TILT SENSOR WITH MODBUS OUTPUT 4
