Railway Vibration Detection Three Axis Accelerometer Train Monitor

Product Details

Place of Origin: Guangdong, China

Brand Name: RION

Certification: CE, ISO

Model Number: AKF398B-V1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $235.00/Pieces

Packaging Details: 1pcs vibration sensor in each inner box , 50pcs/ctn

Delivery Time: 7 days for samples

Payment Terms: T/T, PAYPAL

Supply Ability: 3000 PCS/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Railway Three Axis Accelerometer

,

Vibration Detection Three Axis Accelerometer

,

Three Axis MEMS Based Accelerometer

Measure Axis:
3 Axes
Output:
4~20mA
Power Supply:
DC 9~36V
Anti-impact:
2000G
Weight:
73.5
Working Temperature:
-40°C To +85°C
Excellent Bias Stability:
Yes
Theory:
Capacitance Sensor
Measure Axis:
3 Axes
Output:
4~20mA
Power Supply:
DC 9~36V
Anti-impact:
2000G
Weight:
73.5
Working Temperature:
-40°C To +85°C
Excellent Bias Stability:
Yes
Theory:
Capacitance Sensor
Description

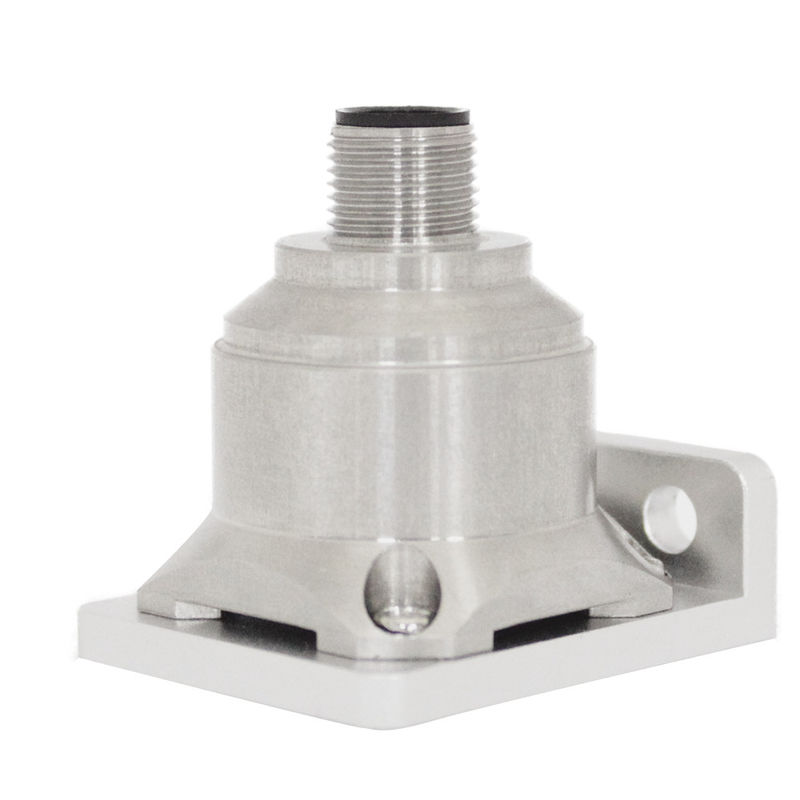

Railway Vibration Detection Three Axis Accelerometer Train Monitor

Rail way vibration detection train railway acceleration monitor



General Description



The AKF392B three axis accelerometer is produced using Swiss patented technology. This acceleration series can be applied to various fields such as vibration testing and impact testing.The product adopts digital interface output, RS232/485/TTL optional, different address codes can be set, and multiple sensors can be used in series for long distances, which is convenient for multi-point measurement and data analysis. The AKF392B is a monocrystal line silicon capacitive sensor, consisting of a micromachined silicon chip,a low-power ASIC for signal conditioning,a microprocessor for storing compensation values and a temperature sensor. This product has low power consumption, Complete calibration system, solid structure and stable output.The new electronic configuration provides solid-state power for reset, and providing full protection for over-current.In the full range,Typical values for long-term stability and bias of the scale factor are less than 0.1%. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.




Application



★ Crash record, fatigue monitoring and prediction ★ Wind power generation
★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
★ Large machinery, engine
★Low frequency vibration and automatic monitoring ★ Medical equipment
★ Bridge ★ Vehicle ★ Road roller



Technical Data:

Parameters
AKF390B
Unit
Range
±2 , ±4,  ±8, ±10, ±20, ±40
g
Bias calibration
<1
mg
Measuring axis
X,Y,Z
axis
Power on/down repeatability
<2
mg (max value)
Bias temperature coefficient [3]
0.01
mg/℃ typical value
Resolution / Threshold (@ 1Hz)
< 1
mg(max)
Nonlinearity
<0.5
% FS(max)
Bandwidth [4]
1000
Hz
Response frequency
500
Hz
Output voltage
4~20mA

Magnetic based
optional

Reliability
MIL-HDBK-217,class 2

Anti-impact
100g@11ms,Triaxial and identical (half sine wave)

Restore time
<1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)

Vibration
20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)

Input(VDD_VSS)
9-36 VDC

Operating current consumption
<60mA @ 12 VDC

Connector
Industry standard M12 connector

Weight
73.5g

Size
Magnetic adsorption installation size:34.3*34.3*43.2mm,
Screw positioning installation size:34.3*34.3*38.5mm










        Product measurement direction



Railway Vibration Detection Three Axis Accelerometer Train Monitor 0





Screw positioning installation dimension drawing:

Railway Vibration Detection Three Axis Accelerometer Train Monitor 2
Railway Vibration Detection Three Axis Accelerometer Train Monitor 4
Railway Vibration Detection Three Axis Accelerometer Train Monitor 6
Railway Vibration Detection Three Axis Accelerometer Train Monitor 8





Electrical connection:


Color
Function
BLACK
WHITE
BLUE
BROWN
GRAY







GND
Power GND
X-axis current signal
Y-axis current signal
Vcc 9~36V
Power supply positive
Z-axis current signal






Railway Vibration Detection Three Axis Accelerometer Train Monitor 10
